Toyota Corolla Cross: Installation
INSTALLATION
CAUTION / NOTICE / HINT
COMPONENTS (INSTALLATION)
|
Procedure |
Part Name Code |
.png) |
.png) |
.png) |
|
|---|---|---|---|---|---|
|

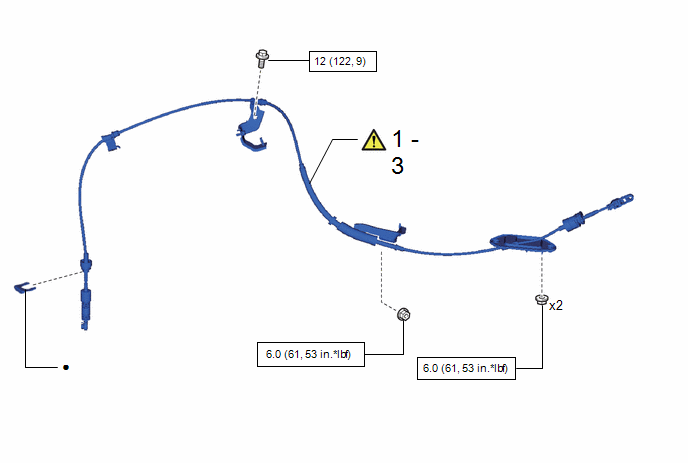

1 |
TRANSMISSION CONTROL CABLE ASSEMBLY |
33820B |
- |
- |
- |
|
2 |
CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY (Transaxle Side) |
33820B |
|
- |
- |
|
3 |
CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY (Shift Lever Side) |
33820B |
|
- |
- |
.png) |
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
|
Procedure |
Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
|

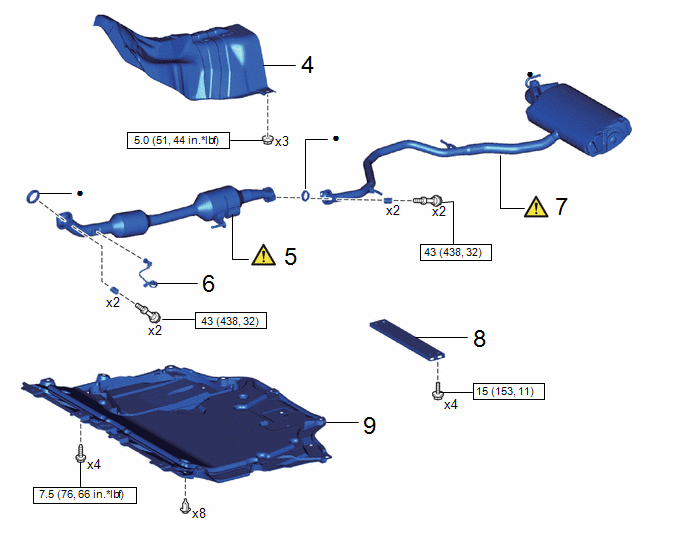

4 |
FRONT NO. 1 FLOOR HEAT INSULATOR |
58151 |
- |
- |
- |
|
5 |
FRONT EXHAUST PIPE ASSEMBLY |
17410 |
|
- |
- |
|
6 |
NO. 2 AIR FUEL RATIO SENSOR |
89467B |
- |
- |
- |
|
7 |
TAIL EXHAUST PIPE ASSEMBLY |
17430 |
|
- |
- |
|
8 |
FRONT FLOOR CENTER BRACE |
57501C |
- |
- |
- |
|
9 |
NO. 1 ENGINE UNDER COVER ASSEMBLY |
51410 |
- |
- |
- |
|
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
|
Procedure |
Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
|

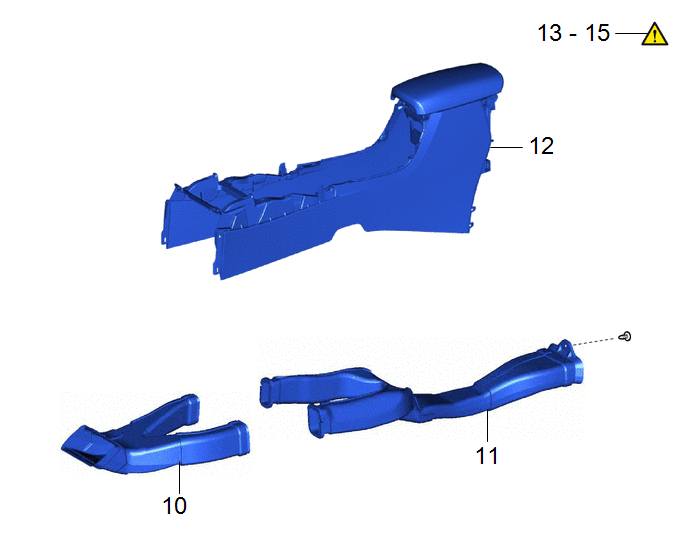

10 |
NO. 1 CONSOLE BOX DUCT |
58861B |
- |
- |
- |
|
11 |
NO. 2 CONSOLE BOX DUCT |
58862B |
- |
- |
- |
|
12 |
CONSOLE BOX ASSEMBLY |
58810J |
- |
- |
- |
|
13 |
INSPECT SHIFT LEVER POSITION |
- |
|
- |
- |
|
14 |
ADJUST SHIFT LEVER POSITION |
- |
|
- |
- |
|
15 |
INSPECT FOR EXHAUST GAS LEAK |
- |
|
- |
- |
PROCEDURE
1. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY
Torque:
6.0 N·m {61 kgf·cm, 53 in·lbf}
2. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY (Transaxle Side)
|
|
Click here |
3. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY (Shift Lever Side)
|
|
Click here |
4. INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR
Torque:
5.0 N·m {51 kgf·cm, 44 in·lbf}
5. INSTALL FRONT EXHAUST PIPE ASSEMBLY
|
|
Click here |
6. INSTALL NO. 2 AIR FUEL RATIO SENSOR
Click here .gif)
7. INSTALL FRONT EXHAUST PIPE ASSEMBLY
|
|
Click here |
8. INSTALL FRONT FLOOR CENTER BRACE
Click here
9. INSTALL NO. 1 ENGINE UNDER COVER ASSEMBLY
Click here
10. INSTALL NO. 1 CONSOLE BOX DUCT
Click here
11. INSTALL NO. 2 CONSOLE BOX DUCT
Click here
12. INSTALL CONSOLE BOX ASSEMBLY
Click here
13. INSPECT SHIFT LEVER POSITION
Click here
14. ADJUST SHIFT LEVER POSITION
Click here
15. INSPECT FOR EXHAUST GAS LEAK
Click here
