Toyota Corolla Cross: Operation not Accepted Even If Air Conditioning Switch is Operated

Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Interior / Heating / Air Conditioning / Air Conditioning System (for Gasoline Model With Manual Air Conditioning System) / Operation not Accepted Even If Air Conditioning Switch is Operated

DESCRIPTION

If the air conditioning system cannot be operated using the air conditioning control assembly, the following factors may be the cause.

Symptom

Factor

Air conditioning system cannot be operated using air conditioning control assembly

  • (With the exception of the switch indicators, no inputs are reflected when other switches operated)
  • LIN communication malfunction between air conditioning amplifier assembly and air conditioning control assembly
  • Short to +B or ground in air conditioning amplifier assembly circuit
  • Air conditioning amplifier assembly malfunction
  • Air conditioning control assembly malfunction
  • Harness or connector

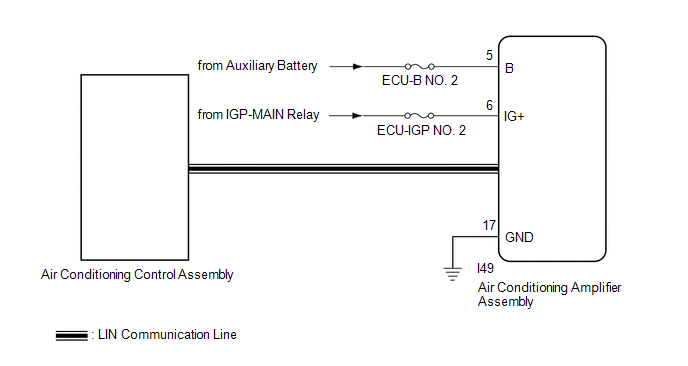

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

Inspect the fuses for circuits related to this system before performing the following procedure.

PROCEDURE

1.

CHECK FOR DTC

(a) Check for DTCs.

Body Electrical > Air Conditioner > Trouble Codes

Result

Proceed to

B14B287 is not output

A

B14B287 is output

B
B

GO TO DTC B14B287

A

2.

CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER ASSEMBLY - POWER SOURCE AND BODY GROUND)

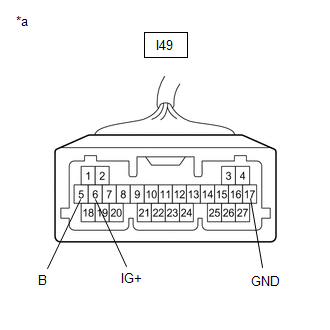

*a

Front view of wire harness connector

(to Air Conditioning Amplifier Assembly)

(a) Disconnect the I49 air conditioning amplifier assembly connector.

(b) Measure the voltage and resistance according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Switch Condition

Specified Condition

I49-5 (B) - Body ground

Ignition switch off

11 to 14 V

I49-6 (IG+) - Body ground

Ignition switch ON

11 to 14 V

Ignition switch off

Below 1 V

Standard Resistance:

Tester Connection

Condition

Specified Condition

I49-17 (GND) - Body ground

Always

Below 1 Ω
OK

REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
