ON-VEHICLE INSPECTION

PROCEDURE

1. INSPECT WASHER NOZZLE SUB-ASSEMBLY

(a) Operate the washer nozzle sub-assemblies and check the position that the washer fluid contacts the windshield.

Standard:

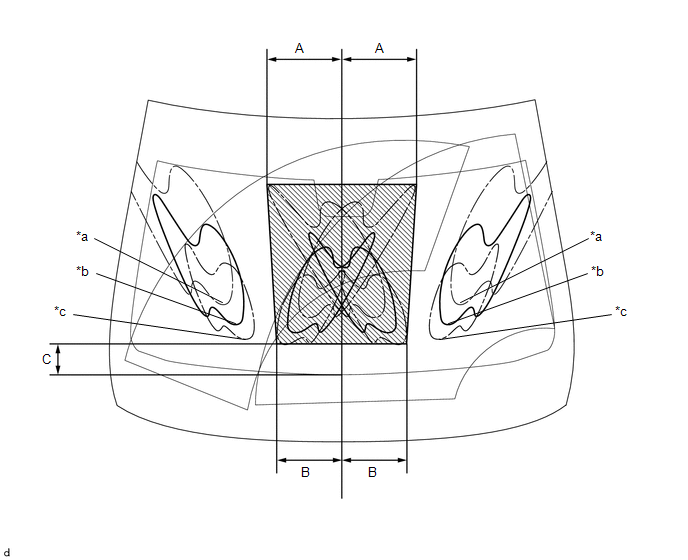

Washer fluid contacts the windshield in the areas shown in the illustration.

*a

Upper Limit

*b

Standard

*c

Lower Limit

-

-

Measurement

-

-

Standard Measurement:

Area

Measurement

Area

Measurement

A

224.9 mm (8.85 in.)

B

196 mm (7.72 in.)

C

92.6 mm (3.65 in.)

-

-

If the result is not as specified, replace the washer nozzle sub-assembly.
