Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Exterior / Wiper / Washer / Washer Nozzle (for Front Side) / Adjustment

ADJUSTMENT

PROCEDURE

1. REMOVE WASHER NOZZLE SUB-ASSEMBLY

Click here

2. ADJUST WASHER NOZZLE SUB-ASSEMBLY

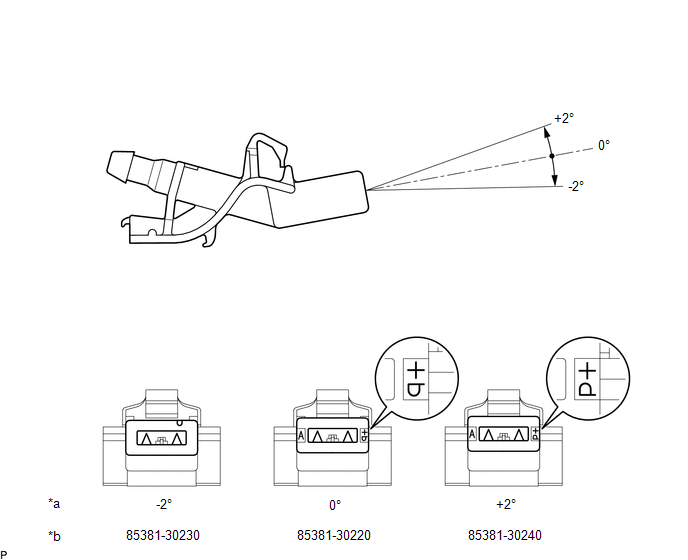

(a) Select a washer nozzle sub-assembly so that the position the washer fluid hits the windshield will be within the standard area. Replace the washer nozzle sub-assembly with the selected one.

*a

Washer Fluid Spray Angle

*b

Part Number

3. INSTALL WASHER NOZZLE SUB-ASSEMBLY

Click here
