Toyota Corolla Cross: Motor Electronics Coolant Pump "A" Component Internal Failure (P0C7396)

Toyota Corolla Cross (2022-2024) Service Manual / Engine & Hybrid System / Hybrid / Battery Control / Hybrid Control System / Motor Electronics Coolant Pump "A" Component Internal Failure (P0C7396)

DTC SUMMARY

MALFUNCTION DESCRIPTION

This DTC is stored when the inverter water pump assembly is malfunctioning. The cause of this malfunction may be one of the following:

Inverter water pump assembly malfunction
  • Inverter water pump assembly internal malfunction
  • Open or short in wire harness
  • Improperly connected connector
Hybrid cooling system malfunction
  • Foreign matter in inverter water pump assembly
  • Hybrid cooling system coolant is frozen

HINT:

If this DTC is stored, the driving torque may be restricted.

DESCRIPTION

The inverter water pump assembly transmits rotation speed information to the hybrid vehicle control ECU. The hybrid vehicle control ECU monitors the speed and detects malfunctions.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Warning Indicate

Note

P0C7396

Motor Electronics Coolant Pump "A" Component Internal Failure

The inverter water pump assembly revolution speed is abnormally high or low (or stopped) for 1 minute or more.

(1 trip detection logic)

  • Inverter cooling system
  • Wire harness or connector
  • Inverter water pump assembly
  • Hybrid vehicle control ECU

Comes on

Master Warning:

Comes on

SAE Code:

P0C73

HINT:

The inverter water pump assembly operates when the ignition switch is ON (READY).

MONITOR DESCRIPTION

The hybrid vehicle control ECU monitors speed of the inverter water pump assembly. If there is an abnormality in speed, the hybrid vehicle control ECU will illuminate the MIL and store a DTC.

MONITOR STRATEGY

Related DTCs

P0C73 (INF P0C7396): Motor Electronics Coolant Pump "A" malfunction

Required sensors/components

Inverter water pump assembly

Frequency of operation

Continuous

Duration

TMC's intellectual property

MIL operation

1 driving cycle

Sequence of operation

None

TYPICAL ENABLING CONDITIONS

The monitor will run whenever the following DTCs are not stored

TMC's intellectual property

Other conditions belong to TMC's intellectual property

-

TYPICAL MALFUNCTION THRESHOLDS

TMC's intellectual property

-

COMPONENT OPERATING RANGE

Hybrid vehicle control ECU

DTC P0C73 (INF P0C7396) is not detected

CONFIRMATION DRIVING PATTERN

HINT:

  • After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

    Click here

  • When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

    Click here

  1. Connect the GTS to the DLC3.
  2. Turn the ignition switch to ON and turn the GTS on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
  4. Turn the ignition switch off and wait for 2 minutes or more.
  5. Turn the ignition switch to ON and turn the GTS on.
  6. Turn the ignition switch to ON (READY). [*1]
  7. Wait for 2 minutes or more. [*2]

    HINT:

    [*1] to [*2] : Normal judgment procedure.

    The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

  8. Enter the following menus: Powertrain / Hybrid Control / Utility / All Readiness.
  9. Check the DTC judgment result.

    HINT:

    • If the judgment result shows NORMAL, the system is normal.
    • If the judgment result shows ABNORMAL, the system has a malfunction.
    • If the judgment result shows INCOMPLETE, perform the normal judgment procedure again.

WIRING DIAGRAM

Refer to the wiring diagram for Cooling System.

Click here

CAUTION / NOTICE / HINT

NOTICE:

If this vehicle is jump started, etc. and excessive voltage is applied to the auxiliary battery, the inverter water pump assembly may suspend control as a self-protection function and store DTCs.

(When the auxiliary battery voltage returns to normal, the inverter water pump assembly will resume normal operation. In this case it is not necessary to replace the inverter water pump assembly.)

HINT:

P0C7396 may be output as a result of the malfunction indicated by the DTCs in table below.

  1. The chart above is listed in inspection order of priority.
  2. Check DTCs that are output at the same time by following the listed order. (The main cause of the malfunction can be determined without performing unnecessary inspections.)

Malfunction Content

Relevant DTC

Microcomputer malfunction

P060647

Hybrid/EV Powertrain Control Module Processor Watchdog / Safety MCU Failure

P06881F

ECM/PCM Power Relay Sense Circuit Intermittent

Sensor and actuator circuit malfunction

P314A31

Motor Electronics Coolant Pump "A" No Signal

PROCEDURE

1.

INSPECT INVERTER WATER PUMP ASSEMBLY

NOTICE:

Be sure to perform the inspection with the auxiliary battery voltage at 11 V or more.

HINT:

  • When the auxiliary battery voltage is low, the inverter water pump assembly may not operate.
  • When the inverter water pump assembly signal line (SWP - IWP) is open or its connection is faulty, the inverter water pump assembly is operated forcibly.

(a) According to the display on the GTS, read the Data List.

Powertrain > Hybrid Control > Data List

Tester Display

Inverter Water Pump Revolution

OK:

Tester Display

Condition

Specified Condition

Inverter Water Pump Revolution

Ignition switch ON

200 rpm or less

HINT:

When the inverter water pump assembly is not operating, the Data List item "Inverter Water Pump Revolution" displays a value 200 rpm or less.

(b) Turn the ignition switch off.

NG

GO TO STEP 5

OK

2.

CLEAR DTC

(a) Read and record the DTCs and Freeze Frame Data.

Powertrain > Hybrid Control > Trouble Codes

(b) Clear the DTCs and Freeze Frame Data.

Powertrain > Hybrid Control > Clear DTCs

(c) Turn the ignition switch off and wait for 2 minutes or more.

NEXT

3.

PERFORM ACTIVE TEST USING GTS (ACTIVATE THE INVERTER WATER PUMP)

NOTICE:

  • Make sure that the HV coolant level is above the low line of the inverter reserve tank.
  • Be sure to perform the inspection with the auxiliary battery voltage at 11 V or more.

HINT:

When the auxiliary battery voltage is low, the inverter water pump assembly may not operate.

(a) According to the display on the GTS, perform the Active Test "Activate the Inverter Water Pump" and, check the value of the Data List item "Inverter Water Pump Revolution".

Powertrain > Hybrid Control > Active Test

Active Test Display

Activate the Inverter Water Pump

Data List Display

Inverter Water Pump Revolution

OK:

Tester Display

Condition

Specified Condition

Inverter Water Pump Revolution

Ignition switch ON

During Active Test

3000 to 9500 rpm

HINT:

  • Perform the Active Test with the inverter coolant temperature between -15 and 65°C (5 to 149°F).
  • When the inverter water pump assembly is not operating, the Data List item "Inverter Water Pump Revolution" displays a value 200 rpm or less.

(b) Turn the ignition switch off.

NG

GO TO STEP 5

OK

4.

CHECK HV COOLANT (CHECK FOR CONDITIONS THAT MAY HAVE CAUSED FREEZING)

Click here

Result

Proceed to

Ambient Temperature value is above freezing temperature of the HV coolant.

A

Ambient Temperature value is below freezing temperature of the HV coolant.

B

A

GO TO STEP 11

B

REPLACE HV COOLANT

5.

CHECK CONNECTOR CONNECTION CONDITION (HYBRID VEHICLE CONTROL ECU CONNECTOR)

Click here

NG

CONNECT SECURELY

OK

6.

CHECK CONNECTOR CONNECTION CONDITION (INVERTER WATER PUMP ASSEMBLY CONNECTOR)

Click here

NG

CONNECT SECURELY

OK

7.

CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - INVERTER WATER PUMP ASSEMBLY)

(a) Disconnect the hybrid vehicle control ECU connector.

(b) Disconnect the inverter water pump assembly connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance (Check for Open):

Tester Connection

Condition

Specified Condition

A192-32 (IWP) - A184-3 (SWP)

Ignition switch off

Below 1 Ω

Standard Resistance (Check for Short):

Tester Connection

Condition

Specified Condition

A192-32 (IWP) or A184-3 (SWP) - Body ground and other terminals

Ignition switch off

10 kΩ or higher

HINT:

Check the condition (looseness, deterioration, etc.) of the wire to body ground for the inverter water pump assembly.

(d) Reconnect the inverter water pump assembly connector.

(e) Reconnect the hybrid vehicle control ECU connector.

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

8.

READ VALUE USING GTS (INVERTER WATER PUMP REVOLUTION)

NOTICE:

Be sure to perform the inspection with the auxiliary battery voltage at 11 V or more.

HINT:

When the auxiliary battery voltage is low, the inverter water pump assembly may not operate.

(a) Remove the INV W/PMP NO. 2 fuse from No. 1 engine room relay block and No. 1 junction block assembly.

(b) According to the display on the GTS, read the Data List.

Powertrain > Hybrid Control > Data List

Tester Display

Inverter Water Pump Revolution

OK:

Tester Display

Condition

Specified Condition

Inverter Water Pump Revolution

Ignition switch ON

200 rpm or less

(c) Turn the ignition switch off.

(d) Install the INV W/PMP NO. 2 fuse.

NG

REPLACE HYBRID VEHICLE CONTROL ECU

OK

9.

CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - INVERTER WATER PUMP ASSEMBLY)

(a) Disconnect the hybrid vehicle control ECU connector.

(b) Turn the ignition switch to ON.

(c) Measure the voltage according to the value(s) in the table below.

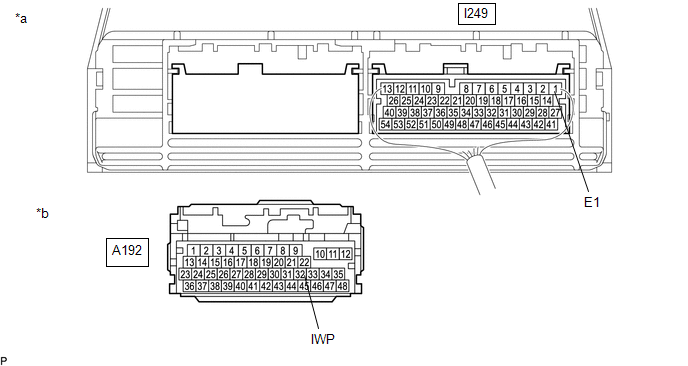

*a

Component with harness connected

(Hybrid Vehicle Control ECU)

*b

Front view of wire harness connector

(to Hybrid Vehicle Control ECU)

Standard Voltage:

Tester Connection

Condition

Specified Condition

A192-32 (IWP) - I249-1 (E1)

Ignition switch ON

11 to 14 V

NOTICE:

Make sure to check for and clear DTCs after performing this inspection.

(d) Turn the ignition switch off.

(e) Reconnect the hybrid vehicle control ECU connector.

NG

GO TO STEP 11

OK

10.

CHECK HYBRID VEHICLE CONTROL ECU (CHECK WAVEFORM)

(a) Connect an oscilloscope between the hybrid vehicle control ECU terminals specified in the table below.

(b) Turn the ignition switch to ON.

(c) Check the waveform while turning the ignition switch to ON.

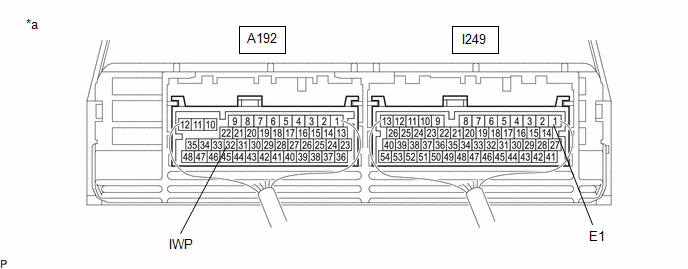

*a

Component with harness connected

(Hybrid Vehicle Control ECU)

-

-

Item

Content

Terminal

A192-32 (IWP) - I249-1 (E1)

Equipment Setting

5 V/DIV., 50 ms./DIV.

Condition

Ignition switch ON

OK:

Waveform duty ratio is between 3% and 9%.

(d) Turn the ignition switch off.

NG

REPLACE HYBRID VEHICLE CONTROL ECU

OK

11.

REPLACE INVERTER WATER PUMP ASSEMBLY

Click here

NEXT

12.

ADD HV COOLANT AND PERFORM AIR BLEEDING

(a) After replacing the inverter water pump assembly, add HV coolant and perform air bleeding.

Click here

NEXT

END
