Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

Procedure

Part Name Code

1

LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

73900

-

-

2

LOWER CENTER INSTRUMENT PANEL FINISH PANEL

55434F

-

-

-

3

LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

55432D

-

-

-

4

HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

53601

-

-

-

5

NO. 1 INSTRUMENT SIDE PANEL

55317E

-

-

-

6

FRONT CONSOLE UPPER PANEL GARNISH

58831A

-

-

-

7

MOBILE WIRELESS CHARGER CRADLE ASSEMBLY

-

-

-

-

8

NO. 2 BOX BOTTOM MAT

58917

-

-

-

9

NO. 1 CONSOLE UPPER PANEL GARNISH

58833B

-

-

-

10

NO. 2 CONSOLE UPPER PANEL GARNISH

58834B

-

-

-

11

NO. 2 FRONT CONSOLE BOX INSERT

58817A

-

-

-

12

NO. 1 FRONT CONSOLE BOX INSERT

58816D

-

-

-

13

NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

55606

-

-

-

14

COWL SIDE TRIM SUB-ASSEMBLY LH

62112A

-

-

-

15

FRONT DOOR SCUFF PLATE LH

67914B

-

-

-

16

CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

-

-

-

-

17

INSPECT SRS WARNING LIGHT

-

-

-

18

INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

-

-

-

*A

w/ Wireless Charger

*B

w/o Wireless Charger

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

-

-

CAUTION / NOTICE / HINT

PROCEDURE

1. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

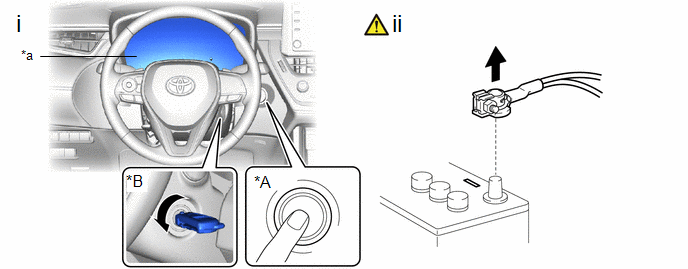

*A

w/ Smart Key System

*B

w/o Smart Key System

*a

Illumination off

-

-

(1) Check that the ignition switch is off.

(2) Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:

  • Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
  • If the airbag deploys for any reason, it may cause a serious accident.

(1) Engage the hooks and claws to install the lower No. 1 instrument panel airbag assembly.

(2) Install the 2 bolts.

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}

NOTICE:

Confirm that the lower No. 1 instrument panel airbag assembly is installed securely without any excessive gaps and is not protruding outward.

(3) Connect the airbag connector.

NOTICE:

When connecting any airbag connector, take care not to damage the airbag wire harness.

HINT:

Refer to How to Connect or Disconnect Airbag Connector:

Click here

2. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL

3. INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

4. CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

5. INSTALL NO. 1 INSTRUMENT SIDE PANEL

6. INSTALL FRONT CONSOLE UPPER PANEL GARNISH

7. INSTALL MOBILE WIRELESS CHARGER CRADLE ASSEMBLY (w/ Wireless Charger)

8. INSTALL NO. 2 BOX BOTTOM MAT (w/o Wireless Charger)

9. INSTALL NO. 1 CONSOLE UPPER PANEL GARNISH

10. INSTALL NO. 2 CONSOLE UPPER PANEL GARNISH

11. INSTALL NO. 2 FRONT CONSOLE BOX INSERT

12. INSTALL NO. 1 FRONT CONSOLE BOX INSERT

13. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

14. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH

15. INSTALL FRONT DOOR SCUFF PLATE LH

16. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

  • for Gasoline Model

    Click here

  • for HEV Model

    Click here

17. INSPECT SRS WARNING LIGHT

Click here

18. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click here
