Toyota Corolla Cross: Installation
INSTALLATION
CAUTION / NOTICE / HINT

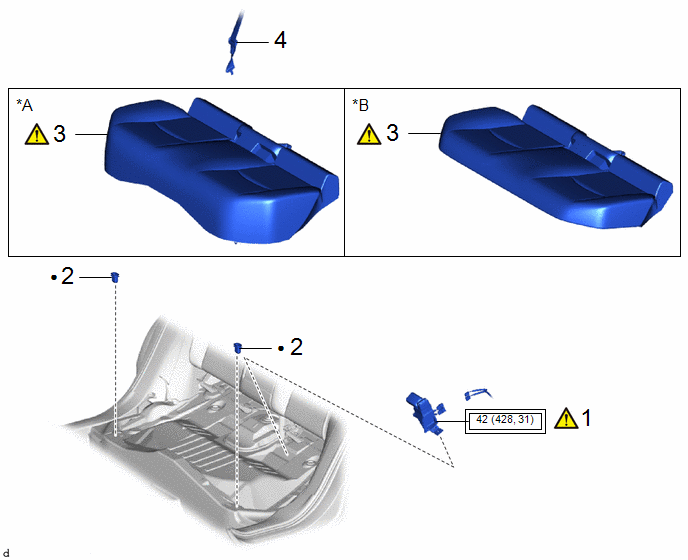

COMPONENTS (INSTALLATION)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | REAR SEAT INNER WITH CENTER BELT ASSEMBLY |
73480 |
|
- | - |
|
2 | REAR SEAT CUSHION LOCK HOOK |
72693 | - |
- | - |
|
3 | BENCH TYPE REAR SEAT CUSHION ASSEMBLY |
- |
|
- | - |
|
4 | REAR CENTER SEAT OUTER BELT ASSEMBLY |
73350C | - |
- | - |
.gif)
|
*A | for Gasoline Model |
*B | for HEV Model |
.png) |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
● | Non-reusable part |
PROCEDURE

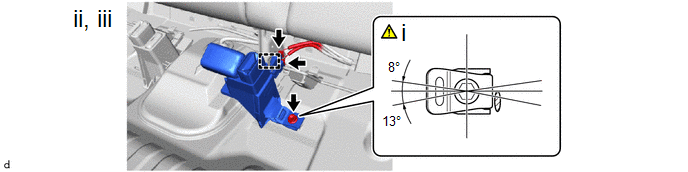

1. INSTALL REAR SEAT INNER WITH CENTER BELT ASSEMBLY
.png) |
Protruding Part | - |
- |
(1) Install the rear seat inner assembly with the bolt.
Torque:
42 N·m {428 kgf·cm, 31 ft·lbf}
NOTICE:
Do not allow the anchor part of the rear seat inner belt assembly to overlap the protruding parts of the vehicle body.
(2) Engage the wire harness clamp.
(3) Connect the connector.
2. INSTALL REAR SEAT CUSHION LOCK HOOK
3. INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY
|
|
|
4. CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY
