Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Interior / Seat Belt / Rear Seat Inner Belt Assembly (for Rh Side) / Inspection

INSPECTION

PROCEDURE

1. INSPECT REAR SEAT INNER BELT ASSEMBLY

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

O84-5(RBR+) - O84-4(RBR-)

Rear RH seat belt unfastened

Below 1 Ω

Rear RH seat belt fastened

10 kΩ or higher

If the result is not as specified, replace the rear seat inner belt assembly.

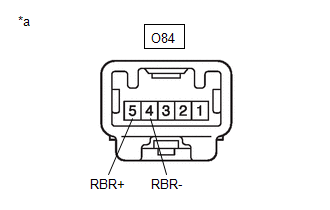

*a

Component without harness connected

(Rear Seat Inner Belt Assembly)
