Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

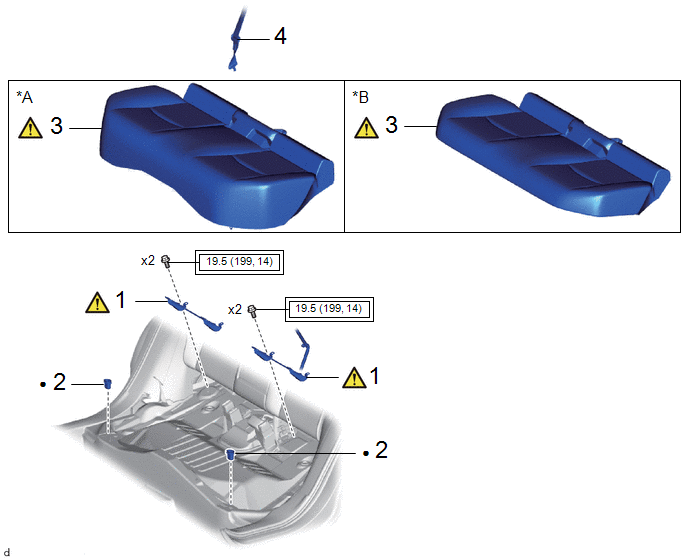

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY

73705C

-

-

2

REAR SEAT CUSHION LOCK HOOK

72693

-

-

-

3

BENCH TYPE REAR SEAT CUSHION ASSEMBLY

-

-

-

4

REAR CENTER SEAT OUTER BELT ASSEMBLY

73350C

-

-

-

*A

for Gasoline Model

*B

for HEV Model

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

Non-reusable part

PROCEDURE

1. INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY

(a) for RH Side:

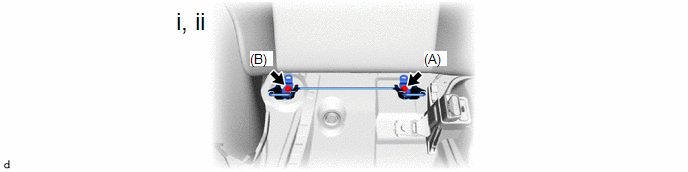

(1) Temporarily install the child restraint seat anchor bracket sub-assembly RH with the 2 bolts.

(2) Fully tighten the bolt (A) and then the bolt (B) to install the child restraint seat anchor bracket sub-assembly RH.

Torque:

19.5 N·m {199 kgf·cm, 14 ft·lbf}

(b) for LH Side:

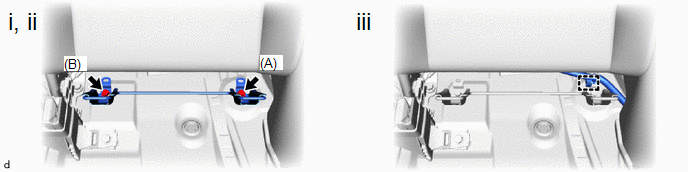

(1) Temporarily install the child restraint seat anchor bracket sub-assembly LH with the 2 bolts.

(2) Fully tighten the bolt (A) and then the bolt (B) to install the child restraint seat anchor bracket sub-assembly LH.

Torque:

19.5 N·m {199 kgf·cm, 14 ft·lbf}

(3) Engage the clamp.

2. INSTALL REAR SEAT CUSHION LOCK HOOK

3. INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY

  • for Gasoline Model:

    Click here

  • for HEV Model:

    Click here

4. CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY
