Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

COMPONENTS (INSTALLATION)

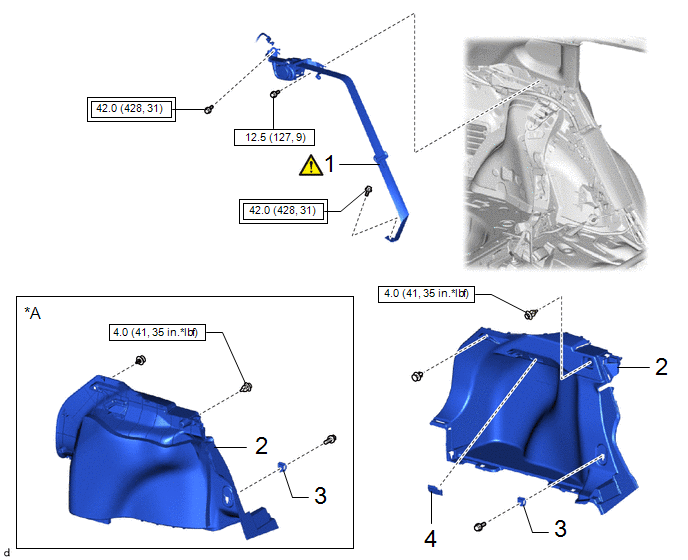

Procedure

Part Name Code

1

REAR SEAT OUTER BELT ASSEMBLY

73370E

-

-

2

DECK TRIM SIDE PANEL ASSEMBLY

64740C

-

-

-

3

LUGGAGE HOLD BELT STRIKER ASSEMBLY

58460D

-

-

-

4

NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

81330

-

-

-

*A

for RH Side

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

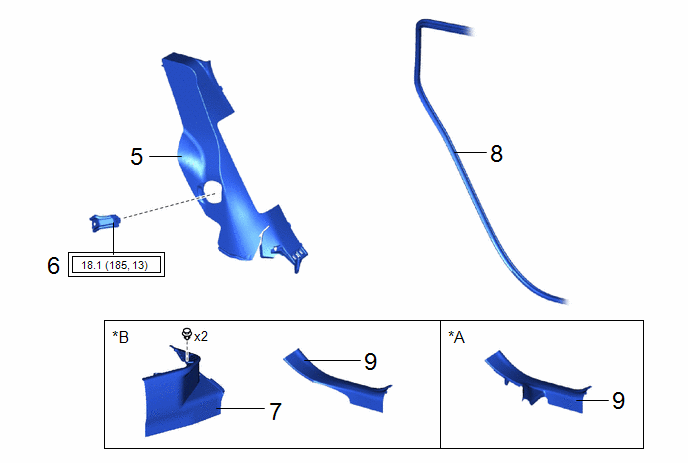

Procedure

Part Name Code

5

REAR SEAT SIDE GARNISH

62552F

-

-

-

6

REAR SEATBACK HINGE SUB-ASSEMBLY

71304C

-

-

-

7

REAR UNDER SIDE COVER LH

76974E

-

-

-

8

REAR DOOR OPENING TRIM WEATHERSTRIP

62332A

-

-

-

9

REAR DOOR SCUFF PLATE

67918A

-

-

-

*A

for Gasoline Model

*B

for HEV Model

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

-

-

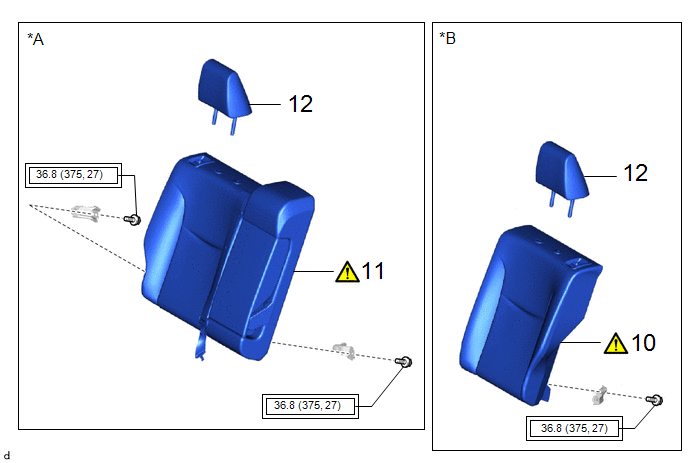

Procedure

Part Name Code

10

REAR SEATBACK ASSEMBLY LH

-

-

-

11

REAR SEATBACK ASSEMBLY RH

-

-

-

12

REAR SEAT CENTER HEADREST ASSEMBLY

71940A

-

-

-

*A

for RH Side

*B

for LH Side

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

-

-

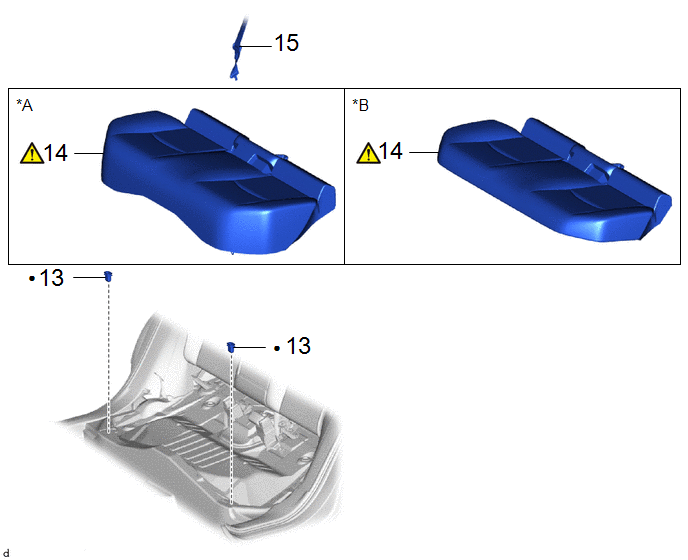

Procedure

Part Name Code

13

REAR SEAT CUSHION LOCK HOOK

72693

-

-

-

14

BENCH TYPE REAR SEAT CUSHION ASSEMBLY

-

-

-

15

REAR CENTER SEAT OUTER BELT

73350C

-

-

-

*A

for Gasoline Model

*B

for HEV Model

Non-reusable part

-

-

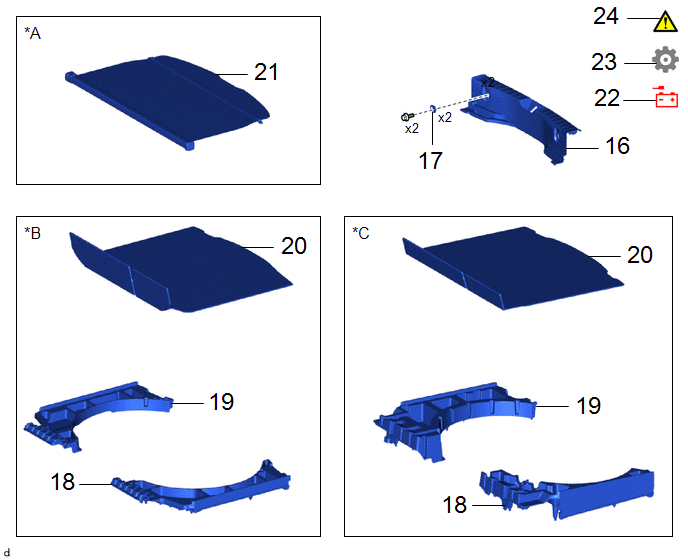

Procedure

Part Name Code

16

REAR DECK TRIM COVER

64716D

-

-

-

17

LUGGAGE HOLD BELT STRIKER ASSEMBLY

58460D

-

-

-

18

DECK FLOOR BOX RH

64995

-

-

-

19

DECK FLOOR BOX LH

64997

-

-

-

20

DECK BOARD ASSEMBLY

58410B

-

-

-

21

TONNEAU COVER ASSEMBLY

64910J

-

-

-

22

CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

-

-

-

-

23

INSPECT SRS WARNING LIGHT

-

-

-

24

INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

-

-

-

*A

w/ Tonneau Cover

*B

for Full Size Spare Tire

*C

for Compact Spare Tire

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

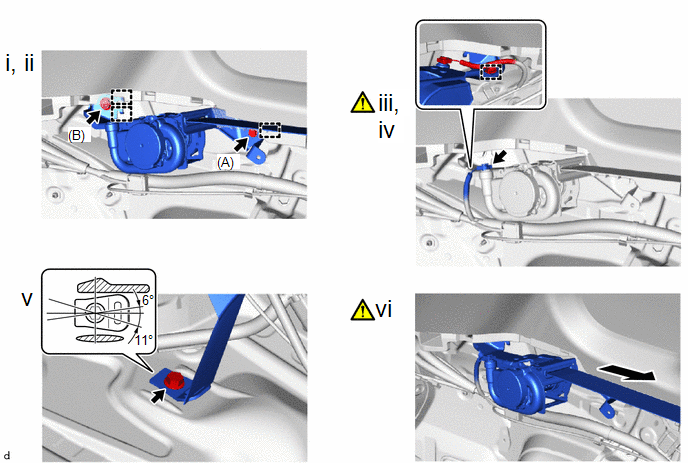

1. INSTALL REAR SEAT OUTER BELT ASSEMBLY

Protruding Part

-

-

(1) Engage the 3 guides and temporarily install the rear seat outer belt assembly with the 2 bolts.

(2) Fully tighten the bolt (A) and then the bolt (B) to install the rear seat outer belt assembly.

Torque:

Bolt A :

12.5 N·m {127 kgf·cm, 9 ft·lbf}

Bolt B :

42 N·m {428 kgf·cm, 31 ft·lbf}

(3) Connect the pretensioner connector.

HINT:

Refer to How to Connect or Disconnect Airbag Connector:

Click here

(4) Engage the clamp.

(5) Install the floor anchor of the rear seat outer belt assembly with the bolt.

Torque:

42 N·m {428 kgf·cm, 31 ft·lbf}

NOTICE:

Do not allow the anchor part of the rear seat outer belt assembly to overlap the protruding parts of the floor panel.

(6) Check that the ELR locks.

  1. With the rear seat outer belt assembly installed to the vehicle, check that the belt locks when it is pulled out quickly.

NOTICE:

This check should be performed with the rear seat outer belt assembly installed to the vehicle.

2. INSTALL DECK TRIM SIDE PANEL ASSEMBLY

Click here

3. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY

4. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY (for LH Side)

5. INSTALL REAR SEAT SIDE GARNISH

6. INSTALL REAR SEAT BACK HINGE SUB-ASSEMBLY

Click here

7. INSTALL REAR UNDER SIDE COVER LH (for HEV Model)

8. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP

9. INSTALL REAR UNDER SIDE COVER

10. INSTALL REAR DOOR SCUFF PLATE

11. INSTALL REAR SEATBACK ASSEMBLY LH (for LH Side)

Click here

12. INSTALL REAR SEATBACK ASSEMBLY RH (for RH Side)

Click here

13. INSTALL REAR SEAT HEADREST ASSEMBLY

14. INSTALL REAR SEAT CUSHION LOCK HOOK

15. INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY

  • for Gasoline Model:

    Click here

  • for HEV Model:

    Click here

16. INSTALL REAR CENTER SEAT OUTER BELT ASSEMBLY

17. INSTALL REAR DECK TRIM COVER

18. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY

19. INSTALL DECK FLOOR BOX RH

20. INSTALL DECK FLOOR BOX LH

21. INSTALL DECK BOARD ASSEMBLY

22. INSTALL TONNEAU COVER ASSEMBLY

23. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

  • for Gasoline Model

    Click here

  • for HEV Model

    Click here

24. INSPECT SRS WARNING LIGHT

25. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click here
