Toyota Corolla Cross (2022-2025) Service Manual / Engine & Hybrid System / M20a-fks (engine Mechanical) / Drive Belt

On-vehicle Inspection

ON-VEHICLE INSPECTION

PROCEDURE

1. INSPECT V-RIBBED BELT

(a) Check the V-ribbed belt for wear, cracks or other signs of damage.

HINT:

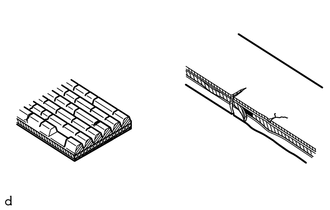

If any of the following defects is found, replace the V-ribbed belt.

  • The V-ribbed belt is cracked.
  • The V-ribbed belt is worn out to the extent that the cords are exposed.
  • The V-ribbed belt has chunks missing from the ribs.

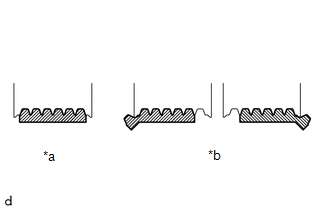

(b) Check that the V-ribbed belt fits properly in the ribbed grooves.

HINT:

Check with your hand to confirm that the V-ribbed belt has not slipped out of the grooves on the bottom of the pulley. If it has slipped out, replace the V-ribbed belt. Install a new V-ribbed belt correctly.

*a

Correct

*b

Incorrect
