Toyota Corolla Cross: Installation
INSTALLATION
CAUTION / NOTICE / HINT

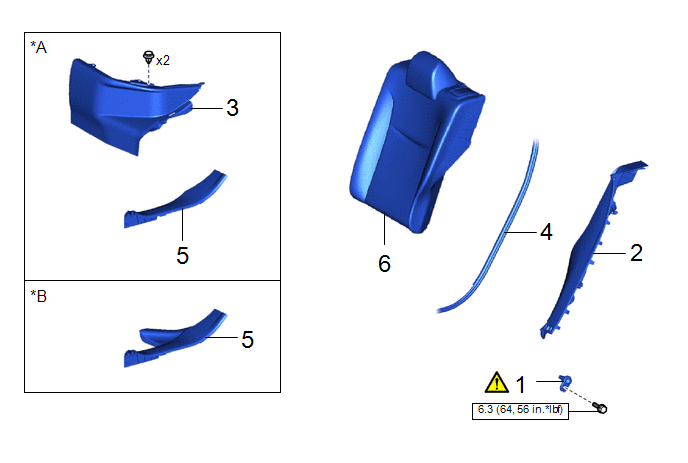

COMPONENTS (INSTALLATION)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY |
84234 |
|
- | - |
|
2 | REAR SEAT SIDE GARNISH |
62552F | - |
- | - |
|
3 | REAR UNDER SIDE COVER |
76974E | - |
- | - |
|
4 | REAR DOOR OPENING TRIM WEATHERSTRIP |
62332A | - |
- | - |
|
5 | REAR DOOR SCUFF PLATE |
67918A | - |
- | - |
|
6 | REAR SEAT ASSEMBLY |
- | - |
- | - |
.gif)
|
*A | for HEV Model |
*B | for Gasoline Model |
.png) |
N*m (kgf*cm, ft.*lbf): Specified torque |
- | - |
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. INSTALL REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY
(1) Using a T30 "TORX" socket wrench, install the rear door courtesy light switch assembly with the bolt.
Torque:
6.3 N·m {64 kgf·cm, 56 in·lbf}
(2) Connect the connector.
2. INSTALL REAR SEAT SIDE GARNISH
3. INSTALL REAR UNDER SIDE COVER (for HEV Model)
4. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP
5. INSTALL REAR DOOR SCUFF PLATE
6. INSTALL REAR SEAT ASSEMBLY
