Toyota Corolla Cross: Installation
INSTALLATION
CAUTION / NOTICE / HINT

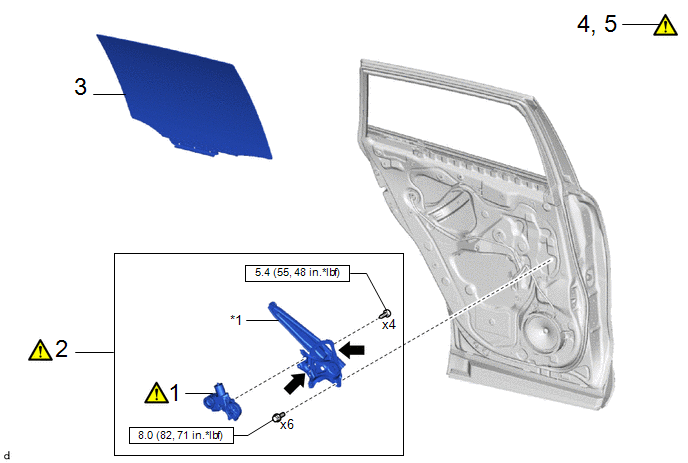

COMPONENTS (INSTALLATION)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | POWER WINDOW REGULATOR MOTOR ASSEMBLY |
85710F |
|
- | - |
|
2 | REAR DOOR WINDOW REGULATOR ASSEMBLY |
- |
|
- | - |
|
3 | REAR DOOR GLASS SUB-ASSEMBLY |
68104 | - |
- | - |
|
4 | INITIALIZE POWER WINDOW CONTROL SYSTEM |
- |
|
- | - |
|
5 | INSPECT POWER WINDOW OPERATION |
- |
|
- | - |
|
*1 | REAR DOOR WINDOW REGULATOR SUB-ASSEMBLY |
- | - |
.png) |
N*m (kgf*cm, ft.*lbf): Specified torque |
.png) |
MP grease |
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. INSTALL POWER WINDOW REGULATOR MOTOR ASSEMBLY
|
|
NOTICE: The regulator arm must be below the intermediate position when installing the power window regulator motor assembly. |

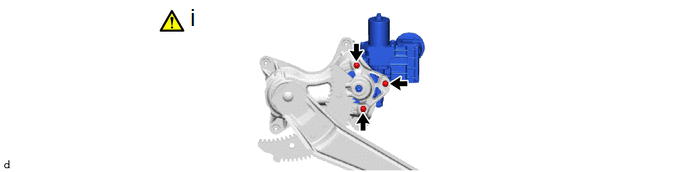

(1) Using a T25 "TORX" socket wrench, install the power window regulator motor assembly with the 3 screws to the rear door window regulator sub-assembly.
Torque:
5.4 N·m {55 kgf·cm, 48 in·lbf}
HINT:
When replacing a power window regulator motor assembly, a new power window regulator motor assembly uses self-tapping screws to thread new installation holes when the self-tapping screws are inserted.
2. INSTALL REAR DOOR WINDOW REGULATOR ASSEMBLY
|
|
Click here |
3. INSTALL REAR DOOR GLASS SUB-ASSEMBLY
Click here .gif)
4. INITIALIZE POWER WINDOW CONTROL SYSTEM
Click here
5. INSPECT POWER WINDOW OPERATION
Click here
