Toyota Corolla Cross: Removal
REMOVAL
CAUTION / NOTICE / HINT

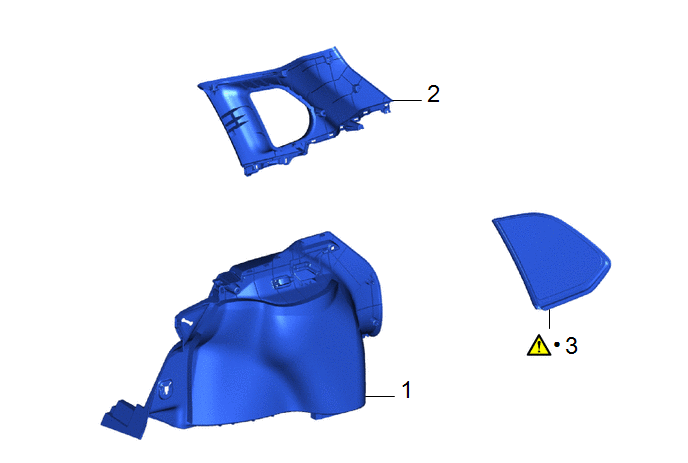

COMPONENTS (REMOVAL)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | DECK TRIM SIDE PANEL ASSEMBLY |
64740C | - |
- | - |
|
2 | ROOF SIDE INNER GARNISH ASSEMBLY LH |
62480A | - |
- | - |
|
3 | QUARTER WINDOW ASSEMBLY |
62720A |
|
- | - |
|
● | Non-reusable part |
- | - |
CAUTION / NOTICE / HINT
NOTICE:
Make sure to use Toyota Genuine Windshield Glass Adhesive (High Modulus Type) or equivalent.
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. REMOVE DECK TRIM SIDE PANEL ASSEMBLY
Click here .gif)
2. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH
Click here
3. REMOVE QUARTER WINDOW ASSEMBLY
|
*a | Piano Wire |
*b | Clip |

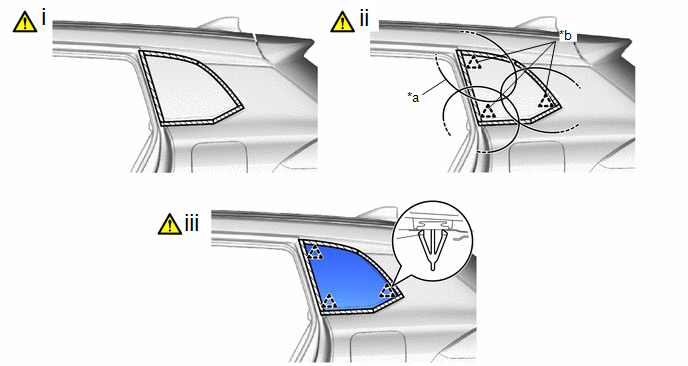

(1) Apply protective tape to the area around the installation position of the quarter window assembly on the vehicle body to prevent it from being scratched as shown in the illustration.
(2) Using piano wire, cut the adhesive by the below procedure.
1. Pass a piano wire between the vehicle body and quarter window assembly from the interior.
2. Tie both wire ends to wooden blocks or similar objects that can serve as handles.
3. Cut the adhesive by pulling the piano wire around the quarter window assembly.
NOTICE:
When separating the quarter window assembly, be careful not to damage the paint or interior and exterior ornaments.
(3) Using suction cups, disengage the clips to remove the quarter window assembly.
NOTICE:
Be careful not to drop the quarter window assembly.
