Toyota Corolla Cross: Installation
INSTALLATION
CAUTION / NOTICE / HINT

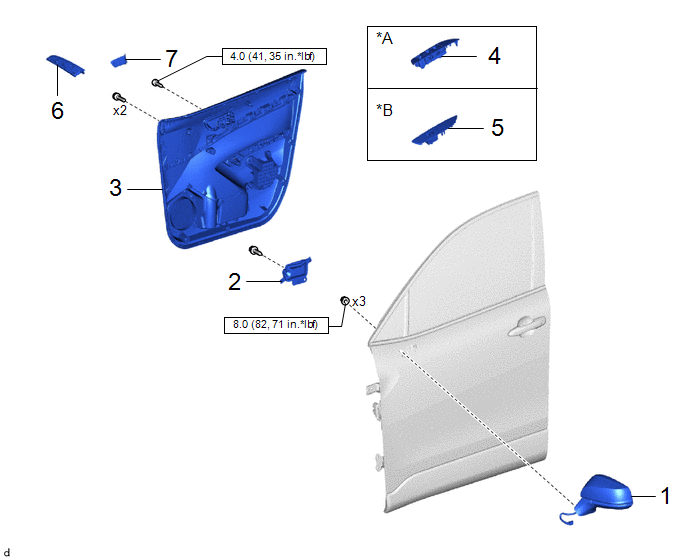

COMPONENTS (INSTALLATION)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | OUTER REAR VIEW MIRROR ASSEMBLY |
87940 | - |
- | - |
|
2 | OUTER MIRROR INSTALL HOLE COVER |
87964 | - |
- | - |
|
3 | FRONT DOOR TRIM BOARD SUB-ASSEMBLY |
67602 | - |
- | - |
|
4 | MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL |
- | - |
- | - |
|
5 | POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL |
- | - |
- | - |
|
6 | DOOR ASSIST GRIP COVER |
74646 | - |
- | - |
|
7 | FRONT DOOR INSIDE HANDLE BEZEL PLUG |
69284F | - |
- | - |
|
*A | for Driver Side |
*B | for Front Passenger Side |
.png) |
N*m (kgf*cm, ft.*lbf): Specified torque |
- | - |
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH and LH sides.
- The procedure listed below is for the LH side.
PROCEDURE
1. INSTALL OUTER REAR VIEW MIRROR ASSEMBLY
Torque:
8.0 N·m {82 kgf·cm, 71 in·lbf}
2. INSTALL OUTER MIRROR INSTALL HOLE COVER
3. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY
Click here
.gif)
4. INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)
5. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)
6. INSTALL DOOR ASSIST GRIP COVER
7. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG
