Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Exterior / Lighting (ext) / Headlight Dimmer Switch / Installation

INSTALLATION

CAUTION / NOTICE / HINT

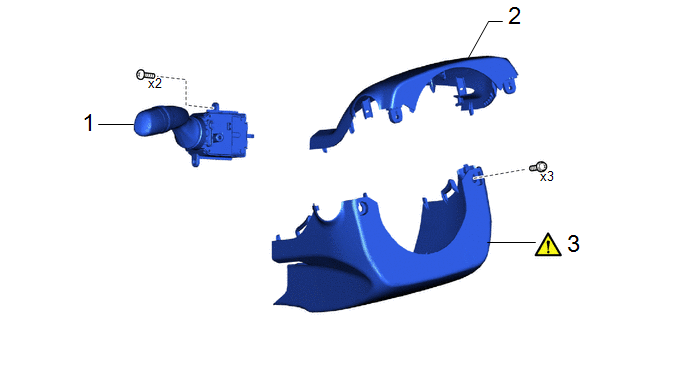

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

TURN SIGNAL SWITCH

84329

-

-

-

2

UPPER STEERING COLUMN COVER

45286B

-

-

-

3

LOWER STEERING COLUMN COVER

45287

-

-

PROCEDURE

1. INSTALL TURN SIGNAL SWITCH

2. INSTALL UPPER STEERING COLUMN COVER

3. INSTALL LOWER STEERING COLUMN COVER
