Toyota Corolla Cross: Installation
INSTALLATION
CAUTION / NOTICE / HINT
COMPONENTS (INSTALLATION)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|

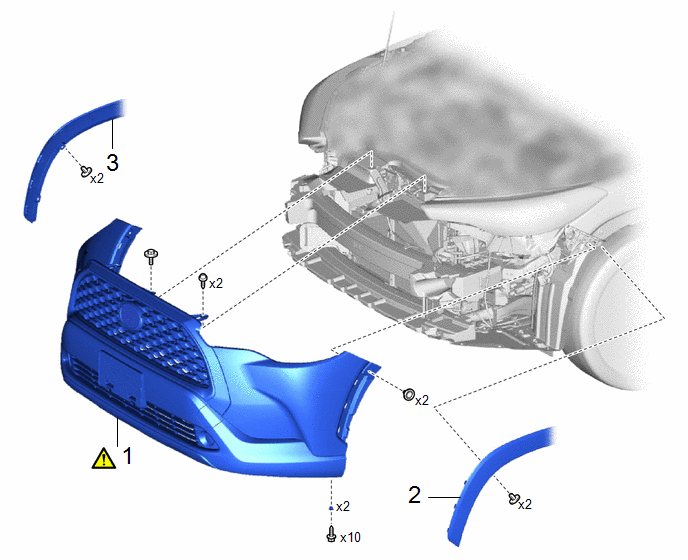

1 | FRONT BUMPER ASSEMBLY |
- |
|
- | - |
|
2 | FRONT FENDER MOULDING SUB-ASSEMBLY LH |
75602A | - |
- | - |
|
3 | FRONT FENDER MOULDING SUB-ASSEMBLY RH |
75601A | - |
- | - |
.gif)
PROCEDURE
1. INSTALL FRONT BUMPER ASSEMBLY
(1) Install the 2 grommets.

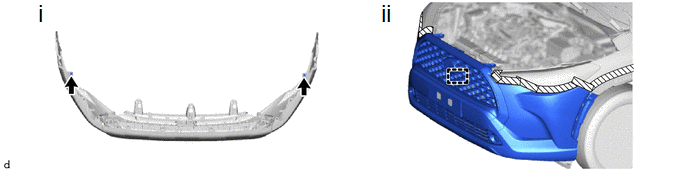

(2) Engage the guide to temporarily install the front bumper assembly.
|
*A | w/ Fog Light |
- | - |

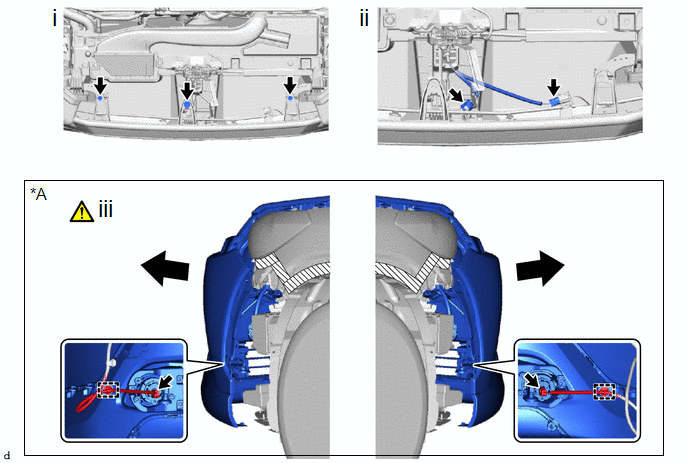

(1) Install the 2 screws and bolt.
(2) Connect the 2 connectors.
(3) w/ Fog Light:
1. Pull back the side of the front bumper assembly.
NOTICE:
Do not apply excessive force when pulling back the front bumper assembly.
2. Engage the clamps and connect the 2 connectors.
.png) |
Install in this Direction |
- | - |

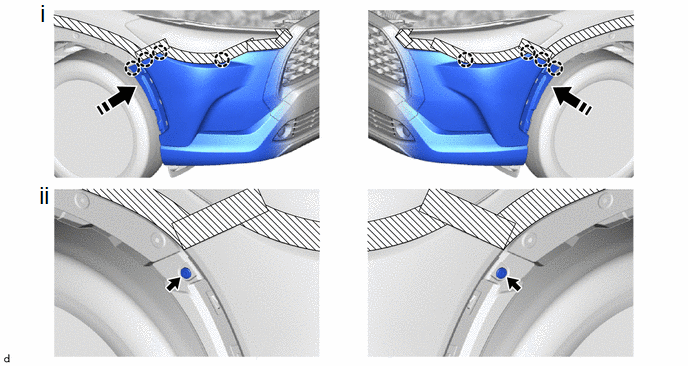

(1) Engage the claws as shown in the illustration.
(2) Install the 2 clips.

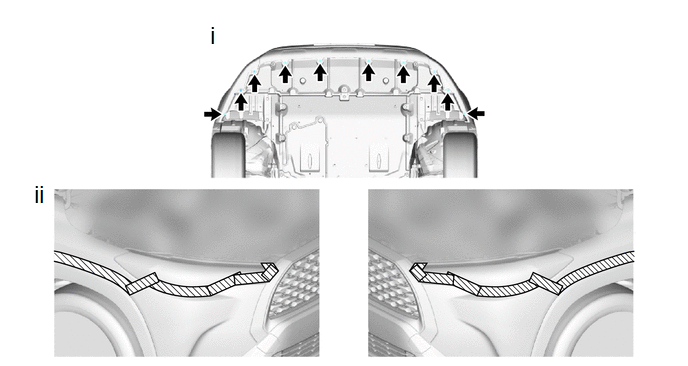

(1) Install the 10 screws.
(2) Remove the protective tape.
2. INSTALL FRONT FENDER MOULDING SUB-ASSEMBLY LH
3. INSTALL FRONT FENDER MOULDING SUB-ASSEMBLY RH
