Toyota Corolla Cross: Disassembly

Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Exterior / Exterior Panels / Trim / Front Bumper (for Sport Package) / Disassembly

DISASSEMBLY

CAUTION / NOTICE / HINT

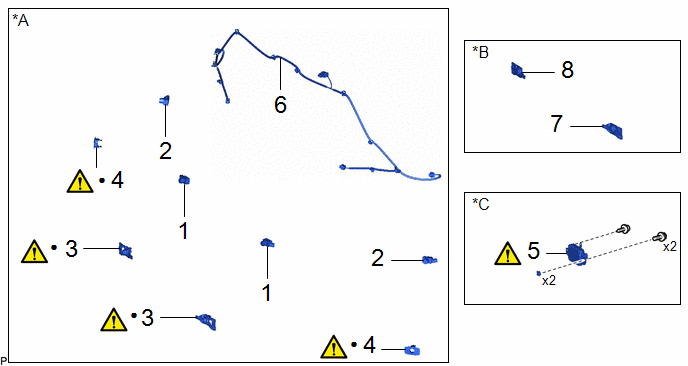

COMPONENTS (DISASSEMBLY)

Procedure

Part Name Code

1

FRONT CENTER ULTRASONIC SENSOR

89341L

-

-

-

2

FRONT CORNER ULTRASONIC SENSOR

89341K

-

-

-

3

FRONT CENTER ULTRASONIC SENSOR RETAINER

89C48E

-

-

4

FRONT CORNER ULTRASONIC SENSOR RETAINER

89C48D

-

-

5

MILLIMETER WAVE RADAR SENSOR ASSEMBLY

88211B

-

-

6

NO. 5 ENGINE ROOM WIRE

82119C

-

-

-

7

RADIATOR GRILLE LOWER RETAINER LH

-

-

-

-

8

RADIATOR GRILLE LOWER RETAINER RH

-

-

-

-

*A

w/ TOYOTA Parking Assist-sensor System

*B

w/o TOYOTA Parking Assist-sensor System

*C

w/ Pre-collision System

-

-

●

Non-reusable part

-

-

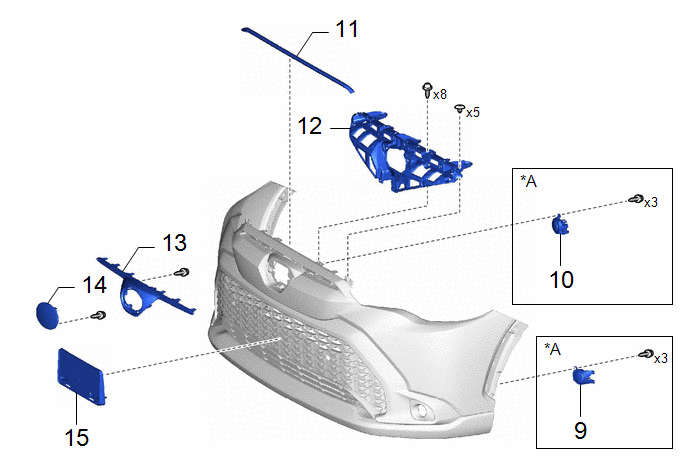

Procedure

Part Name Code

9

FOG LIGHT ASSEMBLY LH

81220

-

-

-

10

FOG LIGHT ASSEMBLY RH

81210A

-

-



11

HOOD TO FRONT END PANEL SEAL

53395J

-

-

-

12

INNER RADIATOR GRILLE

53114A

-

-

-

13

FRONT BUMPER GARNISH

52711A

-

-

-

14

RADIATOR GRILLE (OR FRONT PANEL) EMBLEM

75311

-

-

-

15

FRONT BUMPER EXTENSION MOUNTING BRACKET

52114A

-

-

-

*A

w/ Fog Light

-

-

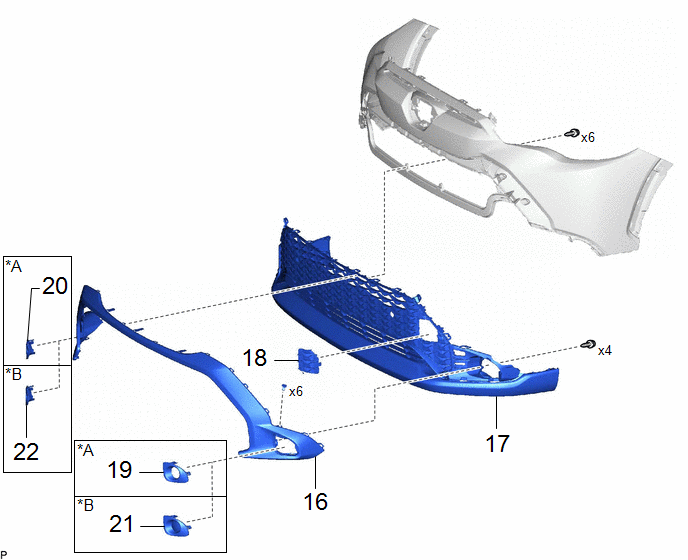

Procedure

Part Name Code

16

NO. 1 RADIATOR GRILLE MOULDING

53121H

-

-

-

17

LOWER FRONT BUMPER COVER

52129B

-

-

-

18

LOWER SIDE RADIATOR GRILLE LH

53128E

-

-

-

19

FOG LIGHT COVER LH

81482C

-

-

-

20

FOG LIGHT COVER RH

81481E

-

-

-

21

FOG LIGHT COVER LH

81482C

-

-

-

22

FOG LIGHT COVER RH

81481E

-

-

-

*A

w/ Fog Light

*B

w/o Fog Light

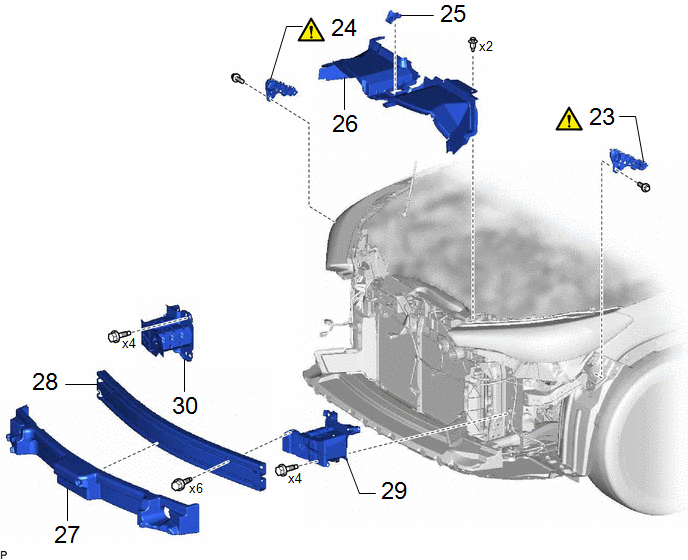

Procedure

Part Name Code

23

FRONT BUMPER SIDE RETAINER LH

52536

-

-

24

FRONT BUMPER SIDE RETAINER RH

52535

-

-

25

LOWER NO. 2 FRONT BUMPER RETAINER

52527C

-

-

-

26

NO. 1 RADIATOR TO SUPPORT SEAL

16561C

-

-

-

27

FRONT BUMPER ENERGY ABSORBER

52611

-

-

-

28

FRONT BUMPER REINFORCEMENT

52131A

-

-

-

29

FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY LH

57014A

-

-

-

30

FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY RH

57013C

-

-

-

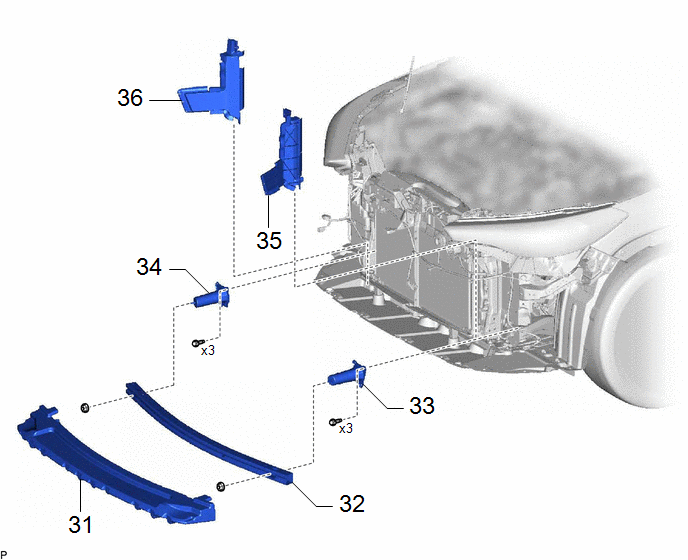

Procedure

Part Name Code

31

FRONT BUMPER LOWER ABSORBER

52618

-

-

-

32

NO. 2 FRONT BUMPER REINFORCEMENT

52132A

-

-

-

33

FRONT BUMPER BAR REINFORCEMENT LH

52134C

-

-

-

34

FRONT BUMPER BAR REINFORCEMENT RH

52133C

-

-

-

35

NO. 1 RADIATOR AIR GUIDE LH

16595D

-

-

-

36

NO. 1 RADIATOR AIR GUIDE RH

16593D

-

-

-

PROCEDURE

1. REMOVE FRONT CENTER ULTRASONIC SENSOR (w/ TOYOTA Parking Assist-sensor System)

Click here

2. REMOVE FRONT CORNER ULTRASONIC SENSOR (w/ TOYOTA Parking Assist-sensor System)

Click here

3. REMOVE FRONT CENTER ULTRASONIC SENSOR RETAINER (w/ TOYOTA Parking Assist-sensor System)

Click here

4. REMOVE FRONT CORNER ULTRASONIC SENSOR RETAINER (w/ TOYOTA Parking Assist-sensor System)

Click here

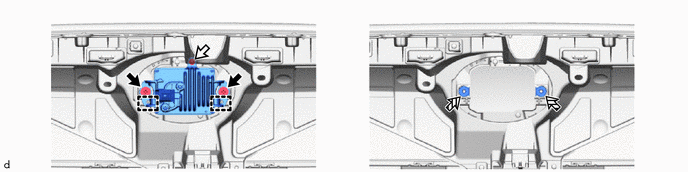

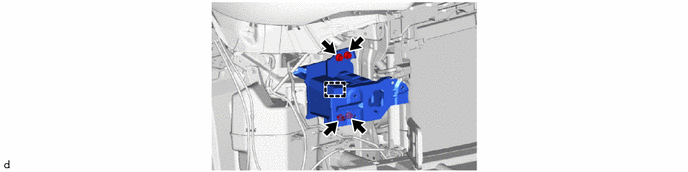

5. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Pre-collision System)

NOTICE:

Do not reuse the millimeter wave radar sensor assembly if it has been dropped or subjected to a severe impact.

Bolt

Screw

Nut

-

-

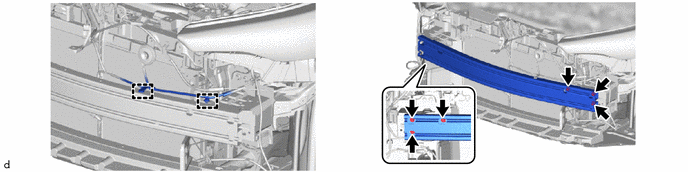

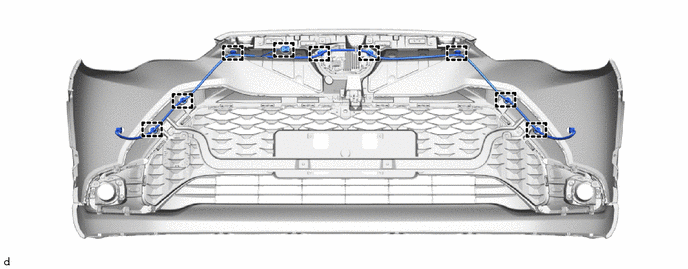

6. REMOVE NO. 5 ENGINE ROOM WIRE (w/ TOYOTA Parking Assist-sensor System)

7. REMOVE RADIATOR GRILLE LOWER RETAINER LH

8. REMOVE RADIATOR GRILLE LOWER RETAINER RH

(a) Use the same procedure as for the LH side.

9. REMOVE FOG LIGHT ASSEMBLY LH (w/ Fog Light)

Click here

10. REMOVE FOG LIGHT ASSEMBLY RH (w/ Fog Light)

(a) Use the same procedure as for the LH side.

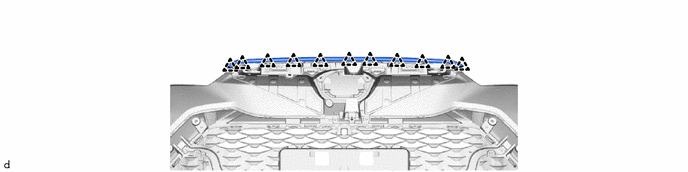

11. REMOVE HOOD TO FRONT END PANEL SEAL

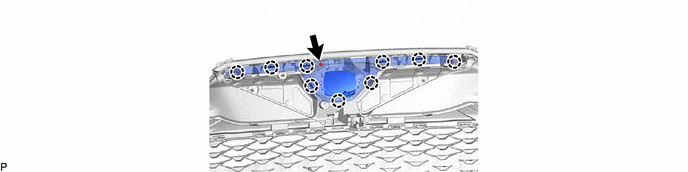

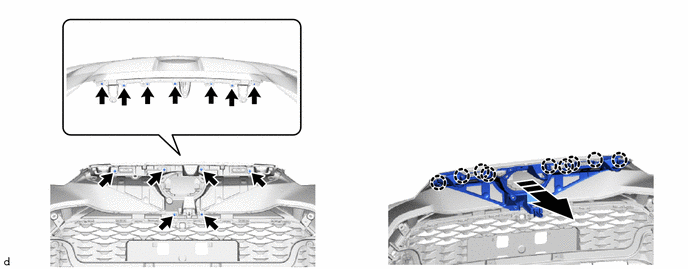

12. REMOVE INNER RADIATOR GRILLE

Remove in this Direction

-

-

13. REMOVE FRONT BUMPER GARNISH

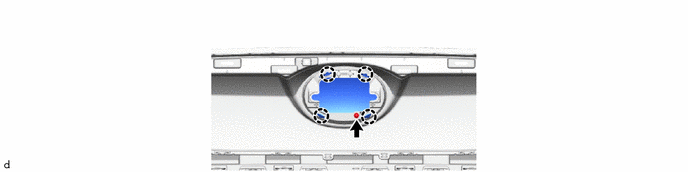

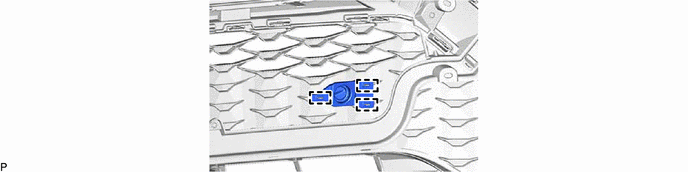

14. REMOVE RADIATOR GRILLE (OR FRONT PANEL) EMBLEM

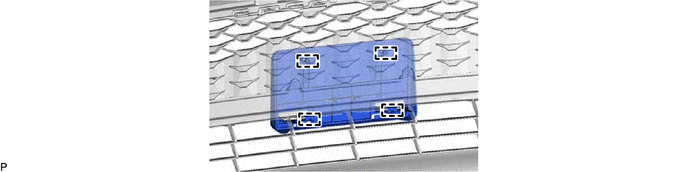

15. REMOVE FRONT BUMPER EXTENSION MOUNTING BRACKET

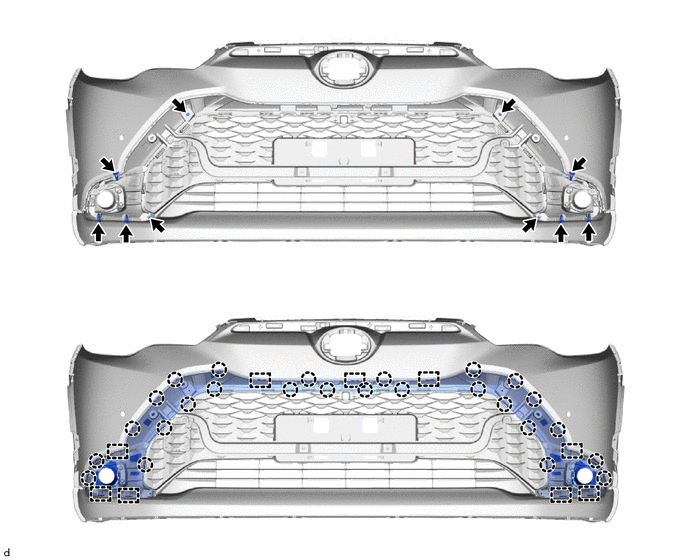

16. REMOVE NO. 1 RADIATOR GRILLE MOULDING

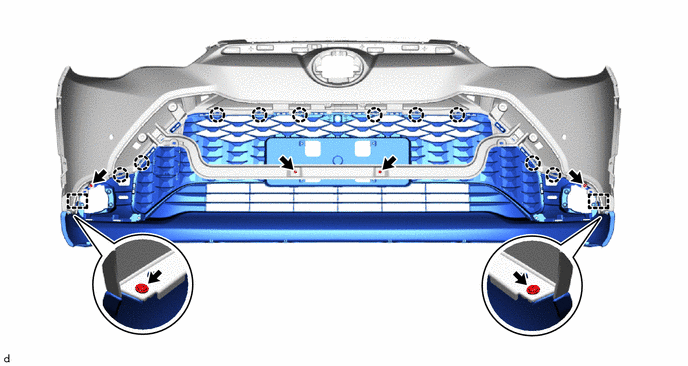

17. REMOVE LOWER FRONT BUMPER COVER

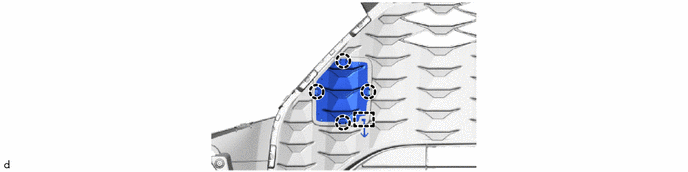

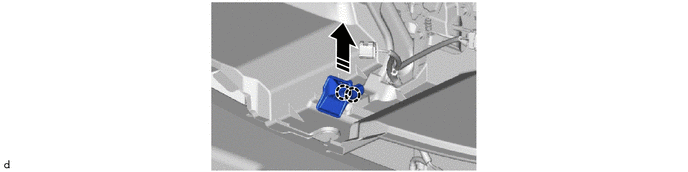

18. REMOVE LOWER SIDE RADIATOR GRILLE LH

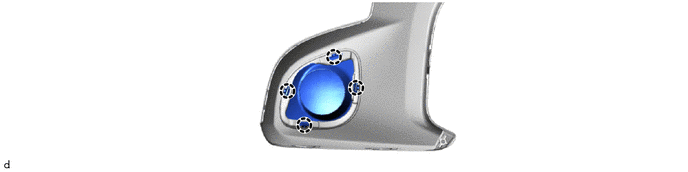

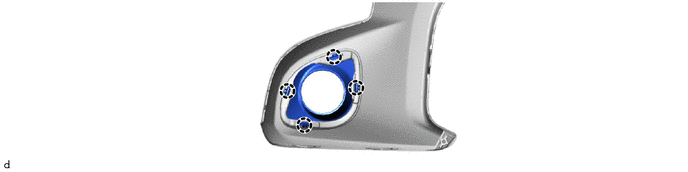

19. REMOVE FOG LIGHT COVER LH (w/ Fog Light)

20. REMOVE FOG LIGHT COVER RH (w/ Fog Light)

(a) Use the same procedure as for the LH side.

21. REMOVE FOG LIGHT COVER LH (w/o Fog Light)

22. REMOVE FOG LIGHT COVER RH (w/o Fog Light)

(a) Use the same procedure as for the LH side.

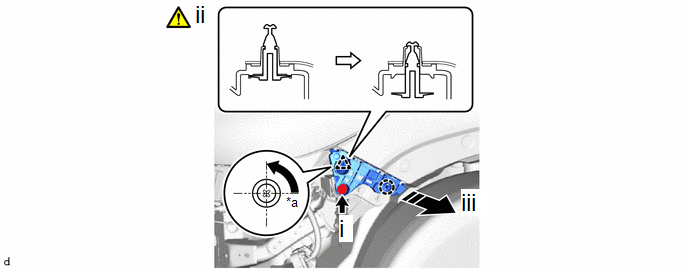

23. REMOVE FRONT BUMPER SIDE RETAINER LH

*a

90°

-

-

Remove in this Direction

-

-

(1) Remove the bolt.

(2) Using a screwdriver, turn the clip 90°and disengage the clip.

(3) Disengage the claw to remove the front bumper side retainer LH as shown in the illustration.

24. REMOVE FRONT BUMPER SIDE RETAINER RH

(a) Use the same procedure as for the LH side.

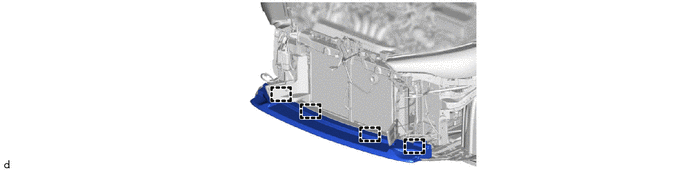

25. REMOVE LOWER NO. 2 FRONT BUMPER RETAINER

Remove in this Direction

-

-

26. REMOVE NO. 1 RADIATOR TO SUPPORT SEAL

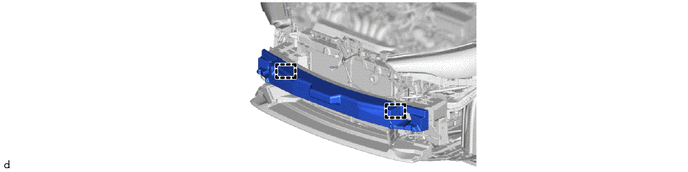

27. REMOVE FRONT BUMPER ENERGY ABSORBER

28. REMOVE FRONT BUMPER REINFORCEMENT

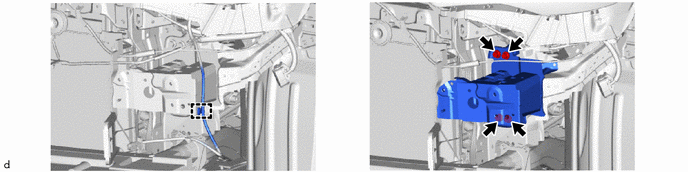

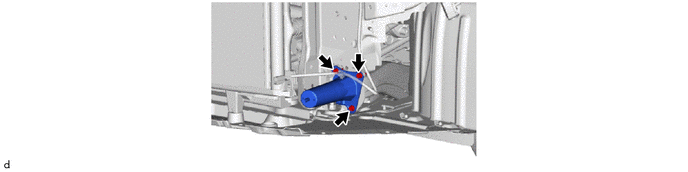

29. REMOVE FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY LH

30. REMOVE FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY RH

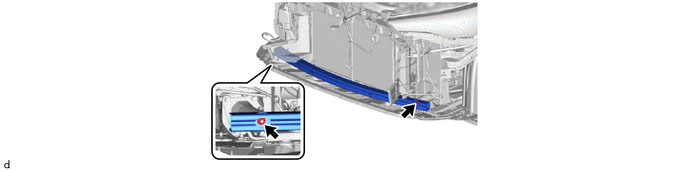

31. REMOVE FRONT BUMPER LOWER ABSORBER

32. REMOVE NO. 2 FRONT BUMPER REINFORCEMENT

33. REMOVE FRONT BUMPER BAR REINFORCEMENT LH

34. REMOVE FRONT BUMPER BAR REINFORCEMENT RH

(a) Use the same procedure as for the LH side.

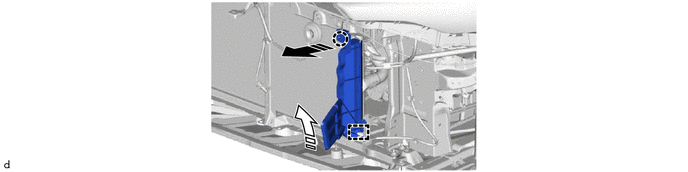

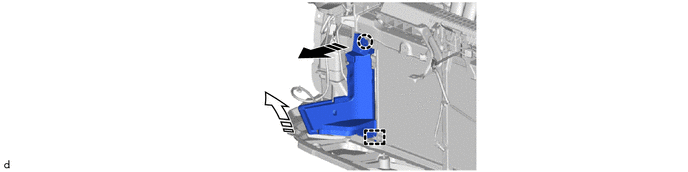

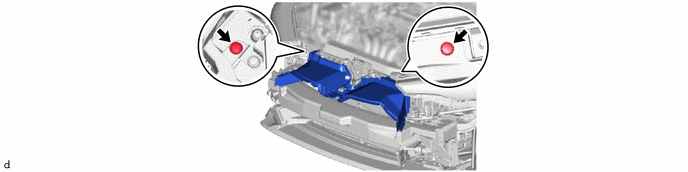

35. REMOVE NO. 1 RADIATOR AIR GUIDE LH

Remove in this Direction (1)

Remove in this Direction (2)

36. REMOVE NO. 1 RADIATOR AIR GUIDE RH

Remove in this Direction (1)

Remove in this Direction (2)
