Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

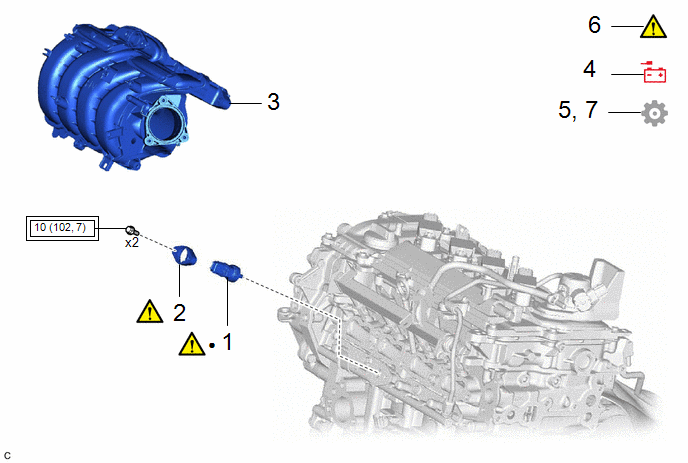

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

FUEL PRESSURE SENSOR

89458

-

-

2

NO. 1 FUEL PRESSURE SENSOR HOLDER

23851

-

-

3

INTAKE MANIFOLD

17111

-

-

-

4

CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

-

-

-

-

5

INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

-

-

-

6

INSPECT FOR FUEL LEAK

-

-

-

7

PERFORM INITIALIZATION

-

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

Non-reusable part

CAUTION / NOTICE / HINT

NOTICE:

This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click here

PROCEDURE

1. INSTALL FUEL PRESSURE SENSOR

NOTICE:

Perform "Inspection After Repair" after replacing the fuel pressure sensor.

Click here

*a

Cutout (Fuel Delivery Pipe)

*b

Cutout (Fuel Pressure Sensor)

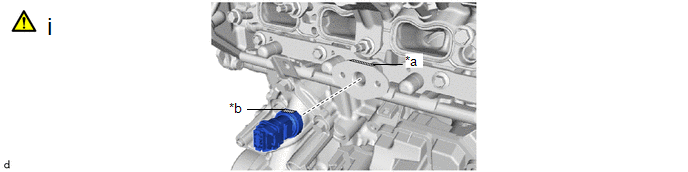

(1) Temporarily install a new fuel pressure sensor to the fuel delivery pipe as shown in the illustration.

NOTICE:

Make sure that the cutout of the fuel delivery pipe is aligned with the cutout of the fuel pressure sensor.

2. INSTALL NO. 1 FUEL PRESSURE SENSOR HOLDER

*a

Cutout (Fuel Pressure Sensor)

*b

Cutout (No. 1 Fuel Pressure Sensor Holder)

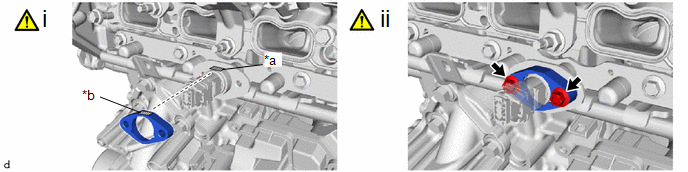

(1) Temporarily install the No. 1 fuel pressure sensor holder to the fuel delivery pipe as shown in the illustration.

NOTICE:

Make sure that the cutout of the fuel pressure sensor is aligned with the cutout of the No. 1 fuel pressure sensor holder.

(2) Using an 8 mm socket wrench, install the 2 bolts.

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}

3. INSTALL INTAKE MANIFOLD

Click here

4. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

Click here

5. INITIALIZATION AFTER RECONNECTING AUXILIARY BATTERY TERMINAL

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click here

6. INSPECT FOR FUEL LEAK

Click here

7. PERFORM INITIALIZATION

(a) Perform "Inspection After Repair" after replacing the fuel pressure sensor.

Click here
