Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

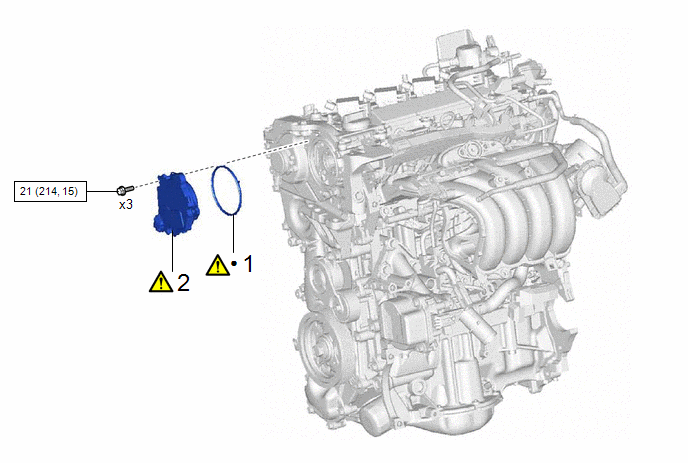

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

CAM TIMING CONTROL MOTOR O-RING

13090E

-

-

2

CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY

13090D

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

No Reusable parts

Procedure

Part Name Code

3

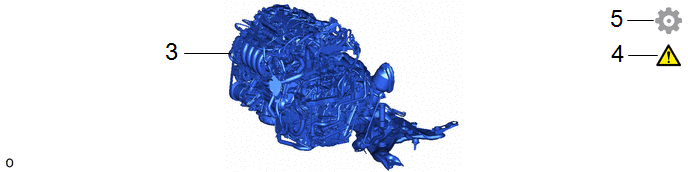

ENGINE ASSEMBLY WITH TRANSAXLE

-

-

-

-

4

INSPECT FOR ENGINE OIL LEAK

-

-

-

5

PERFORM INITIALIZATION

-

-

-

CAUTION / NOTICE / HINT

NOTICE:

This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click here

PROCEDURE

1. INSTALL CAM TIMING CONTROL MOTOR O-RING

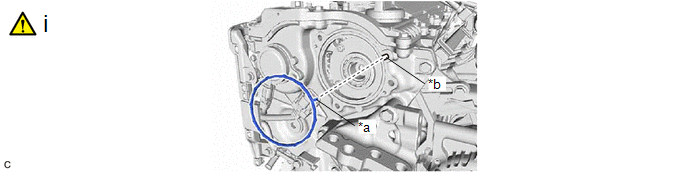

*a

Protrusion

*b

Cutout

(1) Install a new cam timing control motor O-ring to the No. 2 timing chain cover assembly with the protrusion of the cam timing control motor O-ring oriented as shown in the illustration.

2. INSTALL CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY

HINT:

Perform "Inspection After Repair" after removing and installing, or replacing the cam timing control motor with EDU assembly.

Click here

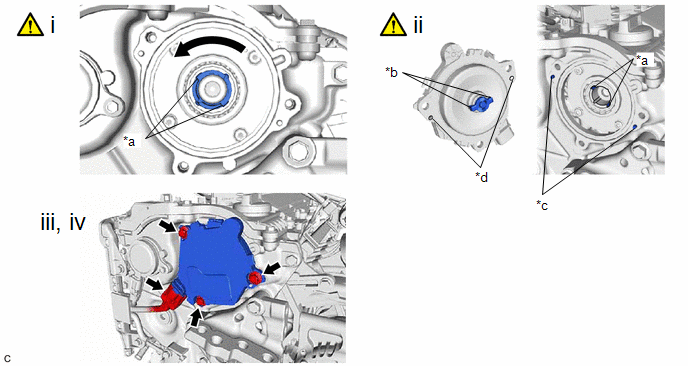

*a

Cutout

*b

Joint

*c

Knock Pin

*d

Pin Hole

(1) Turn the cutout of the camshaft timing gear assembly eccentric shaft counterclockwise by hand, and set it to the maximum retard angle position.

HINT:

  • If a camshaft lobe is opening a valve, the eccentric shaft will be difficult to turn.
  • When the cutout of the camshaft timing gear assembly eccentric shaft cannot be turned any farther, it is set to the maximum retard angle.

(2) Install the cam timing control motor with EDU assembly to the No. 2 timing chain cover assembly.

NOTICE:

  • When installing, align the joints of the cam timing control motor with EDU assembly with the cutouts of the camshaft timing gear assembly eccentric shaft.
  • Align the pin holes of the cam timing control motor with EDU assembly with the knock pins of the No. 2 timing chain cover assembly when installing the cam timing control motor with EDU assembly.
  • Make sure the contact surface of the cam timing control motor with EDU assembly (the surface that contacts the No. 2 timing chain cover assembly) is free of foreign matter.
  • When installing the cam timing control motor with EDU assembly, do not use excessive force.
  • If the cam timing control motor with EDU assembly has been struck or dropped, replace it.
  • Do not disassemble the cam timing control motor with EDU assembly. If disassembled, replace it.

(3) Install the 3 bolts.

Torque:

21 N·m {214 kgf·cm, 15 ft·lbf}

(4) Connect the cam timing control motor with EDU assembly connector.

3. INSTALL ENGINE ASSEMBLY WITH TRANSAXLE

Click here

4. INSPECT FOR ENGINE OIL LEAK

Click here

5. PERFORM INITIALIZATION

(a) Perform "Inspection After Repair" after removing and installing, or replacing the cam timing control motor with EDU assembly.

Click here
