INSTALLATION
CAUTION / NOTICE / HINT
COMPONENTS (INSTALLATION)
Procedure | Part Name Code | ||||
---|---|---|---|---|---|
1 | KNOCK CONTROL SENSOR |
89615 |
|
- | - |
2 | INTAKE MANIFOLD |
17111 | - |
- | - |
3 | PERFORM INITIALIZATION |
- | - |
- |
|
CAUTION / NOTICE / HINT
NOTICE:
This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
Click here
PROCEDURE
1. INSTALL KNOCK CONTROL SENSOR
HINT: Perform "Inspection After Repair" after replacing the knock control sensor. Click here |

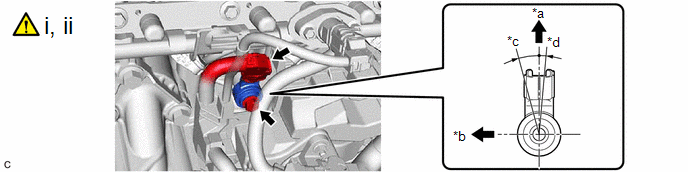

*a | Top of Vehicle |
*b | Right of Vehicle |
*c | 15° |
*d | 5° |
(1) Install the knock control sensor to the cylinder block sub-assembly with the bolt so that the knock control sensor installation position is as shown in the illustration.
Torque:
20 N·m {204 kgf·cm, 15 ft·lbf}
NOTICE:
(2) Connect the knock control sensor connector.
2. INSTALL INTAKE MANIFOLD
Click here
3. PERFORM INITIALIZATION
(a) Perform "Inspection After Repair" after replacing the knock control sensor.
Click here
