Toyota Corolla Cross: Installation
INSTALLATION
CAUTION / NOTICE / HINT

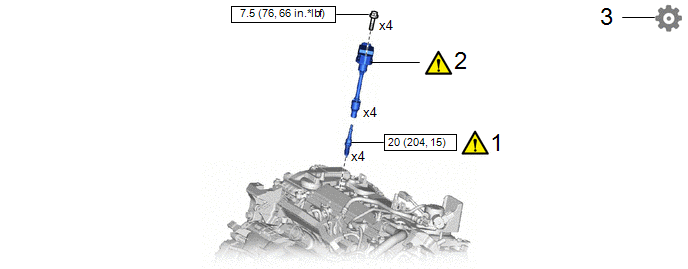

COMPONENTS (INSTALLATION)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | SPARK PLUG |
19100P |
|
- | - |
|
2 | IGNITION COIL ASSEMBLY |
19500 |
|
- | - |
|
3 | PERFORM INITIALIZATION |
- | - |
- |
|
.png) |
N*m (kgf*cm, ft.*lbf): Specified torque |
- | - |
CAUTION / NOTICE / HINT
NOTICE:
This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
Click here .gif)
PROCEDURE
1. INSTALL SPARK PLUG
|
|
Click here |
2. INSTALL IGNITION COIL ASSEMBLY
|
|
HINT: Perform "Inspection After Repair" after replacing an ignition coil assembly. Click here |
.png)

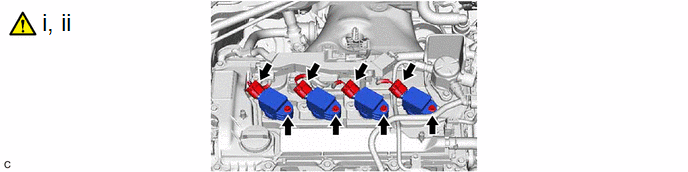

(1) Using an 8 mm socket wrench, install the 4 ignition coil assemblies to the cylinder head cover sub-assembly with the 4 bolts.
Torque:
7.5 N·m {76 kgf·cm, 66 in·lbf}
NOTICE:
If an ignition coil assembly has been struck or dropped, replace it.
(2) Connect the 4 ignition coil assembly connectors.
3. PERFORM INITIALIZATION
(a) Perform "Inspection After Repair" after replacing an ignition coil assembly or spark plug.
Click here
