Toyota Corolla Cross: Revolution Sensor (nss Sensor)
Removal
REMOVAL
CAUTION / NOTICE / HINT

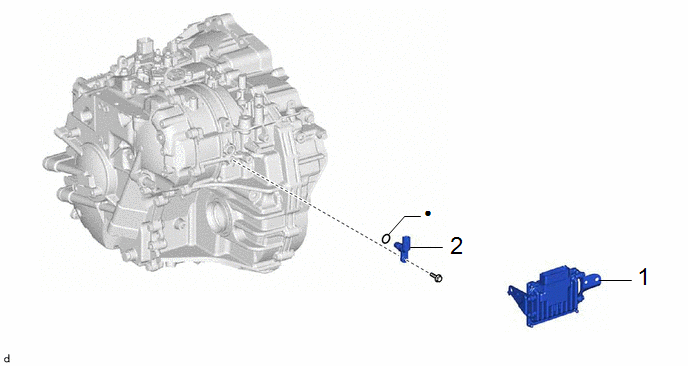

COMPONENTS (REMOVAL).png)
|
Procedure |
Part Name Code |
.png) |
.png) |
.png) |
|
|---|---|---|---|---|---|
|
1 |
TCM |
89535B |
- |
- |
- |
|
2 |
TRANSMISSION REVOLUTION SENSOR (NSS) |
89413T |
- |
- |
- |
|
● |
Non-reusable part |
- |
- |
CAUTION / NOTICE / HINT
HINT:
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
- Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed
Necessary Procedures
Link
Front camera system
Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.
.gif)
Stop and start system
Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)
- Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed
Necessary Procedures
Link
Power door lock control system
- Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.
Power back door system
Fully close the back door by hand.
HINT:
Initialization is not necessary if the above procedures are performed while the back door is closed.
Air conditioning system
After the ignition switch is turned to ON, the servo motor standard position is recognized.
-
PROCEDURE
1. REMOVE TCM
Click here

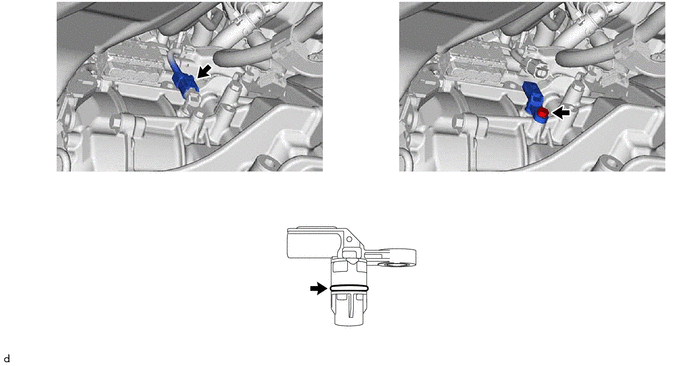

2. REMOVE TRANSMISSION REVOLUTION SENSOR (NSS)
.png)
Inspection
INSPECTION
PROCEDURE
1. INSPECT TRANSMISSION REVOLUTION SENSOR (NSS)

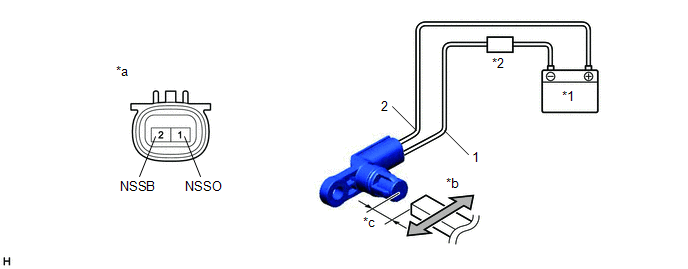

(a) Connect the battery to the transmission revolution sensor (NSS) as shown in the illustration.
.png)
|
*1 |
Battery |
*2 |
Ammeter |
|
*a |
Component without harness connected (Transmission Revolution Sensor (NSS)) |
*b |
Magnet |
|
*c |
5 mm (0.197 in.) or less |
- |
- |
(b) Wave a magnet left and right 5 mm (0.197 in.) or less from the tip of the transmission revolution sensor (NSS) to output a high/low signal while measuring the current.
NOTICE:
Make sure to wave the magnet during the inspection. The current will not change unless the magnet is moved as shown in the illustration.
(c) Measure the current according to the value(s) in the table below.
Standard Current:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
1 (NSSO) - 2 (NSSB) |
Low signal |
4 to 8 mA |
|
High signal |
12 to 16 mA |
(d) If the result is not as specified, replace the transmission revolution sensor (NSS).
