INSTALLATION

CAUTION / NOTICE / HINT

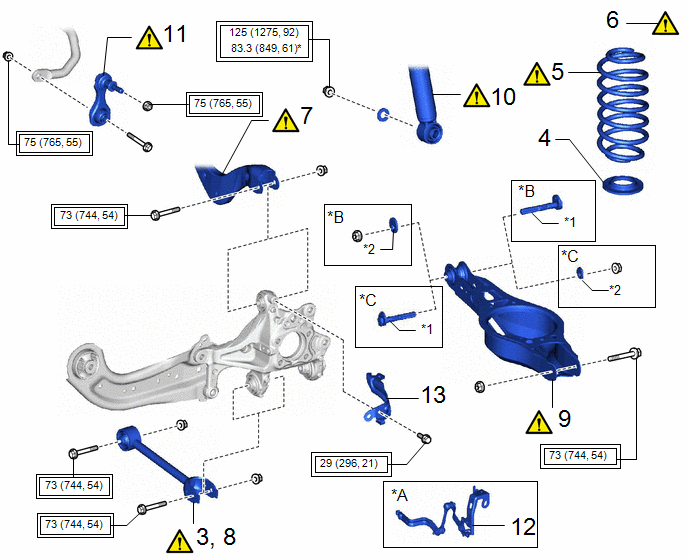

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

REAR AXLE CARRIER SUB-ASSEMBLY

42305

-

-

2

REAR TRAILING ARM ASSEMBLY

48780E

-

-

-

*1

REAR SHOCK ABSORBER ASSEMBLY

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

-

-

Procedure

Part Name Code

3

TEMPORARILY INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY

48720A

-

-

4

REAR LOWER COIL SPRING INSULATOR

48258C

-

-

-

5

REAR COIL SPRING

48231B

-

-

6

STABILIZE SUSPENSION

-

-

-

7

REAR UPPER CONTROL ARM ASSEMBLY

48790

-

-

8

FULLY TIGHTEN REAR NO. 1 SUSPENSION ARM ASSEMBLY

48720A

-

-

9

FULLY TIGHTEN REAR NO. 2 SUSPENSION ARM ASSEMBLY

48740F

-

-

10

REAR SHOCK ABSORBER ASSEMBLY

-

-

-

11

REAR STABILIZER LINK ASSEMBLY

48840A

-

-

12

REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH

89408C

-

-

-

13

NO. 4 FLEXIBLE HOSE BRACKET

47354B

-

-

-

*A

for LH Side

*B

for Gasoline Model

*C

for HEV Model

-

-

*1

REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY

*2

NO. 2 CAMBER ADJUST CAM

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

*

For use with SST

Procedure

Part Name Code

14

REAR AXLE HUB AND BEARING ASSEMBLY

42450B

-

-

15

INSTALL REAR DISC

42431

-

-

16

INSTALL REAR DISC BRAKE CALIPER ASSEMBLY

-

-

-

17

TEMPORARILY INSTALL REAR AXLE SHAFT NUT

42312B

-

-

18

SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY

-

-

-

19

REMOVE REAR DISC

42431

-

-

20

INSPECT REAR AXLE HUB BEARING LOOSENESS

-

-

-

21

INSPECT REAR AXLE HUB RUNOUT

-

-

-

22

INSTALL REAR DISC

42431

-

-

23

INSTALL REAR DISC BRAKE CALIPER ASSEMBLY

-

-

-

24

STAKE REAR AXLE SHAFT NUT

42312B

-

-

25

REAR FLEXIBLE HOSE

47319F

-

-

-

26

NO. 2 PARKING BRAKE WIRE ASSEMBLY

890C0A

-

-

27

REAR SKID CONTROL SENSOR

89544E

-

-

*1

REAR DISC BRAKE DUST COVER SUB-ASSEMBLY

-

-

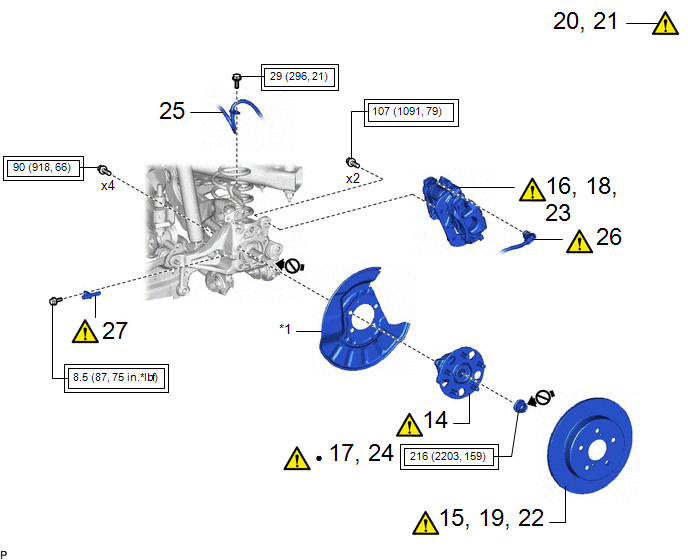

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

●

Non-reusable part

Do not apply lubricants to the threaded parts

-

-

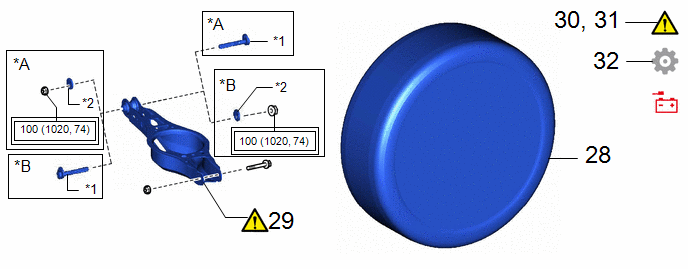

Procedure

Part Name Code

28

REAR WHEEL

-

-

-

-

29

FULLY TIGHTEN REAR NO. 2 SUSPENSION ARM ASSEMBLY

48740F

-

-

30

INSPECT AND ADJUST REAR WHEEL ALIGNMENT

-

-



31

CHECK FOR SPEED SENSOR SIGNAL

-

-

-

32

PERFORM INITIALIZATION

-

-

-

*A

for Gasoline Model

*B

for HEV Model

*1

REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY

*2

NO. 2 CAMBER ADJUST CAM

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

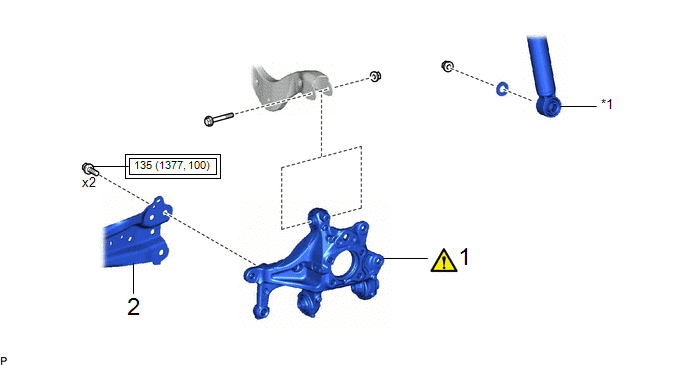

1. TEMPORARILY INSTALL REAR AXLE CARRIER SUB-ASSEMBLY

*1

Rear Axle Carrier Pin

-

-

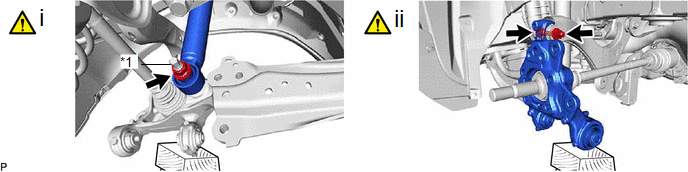

(1) Temporarily install the rear shock absorber assembly to the rear axle carrier sub-assembly with the nut and plate washer.

NOTICE:

Hold the rear axle carrier pin while rotating the nut.

(2) Temporarily install the rear axle carrier sub-assembly to the rear upper control arm assembly with the bolt and nut.

NOTICE:

Tighten the bolt with the nut secured.

2. INSTALL REAR TRAILING ARM ASSEMBLY

Torque:

135 N·m {1377 kgf·cm, 100 ft·lbf}

3. TEMPORARILY INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY

Click here

4. INSTALL REAR LOWER COIL SPRING INSULATOR

5. INSTALL REAR COIL SPRING

Click here

6. STABILIZE SUSPENSION

Click here

7. FULLY TIGHTEN REAR UPPER CONTROL ARM ASSEMBLY

NOTICE:

Tighten the bolt with the nut secured.

Torque:

73 N·m {744 kgf·cm, 54 ft·lbf}

8. FULLY TIGHTEN REAR NO. 1 SUSPENSION ARM ASSEMBLY

Click here

9. FULLY TIGHTEN REAR NO. 2 SUSPENSION ARM ASSEMBLY

Click here

10. FULLY TIGHTEN REAR SHOCK ABSORBER ASSEMBLY

click here

11. INSTALL REAR STABILIZER LINK ASSEMBLY

Click here

12. INSTALL REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH (w/ Height Control Sensor)

for LH Side:

Click here

13. INSTALL NO. 4 FLEXIBLE HOSE BRACKET

Torque:

29 N·m {296 kgf·cm, 21 ft·lbf}

14. INSTALL REAR AXLE HUB AND BEARING ASSEMBLY

Click here

15. INSTALL REAR DISC

Click here

16. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY

Click here

17. TEMPORARILY INSTALL REAR AXLE SHAFT NUT

Click here

18. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY

Click here

19. REMOVE REAR DISC

Click here

20. INSPECT REAR AXLE HUB BEARING LOOSENESS

Click here

21. INSPECT REAR AXLE HUB RUNOUT

Click here

22. INSTALL REAR DISC

Click here

23. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY

Click here

24. STAKE REAR AXLE SHAFT NUT

Click here

25. INSTALL REAR FLEXIBLE HOSE

Click here

26. CONNECT NO. 2 PARKING BRAKE WIRE ASSEMBLY

Click here

27. INSTALL REAR SKID CONTROL SENSOR

Click here

28. INSTALL REAR WHEEL

Click here

29. FULLY TIGHTEN REAR NO. 2 SUSPENSION ARM ASSEMBLY

Click here

30. INSPECT AND ADJUST REAR WHEEL ALIGNMENT

Click here

31. CHECK FOR SPEED SENSOR SIGNAL

for HEV Model:

Click here

for Gasoline Model:

Click here

32. PERFORM INITIALIZATION

Click here
