Toyota Corolla Cross: On-vehicle Inspection

Toyota Corolla Cross (2022-2024) Service Manual / Drivetrain / Axle And Differential / Rear Axle Hub (for 2wd) / On-vehicle Inspection

ON-VEHICLE INSPECTION

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE REAR WHEEL

Click here

2. DISCONNECT NO. 2 PARKING BRAKE WIRE ASSEMBLY

Click here

3. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY

Click here

4. REMOVE REAR DISC

Click here

5. INSPECT REAR AXLE HUB BEARING LOOSENESS

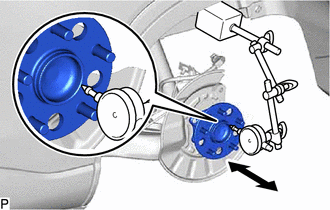

(a) Using a dial indicator with magnetic base, check for looseness near the center of the rear axle hub and bearing assembly.

Maximum Looseness:

0.05 mm (0.00197 in.)

NOTICE:

  • Ensure that the dial indicator is set perpendicular to the measurement surface.
  • Keep the magnet of the dial indicator away from the rear axle hub and bearing assembly.

(b) If the looseness exceeds the maximum, replace the rear axle hub and bearing assembly.

6. INSPECT REAR AXLE HUB RUNOUT

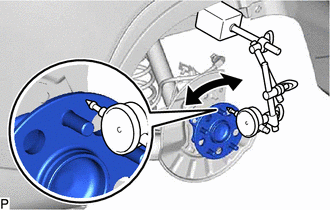

(a) Using a dial indicator with magnetic base, check for runout on the surface of the rear axle hub and bearing assembly outside the rear axle hub bolts.

Maximum Runout:

0.07 mm (0.00276 in.)

NOTICE:

  • Ensure that the dial indicator is set perpendicular to the measurement surface.
  • Make sure to install the tip of the dial indicator towards the outside of the rear axle hub bolts.
  • Keep the magnet of the dial indicator away from the rear axle hub and bearing assembly.

(b) If the runout exceeds the maximum, replace the rear axle hub and bearing assembly.

7. INSTALL REAR DISC

Click here

8. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY

Click here

9. CONNECT NO. 2 PARKING BRAKE WIRE ASSEMBLY

Click here

10. INSTALL REAR WHEEL

Click here
