INSTALLATION

CAUTION / NOTICE / HINT

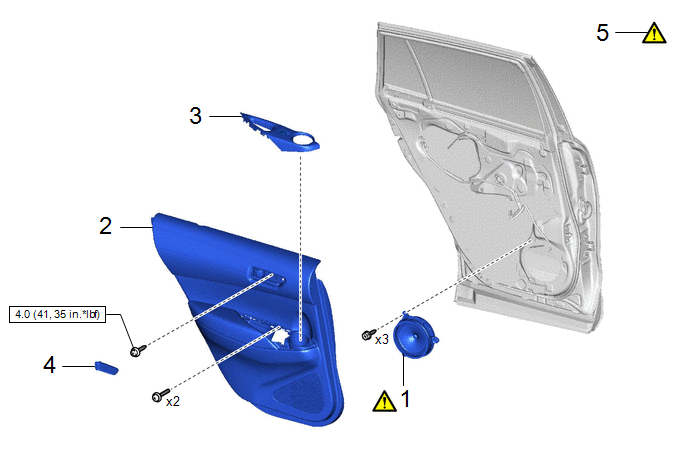

COMPONENTS (INSTALLATION)

Procedure		Part Name Code
1	REAR SPEAKER ASSEMBLY	86160B		-	-
2	REAR DOOR TRIM BOARD SUB-ASSEMBLY	67604	-	-	-
3	REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL	-	-	-	-
4	REAR DOOR INSIDE HANDLE BEZEL PLUG	69284G	-	-	-
5	INSPECT POWER WINDOW OPERATION	-		-	-

N*m (kgf*cm, ft.*lbf): Specified torque

CAUTION / NOTICE / HINT

HINT:

Use the same procedure for the RH side and LH side.
The following procedure is for the LH side.

PROCEDURE

1. INSTALL REAR SPEAKER ASSEMBLY

for LH Side

for RH Side

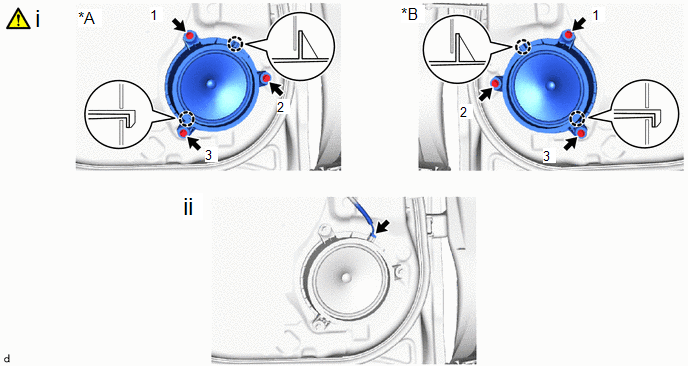

(1) Engage the claws to install the rear speaker assembly with the 3 screws.

NOTICE:

Install the screws in the order shown in the illustration.

(2) Connect the connector.

2. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY

3. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL

4. INSTALL REAR DOOR INSIDE HANDLE BEZEL PLUG

5. INSPECT POWER WINDOW OPERATION
