Toyota Corolla Cross (2022-2024) Service Manual / Audio & Visual & Telematics / Audio / Video / Pillar Speaker / Installation

INSTALLATION

CAUTION / NOTICE / HINT

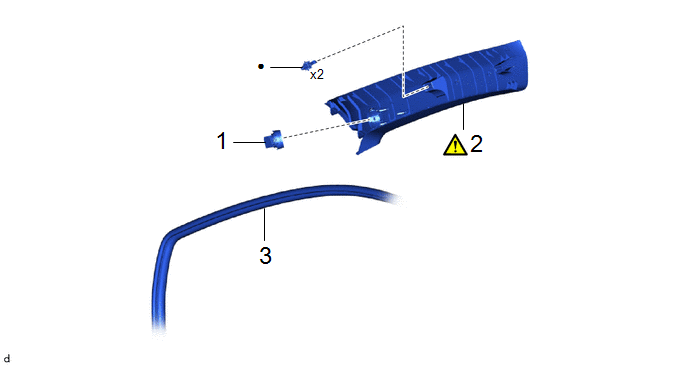

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

FRONT NO. 3 SPEAKER ASSEMBLY

86160J

-

-

-

2

FRONT PILLAR GARNISH ASSEMBLY

62212B

-

-

3

FRONT DOOR OPENING TRIM WEATHERSTRIP

62312B

-

-

-

●

Non-reusable part

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL FRONT NO. 3 SPEAKER ASSEMBLY

2. INSTALL FRONT PILLAR GARNISH ASSEMBLY

Click here

3. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP
