Toyota Corolla Cross: Installation
INSTALLATION
CAUTION / NOTICE / HINT

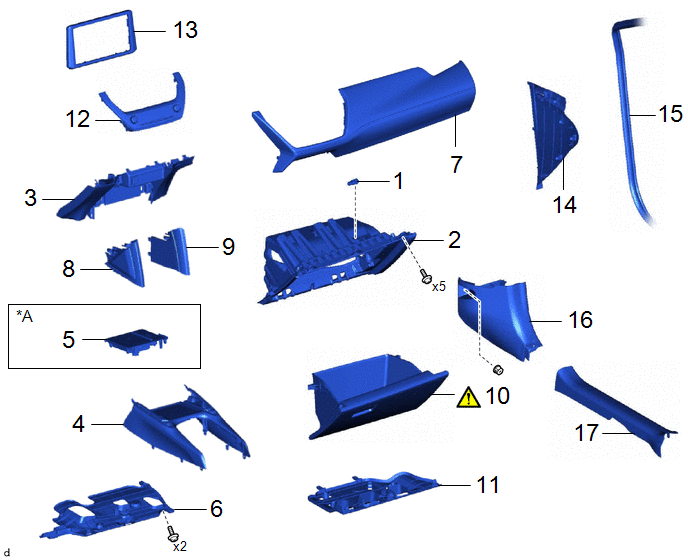

COMPONENTS (INSTALLATION)
|
Procedure | Part Name Code |
.png) |
.png) |
.png) | |
|---|---|---|---|---|---|
|
1 | GLOVE BOX LIGHT ASSEMBLY |
81260 | - |
- | - |
|
2 | LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL |
55433B | - |
- | - |
|
3 | LOWER CENTER INSTRUMENT PANEL FINISH PANEL |
55434F | - |
- | - |
|
4 | FRONT CONSOLE UPPER PANEL GARNISH |
58831A | - |
- | - |
|
5 | MOBILE WIRELESS CHARGER CRADLE ASSEMBLY |
861C0 | - |
- | - |
|
6 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
55606 | - |
- | - |
|
7 | INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY |
55470 | - |
- | - |
|
8 | NO. 2 CONSOLE UPPER PANEL GARNISH |
58834B | - |
- | - |
|
9 | NO. 1 CONSOLE UPPER PANEL GARNISH |
58833B | - |
- | - |
|
10 | GLOVE COMPARTMENT DOOR ASSEMBLY |
55550 |
|
- | - |
|
11 | NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
55607 | - |
- | - |
|
12 | AIR CONDITIONING CONTROL ASSEMBLY |
55900 | - |
- | - |
|
13 | CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY |
55405B | - |
- | - |
|
14 | NO. 2 INSTRUMENT SIDE PANEL |
55318F | - |
- | - |
|
15 | FRONT DOOR OPENING TRIM WEATHERSTRIP RH |
62311B | - |
- | - |
|
16 | COWL SIDE TRIM SUB-ASSEMBLY RH |
62111C | - |
- | - |
|
17 | FRONT DOOR SCUFF PLATE RH |
67913 | - |
- | - |
.gif)
|
*A | w/ Wireless Charger |
- | - |
PROCEDURE
1. INSTALL GLOVE BOX LIGHT ASSEMBLY
2. INSTALL LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL
3. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL
4. INSTALL FRONT CONSOLE UPPER PANEL GARNISH
5. INSTALL MOBILE WIRELESS CHARGER CRADLE ASSEMBLY (w/ Wireless Charger)
6. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
7. INSTALL INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY
8. INSTALL NO. 2 CONSOLE UPPER PANEL GARNISH
9. INSTALL NO. 1 CONSOLE UPPER PANEL GARNISH
10. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
|
|
Click here |
11. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
12. INSTALL AIR CONDITIONING CONTROL ASSEMBLY
13. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
14. INSTALL NO. 2 INSTRUMENT SIDE PANEL
15. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH
16. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH
17. INSTALL FRONT DOOR SCUFF PLATE RH
