Toyota Corolla Cross (2022-2024) Service Manual / Engine & Hybrid System / M20a-fks (fuel) / Fuel Injector (for Direct Injection) / Inspection

INSPECTION

PROCEDURE

1. INSPECT DIRECT FUEL INJECTOR ASSEMBLY

NOTICE:

This inspection is for checking the direct fuel injector assembly for an open or short. Because the direct fuel injector assembly of this vehicle is a high-pressure type, fuel injection volume cannot be checked.

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

1 - 2

20°C (68°F)

1.34 to 1.64 Ω

If the result is not as specified, replace the direct fuel injector assembly.

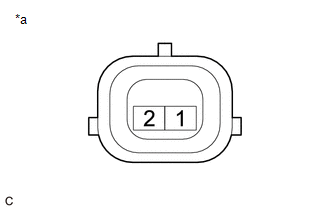

*a

Component without harness connected

(Direct Fuel Injector Assembly)
