Toyota Corolla Cross (2022-2025) Service Manual / Audio & Visual & Telematics / Audio / Video / Pillar Speaker / Inspection

INSPECTION

PROCEDURE

1. INSPECT FRONT NO. 3 SPEAKER ASSEMBLY LH

(a) With the front No. 3 speaker assembly LH installed, check that there is no looseness or other abnormalities.

(b) Check that there is no foreign matter in the front No. 3 speaker assembly LH, no tears on the front No. 3 speaker assembly LH cone or other abnormalities.

(c) Measure the resistance of the front No. 3 speaker assembly LH.

Standard Resistance:

Tester Connection

Condition

Specified Condition

I236-2 - I236-4

Always

4.0 Ω

If the result is not as specified, replace the front No. 3 speaker assembly LH.

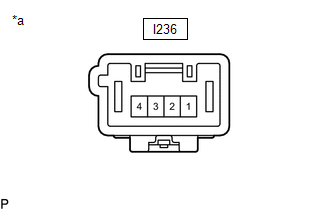

*a

Component without harness connected

(Front No. 3 Speaker Assembly LH)

2. INSPECT FRONT NO. 3 SPEAKER ASSEMBLY RH

(a) With the front No. 3 speaker assembly RH installed, check that there is no looseness or other abnormalities.

(b) Check that there is no foreign matter in the front No. 3 speaker assembly RH, no tears on the front No. 3 speaker assembly RH cone or other abnormalities.

(c) Measure the resistance of the front No. 3 speaker assembly RH.

Standard Resistance:

Tester Connection

Condition

Specified Condition

I235-2 - I235-4

Always

4.0 Ω

If the result is not as specified, replace the front No. 3 speaker assembly RH.

*a

Component without harness connected

(Front No. 3 Speaker Assembly RH)
