Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

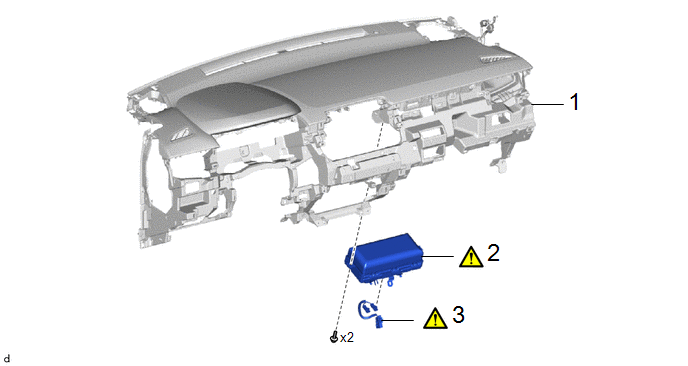

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

INSTRUMENT PANEL SAFETY PAD ASSEMBLY

55400

-

-

-

2

INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

73960A

-

-

3

NO. 2 INSTRUMENT PANEL WIRE

82142

-

-

CAUTION / NOTICE / HINT

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

  • Learning completes when vehicle is driven

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    *A: for Gasoline Model

    Front Camera System

    Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.

    Stop and start system*A

    Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)

  • Learning completes when vehicle is operated normally

    Effect/Inoperative Function When Necessary Procedures are not Performed

    Necessary Procedures

    Link

    Power door lock control system

    • Back door opener

    Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.

    Power back door system

    Fully close the back door by hand.

    HINT:

    Initialization is not necessary if the above procedures are performed while the back door is closed.

    Air conditioning system

    After the ignition switch is turned to ON, the servo motor standard position is recognized.

    -

PROCEDURE

1. REMOVE INSTRUMENT PANEL SAFETY PAD ASSEMBLY

Click here

2. REMOVE INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

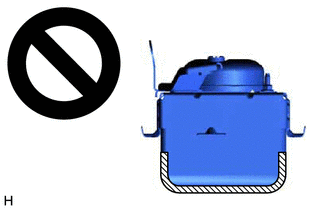

  • When storing the instrument panel passenger airbag assembly, keep the airbag deployment side facing upward.
  • If the airbag deploys for any reason, it may cause a serious accident.

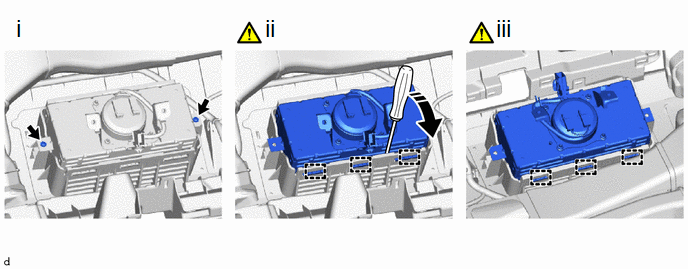

(1) Remove the 2 screws.

(2) Using a screwdriver, pry back the passenger airbag door retainer to disengage the 3 hooks as shown in the illustration.

NOTICE:

Do not damage the deployment surface of the instrument panel passenger airbag assembly.

(3) Disengage the 3 hooks to remove the instrument panel passenger airbag assembly from the instrument panel safety pad sub-assembly.

3. REMOVE NO. 2 INSTRUMENT PANEL WIRE

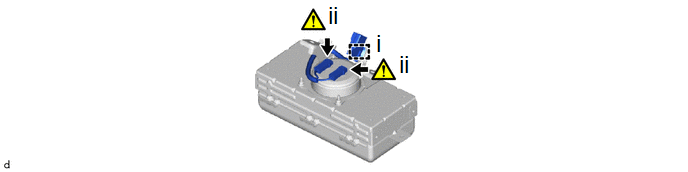

(1) Disengage the clamp.

(2) Disconnect the airbag connector.

NOTICE:

When disconnecting any airbag connector, take care not to damage the airbag wire harness.

HINT:

Refer to How to Connect or Disconnect Airbag Connector:

Click here
