Toyota Corolla Cross: Hybrid/EV Battery Current Sensor "A" Circuit Range/Performance (P0ABF00)

Toyota Corolla Cross (2022-2024) Service Manual / Engine & Hybrid System / Hybrid / Battery Control / Hybrid Control System / Hybrid/EV Battery Current Sensor "A" Circuit Range/Performance (P0ABF00)

DESCRIPTION

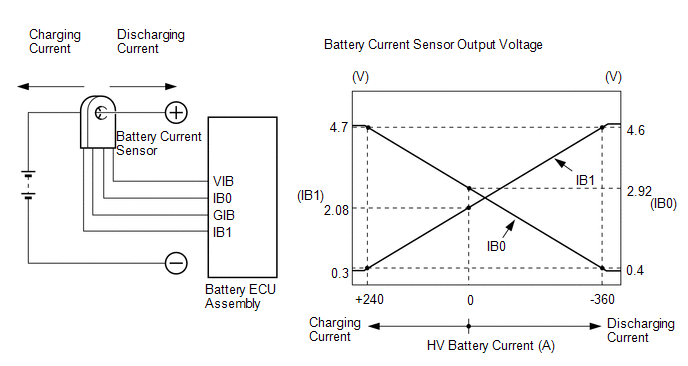

A battery current sensor, which is mounted on the positive cable side of each HV battery junction block assembly, detects the current flowing to or from the battery pack. The battery current sensor sends a voltage, which varies between 0 and 5 V in proportion to the amperage, to the IB0 terminal of the battery ECU assembly. Similarly, it sends a voltage, which varies between 0 and 5 V in inverse proportion to the amperage, to the IB1 terminal of the battery ECU assembly. When the voltage at the IB0 terminal is below 2.92 V and the voltage at the IB1 terminal is above 2.08 V, this indicates that the HV battery is being discharged. Additionally, Meanwhile, when the voltage at of the IB0 terminal is above 2.92 V and the voltage at of the IB1 terminal is below 2.08 V, this indicates that the HV battery is being charged. The battery ECU assembly sends the signals from its IB0 and IB1 terminals to the hybrid vehicle control ECU. The hybrid vehicle control ECU determines the charging and discharging amperage of the HV battery based on the received signals and calculates the SOC of the HV battery using the cumulative amperage value.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Warning Indicate

Note

P0ABF00

Hybrid/EV Battery Current Sensor "A" Circuit Range/Performance

Abnormal battery current sensor characteristics:

(based on hybrid system consumption and HV battery output).

(1 trip detection logic)

  • HV battery junction block assembly
  • Battery ECU assembly
  • HV battery

Comes on

Master Warning:

Comes on

SAE Code:

P0AC0

MONITOR DESCRIPTION

The hybrid vehicle control ECU detects malfunctions of the battery current sensor by monitoring motor and generator torque. If the hybrid vehicle control ECU detects a battery current sensor malfunction, the hybrid vehicle control ECU will illuminate the MIL and store a DTC.

MONITOR STRATEGY

Related DTCs

P0AC0 (INF P0ABF00): Current sensor malfunction (gain or offset)

Required sensors/components

Battery current sensor

Frequency of operation

Continuous

Duration

TMC's intellectual property

MIL operation

1 driving cycle

Sequence of operation

None

TYPICAL ENABLING CONDITIONS

The monitor will run whenever the following DTCs are not stored

TMC's intellectual property

Other conditions belong to TMC's intellectual property

-

TYPICAL MALFUNCTION THRESHOLDS

TMC's intellectual property

-

COMPONENT OPERATING RANGE

Hybrid vehicle control ECU

DTC P0AC0 (INF P0ABF00) is not detected

CONFIRMATION DRIVING PATTERN

HINT:

  • After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

    Click here

    Click here

  • When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.
  1. Connect the GTS to the DLC3.
  2. Turn the ignition switch to ON and turn the GTS on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
  4. Turn the ignition switch off and wait for 2 minutes or more.
  5. Turn the ignition switch to ON and turn the GTS on.
  6. Drive the vehicle for approximately 10 minutes according to the Freeze Frame Data items "Vehicle Speed", "Accelerator Position", "Hybrid/EV Battery Current", "Motor Torque" and "Generator Torque". [*1]

    HINT:

    [*1]: Normal judgment procedure.

    The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

  7. Enter the following menus: Powertrain / Hybrid Control / Utility / All Readiness.
  8. Check the DTC judgment result.

    HINT:

    • If the judgment result shows NORMAL, the system is normal.
    • If the judgment result shows ABNORMAL, the system has a malfunction.
    • If the judgment result shows INCOMPLETE, perform the normal judgment procedure again.

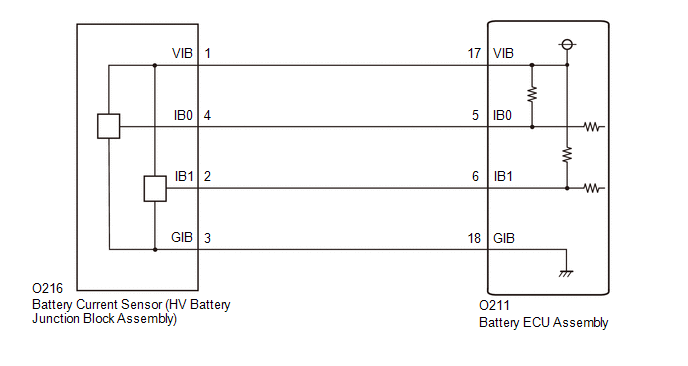

WIRING DIAGRAM

CAUTION / NOTICE / HINT

CAUTION:

Refer to the precautions before inspecting high voltage circuit.

Click here

NOTICE:

  • After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Click here

  • When disconnecting and reconnecting the auxiliary battery

    HINT:

    When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

    Click here

PROCEDURE

1.

CHECK HARNESS AND CONNECTOR (BATTERY ECU ASSEMBLY - HV BATTERY JUNCTION BLOCK ASSEMBLY)

CAUTION:

Be sure to wear insulated gloves and protective goggles.

(a) Check that the service plug grip is not installed.

NOTICE:

After removing the service plug grip, do not turn the ignition switch to ON (READY), unless instructed by the repair manual because this may cause a malfunction.

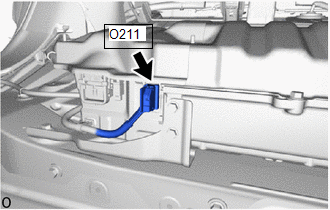

(b) Disconnect the battery ECU assembly connector.

NOTICE:

Before disconnecting the connector, check that it is not loose or disconnected.

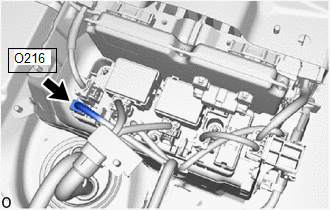

(c) Disconnect the battery current sensor connector from the HV battery junction block assembly.

NOTICE:

Before disconnecting the connector, check that it is not loose or disconnected.

(d) Measure the resistance according to the value(s) in the tables below.

Standard Resistance (Check for Open):

Tester Connection

Condition

Specified Condition

O211-6 (IB1) - O216-2 (IB1)

Ignition switch off

Below 1 Ω

O211-18 (GIB) - O216-3 (GIB)

Ignition switch off

Below 1 Ω

O211-5 (IB0) - O216-4 (IB0)

Ignition switch off

Below 1 Ω

O211-17 (VIB) - O216-1 (VIB)

Ignition switch off

Below 1 Ω

Standard Resistance (Check for Short):

Tester Connection

Condition

Specified Condition

O211-6 (IB1) or O216-2 (IB1) - Other terminals and body ground

Ignition switch off

10 kΩ or higher

O211-18 (GIB) or O216-3 (GIB) - Other terminals and body ground

Ignition switch off

10 kΩ or higher

O211-5 (IB0) or O216-4 (IB0) - Other terminals and body ground

Ignition switch off

10 kΩ or higher

O211-17 (VIB) or O216-1 (VIB) - Other terminals and body ground

Ignition switch off

10 kΩ or higher

(e) Reconnect the battery current sensor connector to the HV battery junction block assembly.

(f) Reconnect the battery ECU assembly connector.

NG

REPLACE HV BATTERY

OK

2.

REPLACE HV BATTERY JUNCTION BLOCK ASSEMBLY

Click here

NEXT

3.

CLEAR DTC

Click here

NEXT

4.

PERFORM ROAD TEST

(a) Check that "Hybrid/EV Battery SOC" shows 60% or less.

Powertrain > Hybrid Control > Data List

Tester Display

Hybrid/EV Battery SOC

HINT:

If "Hybrid/EV Battery SOC" is 60% or more, reduce it to below 60% by leaving the hybrid system on with shift lever in N.

(b) Apply the parking brake and secure the wheels using chocks.

(c) Turn the ignition switch to ON (READY).

(d) Move the shift lever to D while depressing the brake pedal with your left foot and repeat the following steps for 1 minute or more.

HINT:

Depress and release the accelerator pedal in 5-second intervals (2.5 seconds each) continuously.

(1) While depressing the brake pedal with your left foot, depress the accelerator pedal with your right foot.

(2) Release the accelerator pedal.

(e) Turn the ignition switch off.

NEXT

5.

CHECK DTC OUTPUT (HYBRID CONTROL)

(a) Check for DTCs.

Powertrain > Hybrid Control > Trouble Codes

Result

Proceed to

P0ABF00 is not output.

A

P0ABF00 is output again.

B

(b) Turn the ignition switch off.

A

END

B

REPLACE BATTERY ECU ASSEMBLY
