Toyota Corolla Cross: High Beam Headlight Circuit

DESCRIPTION

The headlight ECU sub-assembly controls the high beam headlights.

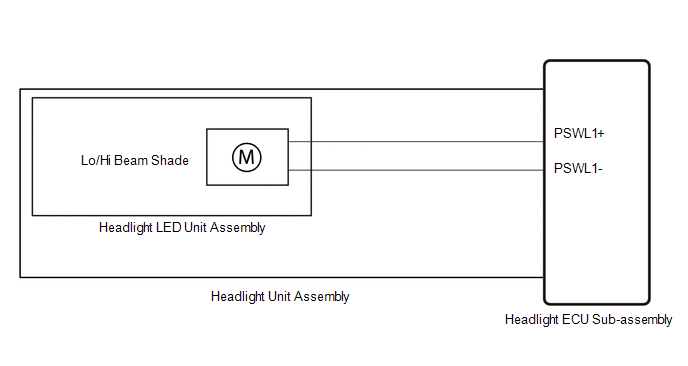

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

If the headlight ECU sub-assembly LH has been replaced, it is necessary to synchronize the vehicle information and initialize the headlight ECU sub-assembly LH.

Click here

PROCEDURE

1.

PERFORM ACTIVE TEST USING GTS

(a) Perform the Active Test according to the display on the GTS.

Body Electrical > Main Body > Active Test

Tester Display

Measurement Item

Type

Diagnostic Note

High Beam Headlight

High beam headlights

OFF or ON

-

Body Electrical > Main Body > Active Test

Tester Display

High Beam Headlight

OK:

High beam headlights turn on.

Result

Proceed to

OK

A

NG (LH side high beam light does not illuminate)

B

NG (RH side high beam light does not illuminate)

C

A

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

C

GO TO STEP 4

B

2.

CHECK HEADLIGHT UNIT ASSEMBLY LH

(a) Interchange the headlight unit assembly LH with RH and connect the connectors.

Click here

NEXT

3.

CHECK OPERATION (HIGH BEAM HEADLIGHT)

(a) Check that the high beam headlight operates normally.

OK:

High beam headlight operates normally.

OK

REPLACE HEADLIGHT UNIT ASSEMBLY LH

NG

REPLACE HEADLIGHT ECU SUB-ASSEMBLY LH

4.

CHECK HEADLIGHT UNIT ASSEMBLY RH

(a) Interchange the headlight unit assembly RH with LH and connect the connectors.

Click here

NEXT

5.

CHECK OPERATION (HIGH BEAM HEADLIGHT)

(a) Check that the high beam headlight operates normally.

OK:

High beam headlight operates normally.

OK

REPLACE HEADLIGHT UNIT ASSEMBLY RH

NG

REPLACE HEADLIGHT ECU SUB-ASSEMBLY RH
