Toyota Corolla Cross: Fuel Tank Cap

Toyota Corolla Cross (2022-2024) Service Manual / Engine & Hybrid System / M20a-fxs (emission Control) / Fuel Tank Cap

Inspection

INSPECTION

PROCEDURE

1. INSPECT FUEL TANK CAP ASSEMBLY

(a) Visually check that the fuel tank cap assembly and gasket are not deformed or damaged.

If the fuel tank cap assembly or gasket is deformed or damaged, replace it.

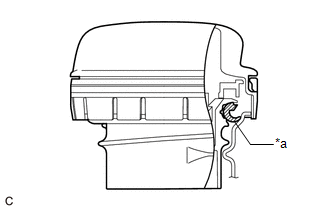

*a

Gasket
