Toyota Corolla Cross: Front Differential Oil Seal (for Lh Side)

Toyota Corolla Cross (2022-2024) Service Manual / Drivetrain / K120f (cvt) / Front Differential Oil Seal (for Lh Side)

Components

COMPONENTS

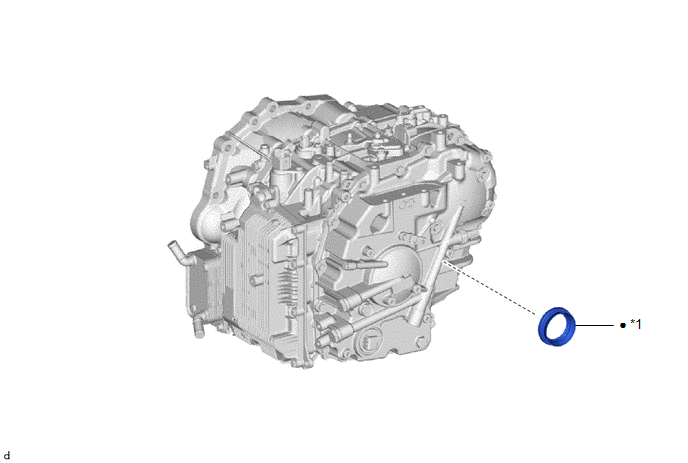

ILLUSTRATION

*1

FRONT DRIVE SHAFT OIL SEAL LH

-

-

●

Non-reusable part

-

-

Replacement

REPLACEMENT

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the front drive shaft oil seal LH removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replacement Part or Procedure

Necessary Procedures

Effect/Inoperative Function When Necessary Procedures are not Performed

Link

CVT fluid

ATF thermal degradation estimate reset

The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly

Bleed air from oil pump (continuously variable transaxle assembly)

Stop and start system

Front wheel alignment adjustment
  • Perform "Reset Memory"
  • Perform "Calibration"
  • DTCs are stored
  • ABS warning light illuminates
  • Slip indicator light illuminates
  • Electronically controlled brake system does not operate correctly

Reset memory

Dynamic torque control AWD system

Suspension, tires, etc.

Rear television camera assembly optical axis (Back camera position setting)

Parking assist monitor system

Initialize headlight ECU sub-assembly LH

Automatic headlight beam level control system

PROCEDURE

1. REMOVE FRONT DRIVE SHAFT ASSEMBLY LH

Click here

2. REMOVE FRONT DRIVE SHAFT OIL SEAL LH

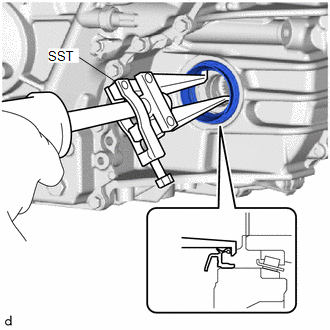

(a) Using SST, remove the front drive shaft oil seal LH from the continuously variable transaxle assembly.

SST: 09308-00010

NOTICE:

Do not damage the continuously variable transaxle assembly.

3. INSTALL FRONT DRIVE SHAFT OIL SEAL LH

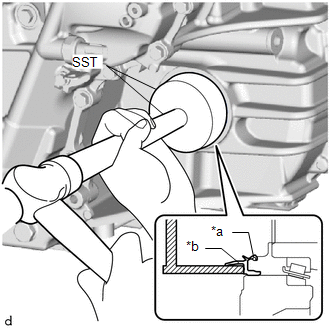

(a) Using SST and a hammer, install a new front drive shaft oil seal LH to the continuously variable transaxle assembly.

*a

Inner Lip

*b

Outer Lip

SST: 09950-70010

09951-07150

SST: 09649-17010

Standard Depth:

-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

NOTICE:

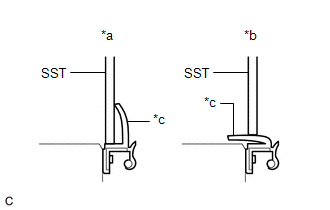

  • Make sure that the outer lip of the front drive shaft oil seal LH is not pinched by SST.

    *a

    Correct

    *b

    Incorrect

    *c

    Outer Lip
  • Do not allow foreign matter to attach to the inner lip and outer lip of the front drive shaft oil seal LH.
  • Do not install the front drive shaft oil seal LH at an angle.
  • Do not remove the grease from the inner lip and outer lip of the front drive shaft oil seal LH.

4. INSTALL FRONT DRIVE SHAFT ASSEMBLY LH

Click here
