Toyota Corolla Cross: Installation

INSTALLATION

CAUTION / NOTICE / HINT

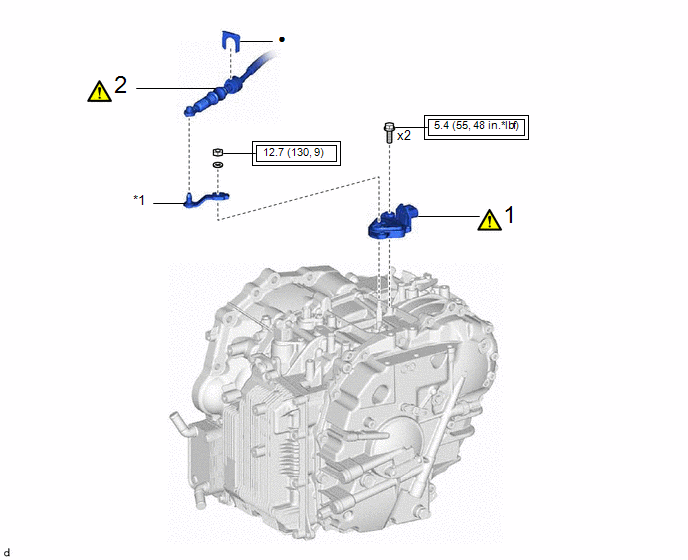

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

PARK/NEUTRAL POSITION SWITCH ASSEMBLY

84540

-

-

2

TRANSMISSION CONTROL CABLE ASSEMBLY

33820B

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

Non-reusable part

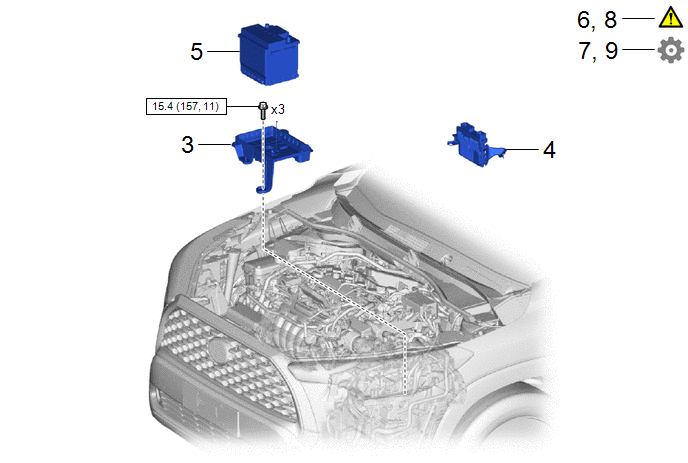

Procedure

Part Name Code

3

BATTERY CLAMP SUB-ASSEMBLY

74404A

-

-

-

4

ECM

89661

-

-

-

5

AUXILIARY BATTERY

-

-

-

-

6

INSPECT SHIFT LEVER POSITION

-

-

-

7

ADJUST SHIFT LEVER POSITION

-

-

-

8

INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY

-

-

-

9

ADJUST PARK/NEUTRAL POSITION SWITCH ASSEMBLY

-

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

PROCEDURE

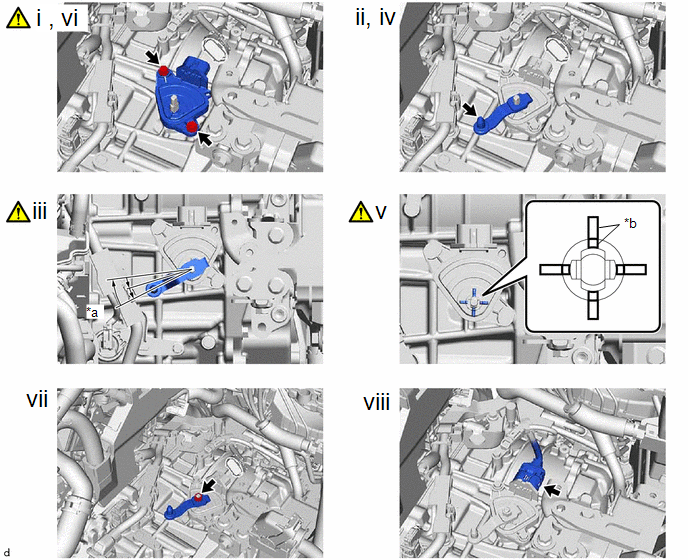

1. INSTALL PARK/NEUTRAL POSITION SWITCH ASSEMBLY

*a

N

*b

Protrusion

(1) Temporarily install the park/neutral position switch assembly to the transaxle case sub-assembly with the 2 bolts.

(2) Temporarily install the transmission control shaft lever to the manual valve lever shaft.

(3) Turn the transmission control shaft lever clockwise until it stops, then turn it counterclockwise 2 notches.

NOTICE:

If the transmission control shaft lever is turned counterclockwise more than necessary, manual valve link lever sub-assembly may separate from the manual valve.

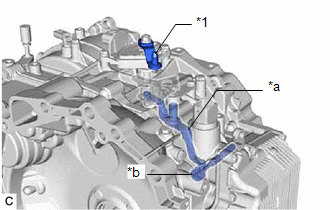

*1

Transmission Control Shaft Lever

*a

Manual Valve Link Lever Sub-assembly

*b

Manual Valve

(4) Remove the transmission control shaft lever from the manual valve lever shaft.

(5) Align the protrusions of the park/neutral position switch assembly as shown in the illustration.

(6) Hold the park/neutral position switch assembly in that position and tighten the 2 bolts.

Torque:

5.4 N·m {55 kgf·cm, 48 in·lbf}

(7) Install the transmission control shaft lever to the manual valve lever shaft with the washer and nut.

Torque:

12.7 N·m {130 kgf·cm, 9 ft·lbf}

NOTICE:

Be careful of the direction of the transmission control shaft lever.

(8) Connect the park/neutral position switch connector.

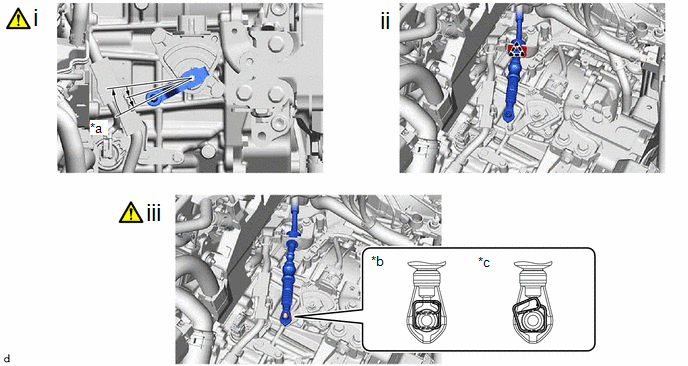

2. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

NOTICE:

Before connecting the transmission control cable assembly, check that the shift lever is in N.

*a

N

*b

Correct

*c

Incorrect

-

-

(1) Turn the transmission control shaft lever clockwise until it stops, then turn it counterclockwise 2 notches.

NOTICE:

If the transmission control shaft lever is turned counterclockwise more than necessary, manual valve link lever sub-assembly may separate from the manual valve.

*1

Transmission Control Shaft Lever

*a

Manual Valve Link Lever Sub-assembly

*b

Manual Valve

(2) Connect the transmission control cable assembly to the No. 1 transmission control cable bracket with a new clip.

(3) Connect the transmission control cable assembly to the transmission control shaft lever as shown in the illustration.

3. INSTALL BATTERY CLAMP SUB-ASSEMBLY

Click here

4. INSTALL ECM

Click here

5. INSTALL AUXILIARY BATTERY

Click here

6. INSPECT SHIFT LEVER POSITION

Click here

7. ADJUST SHIFT LEVER POSITION

Click here

8. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY

Click here

9. ADJUST PARK/NEUTRAL POSITION SWITCH ASSEMBLY

Click here
