Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Exterior / Lighting (ext) / Headlight Assembly (for Bulb Type Clearance Light) / Installation

INSTALLATION

CAUTION / NOTICE / HINT

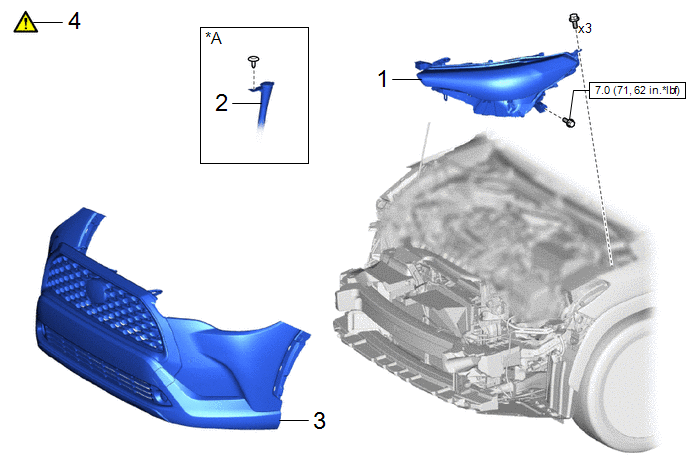

COMPONENTS (INSTALLATION)

Procedure

Part Name Code

1

HEADLIGHT ASSEMBLY

-

-

-

-

2

WASHER INLET SUB-ASSEMBLY

85301

-

-

-

3

FRONT BUMPER ASSEMBLY

-

-

-

-

4

ADJUST HEADLIGHT AIMING

-

-

-

*A

for RH Side

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL HEADLIGHT ASSEMBLY

Torque:

7.0 N·m {71 kgf·cm, 62 in·lbf}

2. INSTALL WASHER INLET SUB-ASSEMBLY (for RH Side)

3. INSTALL FRONT BUMPER ASSEMBLY

  • for Sport Package:

    Click here

  • except Sport Package:

    Click here

4. ADJUST HEADLIGHT AIMING

Click here
