Toyota Corolla Cross (2022-2025) Service Manual / Vehicle Exterior / Exterior Panels / Trim / Front Pillar Upper Cover / Disassembly

DISASSEMBLY

CAUTION / NOTICE / HINT

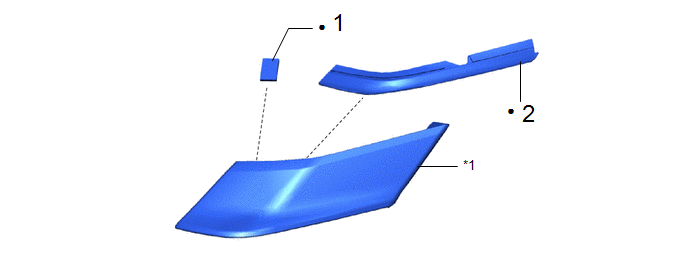

COMPONENTS (DISASSEMBLY)

Procedure

Part Name Code

1

NO. 1 MOULDING TAPE

75895A

-

-

-

2

FRONT PILLAR COVER PROTECTOR

61992

-

-

-

*1

FRONT PILLAR UPPER COVER

-

-

●

Non-reusable part

-

-

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

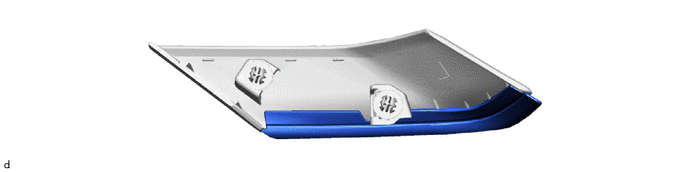

1. REMOVE NO. 1 MOULDING TAPE

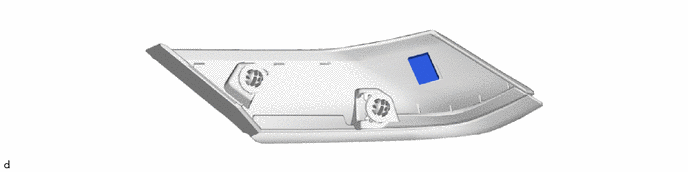

2. REMOVE FRONT PILLAR COVER PROTECTOR
