Toyota Corolla Cross: Disassembly
DISASSEMBLY
CAUTION / NOTICE / HINT

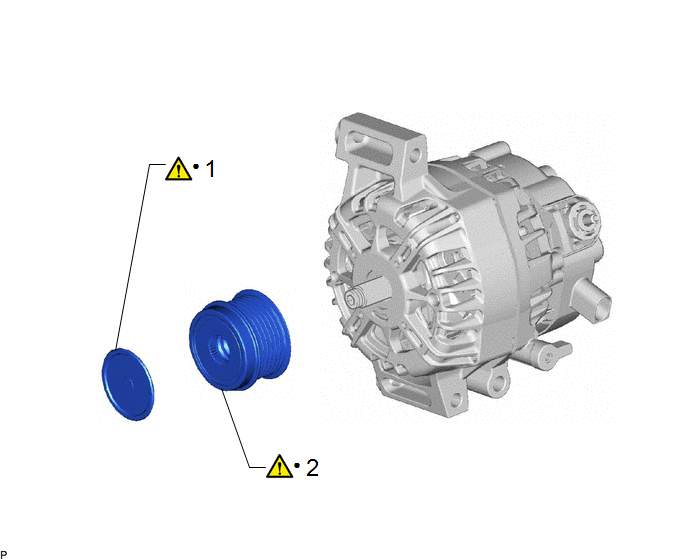

COMPONENTS (DISASSEMBLY)
|
Procedure |
Part Name Code |
.png) |
.png) |
.png) |
|
|---|---|---|---|---|---|
|
1 |
GENERATOR PULLEY CAP |
27416 |
|
- |
- |
|
2 |
GENERATOR PULLEY WITH CLUTCH |
27415 |
|
- |
- |
.gif)
|
● |
Non-reusable part |
- |
- |
PROCEDURE

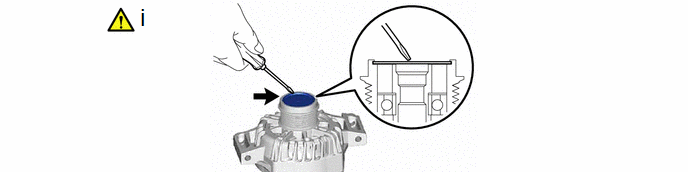

1. REMOVE GENERATOR PULLEY CAP
(1) Remove the generator pulley cap from the generator pulley with clutch.
NOTICE:
- Do not reuse the generator pulley cap.
- If the generator pulley cap is removed, replace the generator pulley cap and generator pulley with clutch with new ones as the correct grease amount cannot be confirmed.
HINT:
Although grease will be observed when the generator pulley cap is removed, this does not indicate a malfunction.

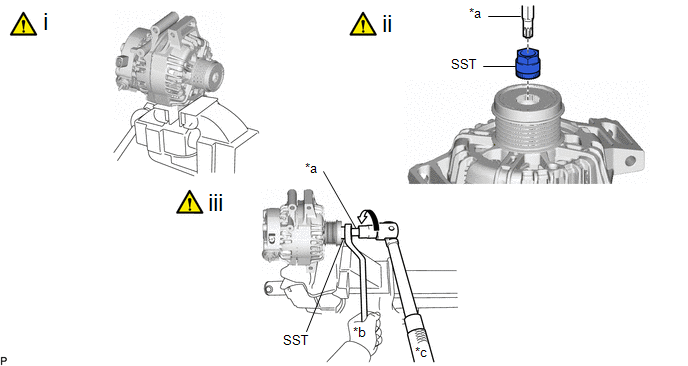

2. REMOVE GENERATOR PULLEY WITH CLUTCH
|
*a |
T50 "TORX" Socket Wrench |
*b |
Hold |
|
*c |
Turn |
- |
- |
(1) Secure the generator assembly in a vise between aluminum plates.
NOTICE:
Do not overtighten the vise.
(2) Set SST and an T50 "TORX" socket wrench as shown in the illustration.
SST: 09820-30010
(3) Loosen the generator pulley with clutch by turning SST as shown in the illustration.
NOTICE:
Check that the generator assembly is secured in the vise tightly.

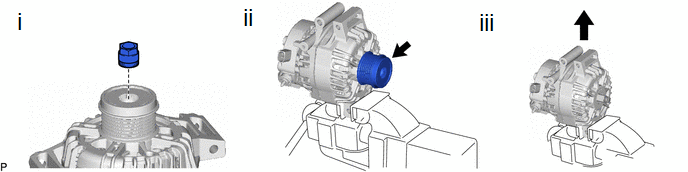

(1) Remove SST from the generator pulley with clutch.
(2) Remove the generator pulley with clutch from the rotor shaft.
(3) Remove the generator assembly from the vise.
