Toyota Corolla Cross (2022-2024) Service Manual / Power Source & Network / M20a-fks (battery / Charging) / Generator / Inspection

INSPECTION

PROCEDURE

1. INSPECT GENERATOR W/CLUTCH PULLEY

(a) Hold the center of the generator pulley with clutch, and confirm that the outer ring turns counterclockwise and does not turn clockwise.

OK:

The outer ring turns counterclockwise and does not turn clockwise.

If the result is not as specified, replace the generator pulley with clutch.

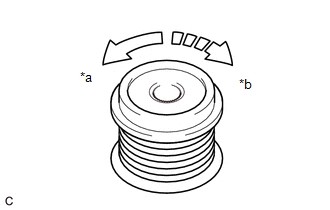

*a

Free

*b

Lock
