Toyota Corolla Cross: Differential Oil

Components

COMPONENTS

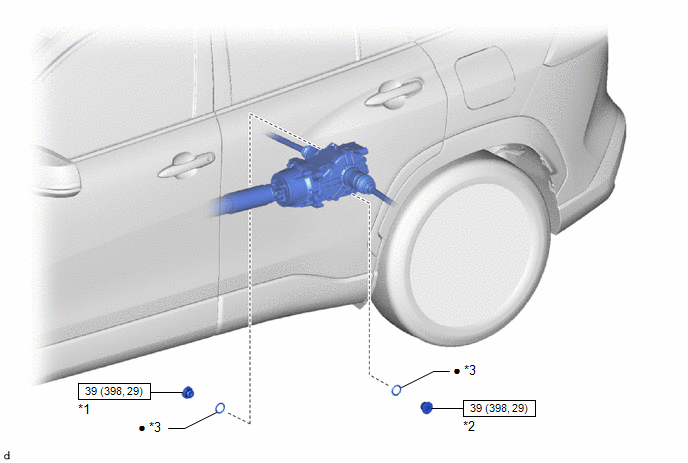

ILLUSTRATION

*1

REAR DIFFERENTIAL FILLER PLUG

*2

REAR DIFFERENTIAL DRAIN PLUG

*3

GASKET

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

On-vehicle Inspection

ON-VEHICLE INSPECTION

PROCEDURE

1. INSPECT DIFFERENTIAL OIL

(a) Stop the vehicle on a level surface.

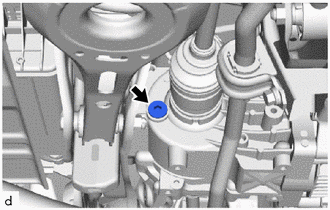

(b) Using a 10 mm hexagon socket wrench, remove the rear differential filler plug and gasket.

(c) Check that the oil level is between 0 to 5 mm (0 to 0.197 in.) from the bottom lip of the rear differential filler plug hole.

If the result is not as specified, add differential oil.

Standard oil type and viscosity:

Toyota Genuine Differential Gear Oil LT 75W-85 GL-5 or equivalent

NOTICE:

  • When adding oil, pour it slowly.
  • Too much or too little oil will lead to rear differential problems.

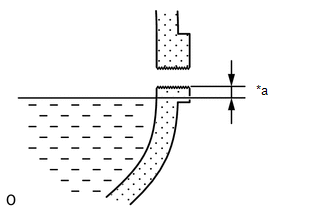

*a

0 to 5 mm (0 to 0.196 in.)

(d) If the oil level is low, refill oil after checking for oil leaks.

(e) Using a 10 mm hexagon socket wrench, install a new gasket and the rear differential filler plug.

Torque:

39 N·m {398 kgf·cm, 29 ft·lbf}
