Toyota Corolla Cross: Parts Location
PARTS LOCATION

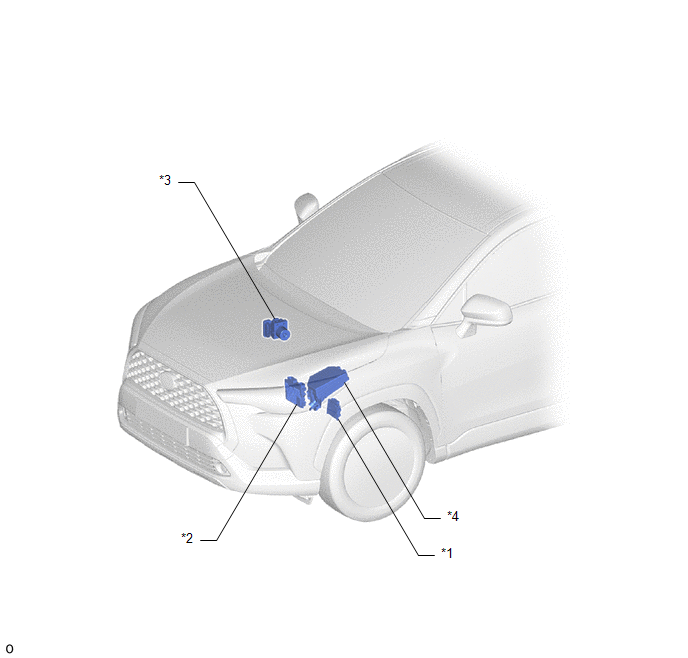

ILLUSTRATION
.png)
|
*1 |
TCM |
*2 |
ECM |
|
*3 |
BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU |
*4 |
NO. 1 ENGINE ROOM RELAY BLOCK ASSEMBLY |

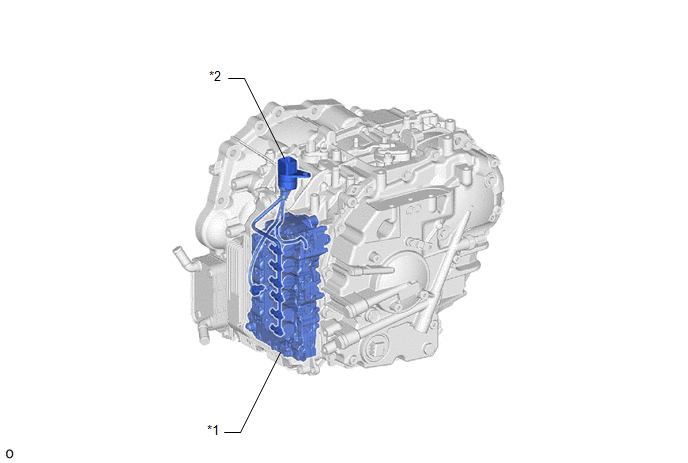

ILLUSTRATION
|
*1 |
TRANSMISSION VALVE BODY ASSEMBLY - SHIFT SOLENOID VALVE SLG - SHIFT SOLENOID VALVE SL1 - SHIFT SOLENOID VALVE SL2 - SHIFT SOLENOID VALVE SLU - SHIFT SOLENOID VALVE SLP - SHIFT SOLENOID VALVE SLS |
*2 |
TRANSMISSION WIRE - CVT FLUID TEMPERATURE SENSOR |

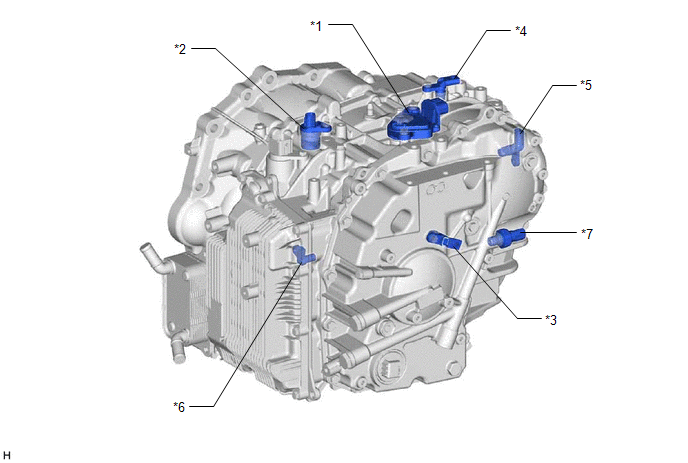

ILLUSTRATION
|
*1 |
PARK/NEUTRAL POSITION SWITCH ASSEMBLY |
*2 |
SHIFT STROKE SENSOR |
|
*3 |
TRANSMISSION REVOLUTION SENSOR (NT) |
*4 |
TRANSMISSION REVOLUTION SENSOR (NOUT) |
|
*5 |
TRANSMISSION REVOLUTION SENSOR (NSS) |
*6 |
TRANSMISSION REVOLUTION SENSOR (NC1) |
|
*7 |
OIL PRESSURE SENSOR |
- |
- |

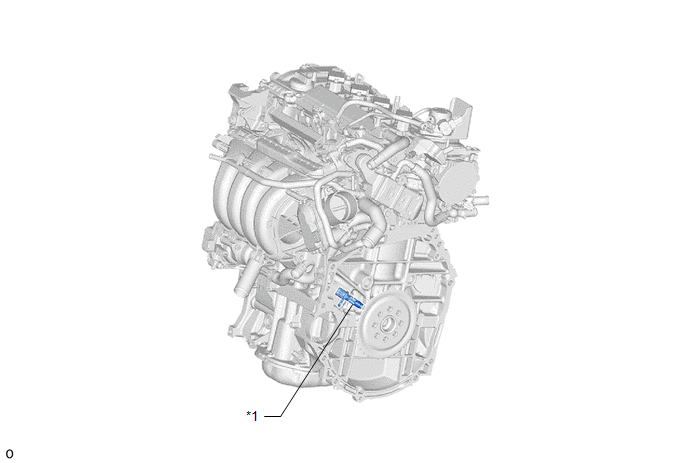

ILLUSTRATION
|
*1 |
CRANKSHAFT POSITION SENSOR |
- |
- |

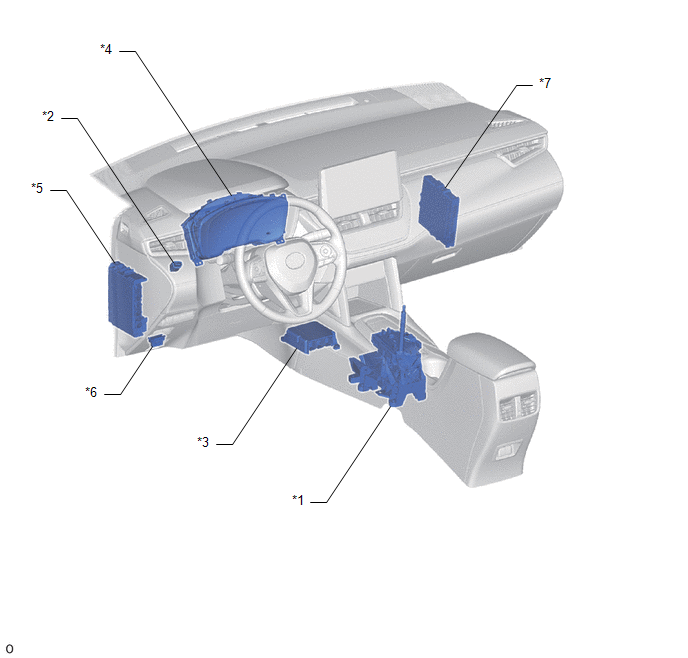

ILLUSTRATION
|
*1 |
SHIFT LOCK CONTROL UNIT ASSEMBLY - TRANSMISSION CONTROL SWITCH |
*2 |
STOP LIGHT SWITCH ASSEMBLY |
|
*3 |
AIRBAG ECU ASSEMBLY - YAW RATE AND ACCELERATION SENSOR |
*4 |
COMBINATION METER ASSEMBLY |
|
*5 |
POWER DISTRIBUTION BOX ASSEMBLY |
*6 |
DLC3 |
|
*7 |
ENGINE STOP AND START ECU |
- |
- |
