Toyota Corolla Cross: Check CAN Communication Connection

DESCRIPTION

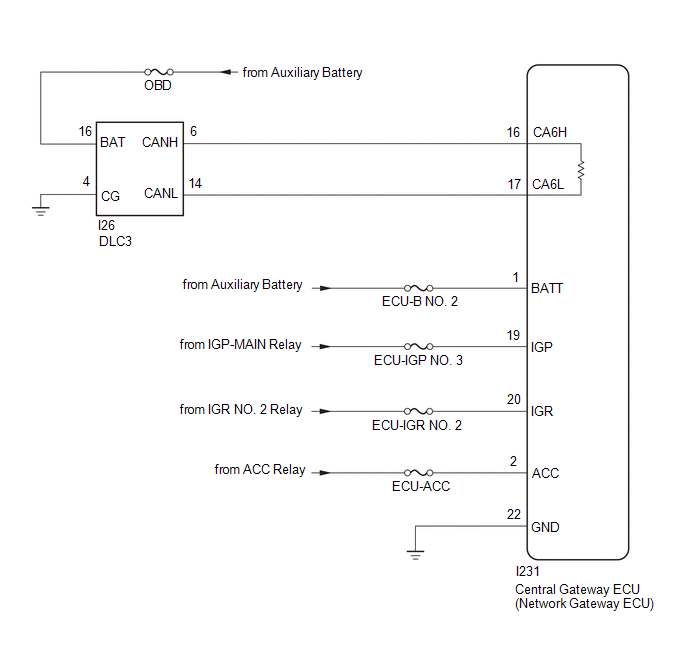

WIRING DIAGRAM

CAUTION / NOTICE / HINT

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.

NOTICE:

• Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.

  Click here

• Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 1 minute or more before measuring the resistance.
• After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

  Click here

• When disconnecting and reconnecting the auxiliary battery.

  HINT:

  When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

  Click here

• Some parts must be initialized and set when replacing or removing and installing parts.

  Click here

• After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.

  DTC check procedure: Turn the ignition switch to ON and wait for 1 minute or more. Then operate the suspected malfunctioning system and drive the vehicle at 60 km/h (37 mph) or more for 5 minutes or more.

• After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed as normal.

  Click here

• Inspect the fuses for circuits related to this system before performing the following procedure.

HINT:

• Before disconnecting related connectors for inspection, push in on each connector body to check that the connector is not loose or disconnected.
• When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.

PROCEDURE

HINT:

Read the GTS operator's manual before use.

Click here

(a) Connect the GTS to the DLC3 of another vehicle.

(b) Turn the ignition switch to ON.

(c) Turn the GTS on.

(d) Check that the GTS and ECUs can communicate with the ignition switch ON.

HINT:

• ECUs and sensors are not displayed on the "Communication Bus Check" screen when the GTS cannot communicate with the vehicle.
• If communication between the GTS and ECUs is not possible, either the GTS or vehicle has a malfunction.
• If communication between the GTS and ECUs is still not possible even when the GTS is connected to another vehicle, the GTS has a malfunction. Perform the self tests described in the GTS operator's manual. (The GTS may be malfunctioning or its auxiliary battery may be discharged.)

B

REFER TO GTS OPERATOR'S MANUAL

A

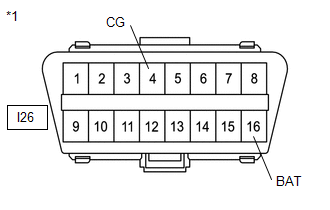

(a) Measure the voltage according to the value(s) in the table below. Standard Voltage: Tester Connection Switch Condition Specified Condition I26-16 (BAT) - Body ground Ignition switch off 11 to 14 V

*1 DLC3

(b) Disconnect the cable from the negative (-) auxiliary battery terminal.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (DLC3 POWER SOURCE CIRCUIT)

OK

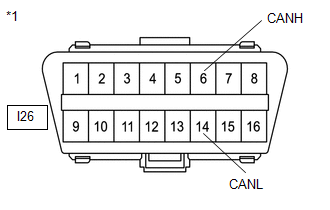

(a) Measure the resistance according to the value(s) in the table below. Standard Resistance: Tester Connection Condition Specified Condition I26-6 (CANH) - I26-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal Below 70 Ω

*1 DLC3

NG

GO TO STEP 6

OK

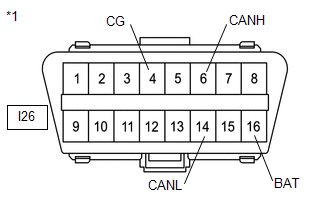

(a) Measure the resistance according to the value(s) in the table below. Standard Resistance: Tester Connection Condition Specified Condition I26-6 (CANH) - I26-14 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 54 Ω or higher I26-6 (CANH) - I26-4 (CG) Cable disconnected from negative (-) auxiliary battery terminal 200 Ω or higher I26-14 (CANL) - I26-4 (CG) I26-6 (CANH) - I26-16 (BAT) Cable disconnected from negative (-) auxiliary battery terminal 6 kΩ or higher I26-14 (CANL) - I26-16 (BAT)

*1 DLC3

NG

GO TO STEP 7

OK

(a) Disconnect the central gateway ECU (network gateway ECU) connector.

(b) Measure the resistance according to the value(s) in the table below. Standard Resistance: Tester Connection Condition Specified Condition I231-22 (GND) - Body ground Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω

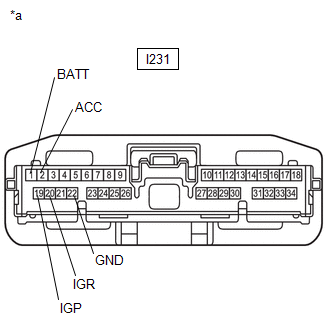

*a Front view of wire harness connector (to Central Gateway ECU (Network Gateway ECU))

(c) Reconnect the cable to the negative (-) auxiliary battery terminal.

(d) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)

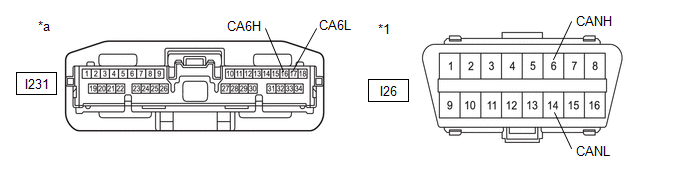

(a) Disconnect the central gateway ECU (network gateway ECU) connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) - DLC3)

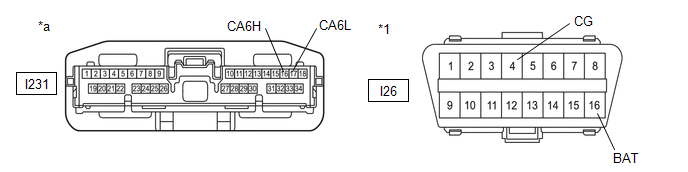

(a) Disconnect the central gateway ECU (network gateway ECU) connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

OK

REPLACE CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (DLC3 - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))
