Toyota Corolla Cross: Bus Buffer ECU Communication Stop Mode

Toyota Corolla Cross (2022-2024) Service Manual / Power Source & Network / Networking / Can Communication System (for Gasoline Model) / Bus Buffer ECU Communication Stop Mode

DESCRIPTION

Detection Item

Symptom

Trouble Area

Bus Buffer ECU Communication Stop Mode

Communication stop for "Accessory Gateway" is indicated on the "Communication Bus Check" screen of the GTS.

Click here

  • Option connector (bus buffer ECU) main line or connector
  • CAN compatible optional device
  • Main body ECU (multiplex network body ECU)

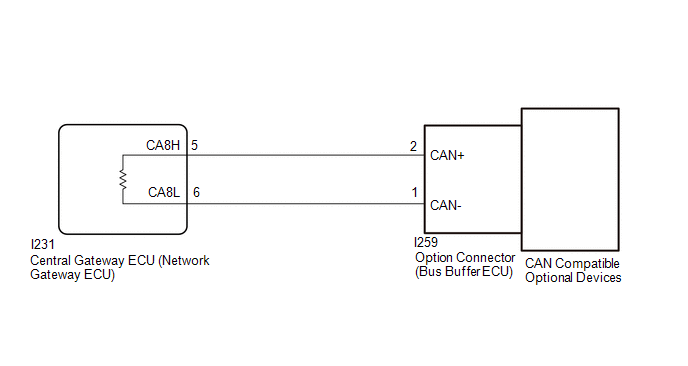

WIRING DIAGRAM

CAUTION / NOTICE / HINT

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.

NOTICE:

  • Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.

    Click here

  • Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 1 minute or more before measuring the resistance.
  • After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Click here

  • When disconnecting and reconnecting the auxiliary battery.

    HINT:

    When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

    Click here

  • Some parts must be initialized and set when replacing or removing and installing parts.

    Click here

  • After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.

    DTC check procedure: Turn the ignition switch to ON and wait for 1 minute or more. Then operate the suspected malfunctioning system and drive the vehicle at 60 km/h (37 mph) or more for 5 minutes or more.

  • After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed as normal.

    Click here

  • Before replacing the main body ECU (multiplex network body ECU), refer to Registration.

    Click here

HINT:

  • Before disconnecting related connectors for inspection, push in on each connector body to check that the connector is not loose or disconnected.
  • When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.

PROCEDURE

1.

CHECK VEHICLE TYPE

(a) Check whether dealer installed options that support CAN communication are installed.

Result

Proceed to

Installed

A

Not installed

B
B

GO TO STEP 3

A

2.

CHECK FOR OPEN IN CAN BUS LINES (OPTION CONNECTOR (BUS BUFFER ECU) MAIN LINE)

(a) Disconnect the cable from the negative (-) auxiliary battery terminal.

(b) Disconnect the option connector (bus buffer ECU) connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

I259-2 (CAN+) - I259-1 (CAN-)

Cable disconnected from negative (-) auxiliary battery terminal

108 to 132 Ω

*a

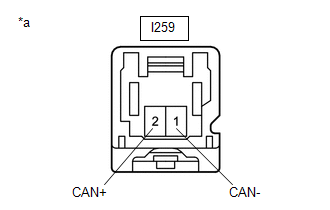

Front view of wire harness connector

(to Option Connector (Bus Buffer ECU))
OK

REPAIR OR REPLACE CAN COMPATIBLE OPTIONAL DEVICE
NG

REPAIR OR REPLACE CAN MAIN BUS LINES OR CONNECTOR (OPTION CONNECTOR (BUS BUFFER ECU))

3.

CHECK FOR DTC

(a) Initialize the ECU.

Body Electrical > Central Gateway > Utility

Tester Display

Initialization
Body Electrical > Main Body > Utility

Tester Display

Initialization

(b) Clear the DTCs.

Body Electrical > Main Body > Clear DTCs

(c) Read the DTCs.

Body Electrical > Main Body > Trouble Codes

Result

Proceed to

DTC U111787 is not output from main body ECU (multiplex network body ECU)

A

DTC U111787 is output from main body ECU (multiplex network body ECU)

B
A

END
B

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
