Toyota Corolla Cross: Back Door Entry Lock Function does not Operate

Toyota Corolla Cross (2022-2024) Service Manual / Vehicle Interior / Theft Deterrent / Keyless Entry / Smart Key System (for Entry Function, Hev Model) / Back Door Entry Lock Function does not Operate

DESCRIPTION

If the entry lock function does not operate for the back door only, but the entry unlock function operates, the request code is being transmitted properly from the back door. In this case, there may be a problem related to the lock switch (connection between the back door opener switch sub-assembly and certification ECU (smart key ECU assembly)).

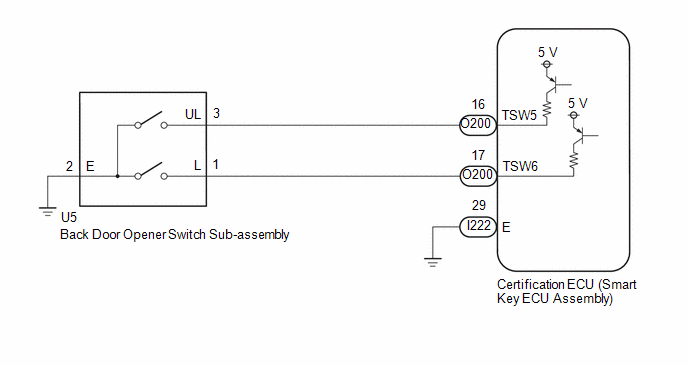

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

  • When using the GTS with the ignition switch off, connect the GTS to the DLC3 and turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the GTS and the vehicle begins. Then select the vehicle type under manual mode and enter the following menus: Body Electrical / Smart Key. While using the GTS, periodically turn a courtesy light switch on and off at intervals of 1.5 seconds or less to maintain communication between the GTS and the vehicle.
  • The smart key system (for Entry Function) uses the CAN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the smart key system (for Entry Function) after confirming that the communication systems are functioning properly.

    Click here

  • Before replacing the certification ECU (smart key ECU assembly), refer to Precaution.

    Click here

  • Check that there are no electrical key transmitter sub-assemblies in the vehicle.
  • After repair, confirm that no DTCs are output.

PROCEDURE

1.

CHECK POWER DOOR LOCK CONTROL SYSTEM

(a) When the door control switch on the multiplex network master switch assembly is operated, check that the back door lock and unlock according to the switch operation.

Click here

OK:

Back door lock/unlock operate normally.

NG

GO TO POWER DOOR LOCK CONTROL SYSTEM

OK

2.

INSPECT GTS (TRUNK LID/BACK DOOR LOCK SWITCH)

(a) Read the Data List according to the display on the GTS.

Body Electrical > Smart Key > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

Trunk Lid/Back Door Lock Switch

Back door opener switch sub-assembly (lock switch)

OFF or ON

OFF: Back door opener switch sub-assembly (lock switch) not pressed

ON: Back door opener switch sub-assembly (lock switch) pressed
  • Displays whether the back door opener switch sub-assembly (lock switch) is on or off.
  • Use this Data List item to help determine if there is a switch malfunction when the back door lock function does not operate.
Body Electrical > Smart Key > Data List

Tester Display

Trunk Lid/Back Door Lock Switch

HINT:

When checking the operation of the entry lock function several times, it can be operated up to 2 times consecutively. To operate the function 3 times or more consecutively, the doors need to be unlocked once. However, this is only for the entry lock function, other door lock operations, such as a wireless door lock operation can be performed consecutively.

OK:

The GTS display changes correctly in response to the operation of the back door opener switch sub-assembly.

OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

NG

3.

CHECK HARNESS AND CONNECTOR (BACK DOOR OPENER SWITCH SUB-ASSEMBLY - CERTIFICATION ECU (SMART KEY ECU ASSEMBLY))

(a) Disconnect the O200 certification ECU (smart key ECU assembly) connector.

(b) Disconnect the U5 back door opener switch sub-assembly connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

O200-17 (TSW6) - U5-1 (L)

Always

Below 1 Ω

O200-17 (TSW6) or U5-1 (L) - Other terminals and body ground

Always

10 kΩ or higher
NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
OK

4.

INSPECT BACK DOOR OPENER SWITCH SUB-ASSEMBLY (LOCK SWITCH)

Click here

OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

NG

REPLACE BACK DOOR OPENER SWITCH SUB-ASSEMBLY
