Toyota Corolla Cross: Windshield wipers and washer

Operating the lever can use the windshield wipers or the washer.

NOTICE

■When the windshield is dry

Do not use the wipers, as they may damage the windshield.

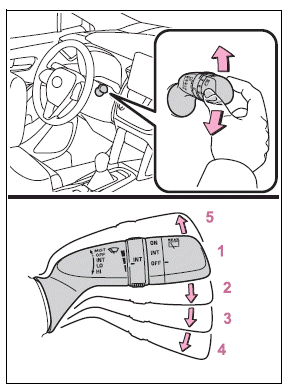

Operating the wiper lever

Operating the lever operates the wipers or washer as follows.

Operating the lights and wipers

  1. (U.S.A.) or (Canada)
    Off
  2. (U.S.A.) or (Canada)
    Intermittent windshield wiper operation
  3. (U.S.A.) or (Canada)
    Low speed windshield wiper operation
  4. (U.S.A.) or (Canada)
    High speed windshield wiper operation
  5. (U.S.A.) or (Canada)
    Temporary operation

Interval adjustment type only: Wiper intervals can be adjusted when intermittent operation is selected.

Operating the lights and wipers

  1. Increases the intermittent windshield wiper frequency
  2. Decreases the intermittent windshield wiper frequency

Operating the lights and wipers

  1. Washer/wiper dual operation

Pulling the lever operates the wipers and washer.

Wipers will automatically operate a couple of times after the washer squirts.

■The windshield wiper and washer can be operated when

The engine switch is in ON.

■If no windshield washer fluid sprays

Check that the washer nozzles are not blocked if there is washer fluid in the windshield washer fluid reservoir.

WARNING

■Caution regarding the use of washer fluid

When it is cold, do not use the washer fluid until the windshield becomes warm. The fluid may freeze on the windshield and cause low visibility. This may lead to an accident, resulting in death or serious injury.

NOTICE

■When there is no washer fluid spray from the nozzle

Damage to the washer fluid pump may be caused if the lever is pulled toward you and held continually.

■When a nozzle becomes blocked

In this case, contact your Toyota dealer. Do not try to clear it with a pin or other object. The nozzle will be damaged.
