Toyota Corolla Cross: Removal

REMOVAL

CAUTION / NOTICE / HINT

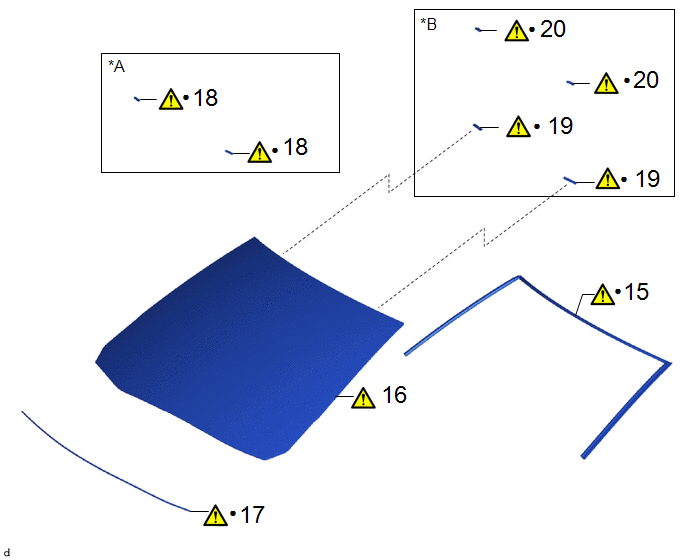

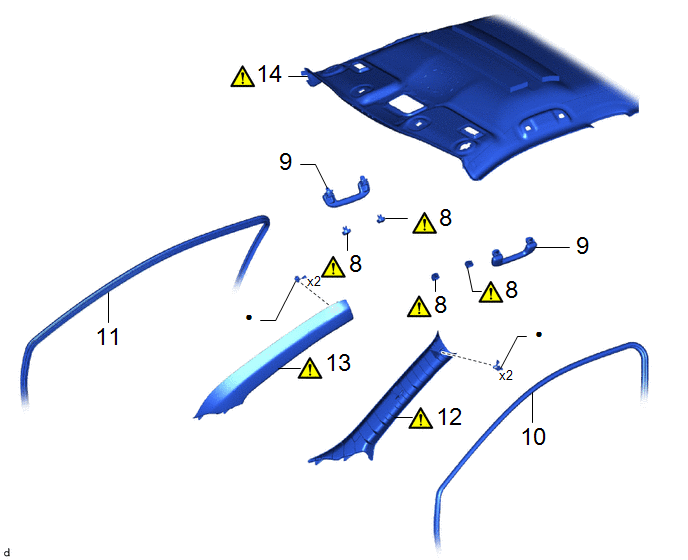

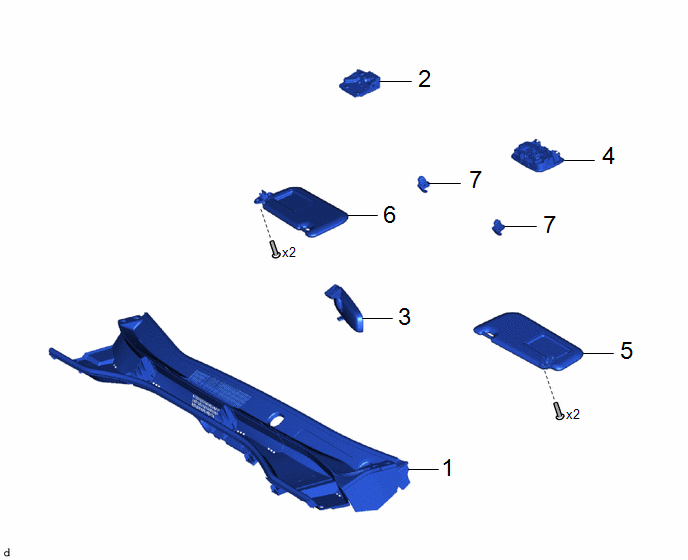

COMPONENTS (REMOVAL)

Procedure

Part Name Code

1

COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

55708

-

-

-

2

FORWARD RECOGNITION CAMERA

8646C

-

-

-

3

INNER REAR VIEW MIRROR ASSEMBLY

87810

-

-

-

4

MAP LIGHT ASSEMBLY

81260A

-

-

-

5

VISOR ASSEMBLY LH

74320

-

-

-

6

VISOR ASSEMBLY RH

74310

-

-

-

7

VISOR HOLDER

74348

-

-

-

Procedure

Part Name Code

8

ASSIST GRIP COVER

74612

-

-

9

ASSIST GRIP SUB-ASSEMBLY

74610A

-

-

-

10

FRONT DOOR OPENING TRIM WEATHERSTRIP LH

62312B

-

-

-

11

FRONT DOOR OPENING TRIM WEATHERSTRIP RH

62311B

-

-

-

12

FRONT PILLAR GARNISH ASSEMBLY LH

62212B

-

-

13

FRONT PILLAR GARNISH ASSEMBLY RH

62211U

-

-

14

ROOF HEADLINING ASSEMBLY

63311C

-

-

Non-reusable part

-

-

Procedure

Part Name Code

15

WINDSHIELD OUTSIDE MOULDING

75533G

-

-

16

WINDSHIELD GLASS SUB-ASSEMBLY

-

-

-

17

WINDOW GLASS ADHESIVE DAM

56117A

-

-

18

NO. 1 WINDSHIELD GLASS STOPPER

56115A

-

-

19

NO. 2 WINDSHIELD GLASS STOPPER

56116C

-

-

20

NO. 1 WINDSHIELD GLASS STOPPER

56115A

-

-

*A

for 1-piece Type

*B

for 2-piece Type

Non-reusable part

-

-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during windshield glass sub-assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

*1: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.

Windshield glass*1

Adjust forward recognition camera

  • Front Camera System
  • Automatic High Beam System

One Time Recognition:

Driving Adjustment:

NOTICE:

  • When replacing the windshield glass of a vehicle equipped with a forward recognition camera, make sure to use a Toyota genuine part. If a non-Toyota genuine part is used, the forward recognition camera may not be able to be installed due to a missing bracket. Also, the front camera system or automatic high beam system may not operate properly due to a difference in the transmissivity or black ceramic border.
  • Make sure to use Toyota Genuine Windshield Glass Adhesive (High Modulus Type) or equivalent.

PROCEDURE

1. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

Click here

2. REMOVE FORWARD RECOGNITION CAMERA

Click here

3. REMOVE INNER REAR VIEW MIRROR ASSEMBLY

  • w/ EC Mirror:

    Click here

  • w/o EC Mirror:

    Click here

4. REMOVE MAP LIGHT ASSEMBLY

Click here

5. REMOVE VISOR ASSEMBLY LH

Click here

6. REMOVE VISOR ASSEMBLY RH

(a) Use the same procedure as for the LH side.

7. REMOVE VISOR HOLDER

Click here

8. REMOVE ASSIST GRIP COVER

Click here

9. REMOVE ASSIST GRIP SUB-ASSEMBLY

Click here

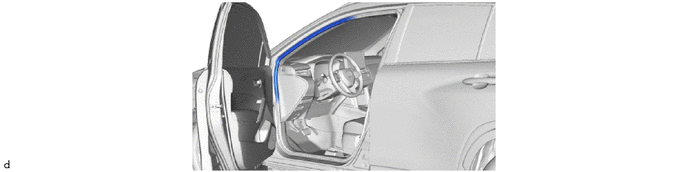

10. SEPARATE FRONT DOOR OPENING TRIM WEATHERSTRIP LH

11. SEPARATE FRONT DOOR OPENING TRIM WEATHERSTRIP RH

(a) Use the same procedure as for the LH side.

12. REMOVE FRONT PILLAR GARNISH ASSEMBLY LH

Click here

13. REMOVE FRONT PILLAR GARNISH ASSEMBLY RH

(a) Use the same procedure as for the LH side.

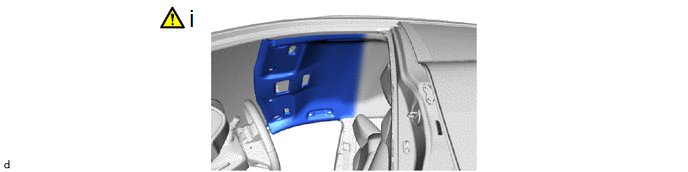

14. SEPARATE ROOF HEADLINING ASSEMBLY

NOTICE:

Do not damage the roof headlining assembly or vehicle interior.

(1) Slightly lower the front section of the roof headlining assembly so that the windshield glass sub-assembly can be removed.

15. REMOVE WINDSHIELD OUTSIDE MOULDING

NOTICE:

Be careful not to damage the windshield glass sub-assembly and exterior ornaments.

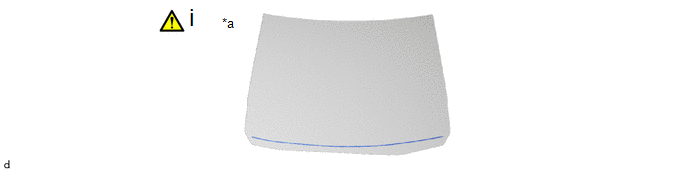

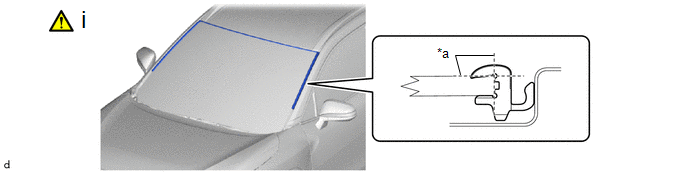

*a

Cut

-

-

(1) Using a knife, cut off the windshield outside moulding as shown in the illustration.

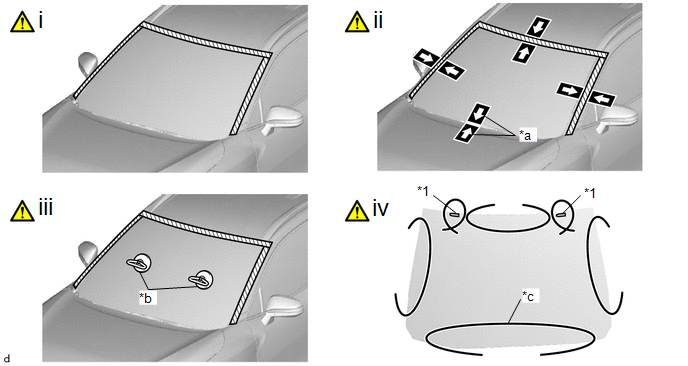

16. REMOVE WINDSHIELD GLASS SUB-ASSEMBLY

*1

Windshield Glass Stopper

-

-

*a

Matchmark

*b

Suction Cup

*c

Piano Wire

-

-

(1) Apply protective tape to the area around the installation position of the windshield glass sub-assembly on the vehicle body to prevent it from being scratched as shown in the illustration.

(2) Place matchmarks on the windshield glass sub-assembly and vehicle body at the locations indicated in the illustration.

HINT:

Matchmarks are not necessary if the windshield glass sub-assembly is not going to be reused.

(3) Install the suction cups to the windshield glass sub-assembly.

(4) Cut the adhesive by the below procedure.

1. Pass a piano wire between the vehicle body and windshield glass sub-assembly from the interior.

2. Tie both wire ends to wooden blocks or similar objects that can serve as handles.

3. Cut the adhesive by pulling the piano wire around the windshield glass sub-assembly.

NOTICE:

  • When separating the windshield glass sub-assembly, be careful not to damage the paint or interior and exterior ornaments.
  • To prevent the safety pad from being scratched when removing the windshield glass sub-assembly, place a plastic sheet between the piano wire and safety pad.
  • Be careful not to damage the front window inner center moulding.

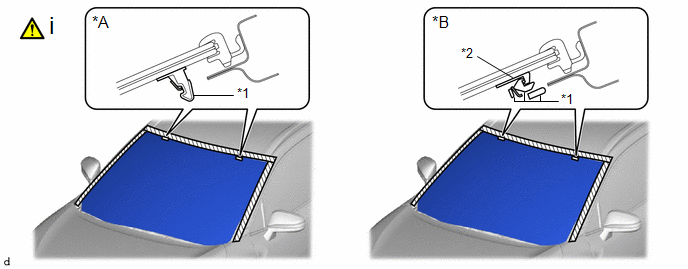

  • The No. 1 windshield glass stoppers and No. 2 windshield glass stoppers are installed to the windshield glass sub-assembly as shown in the illustration. Be careful not to damage the windshield glass sub-assembly when cutting the adhesive.

*A

for 1-piece Type

*B

for 2-piece Type

*1

No. 1 Windshield Glass Stopper

*2

No. 2 Windshield Glass Stopper

(1) Using suction cups, disengage the windshield glass stoppers to remove the windshield glass sub-assembly.

NOTICE:

  • To prevent the windshield glass sub-assembly from falling when performing this operation, be sure to hold the windshield glass sub-assembly using suction cups.
  • Be careful not to drop the windshield glass sub-assembly.
  • Leave as much adhesive on the vehicle body as possible when removing the windshield glass sub-assembly.

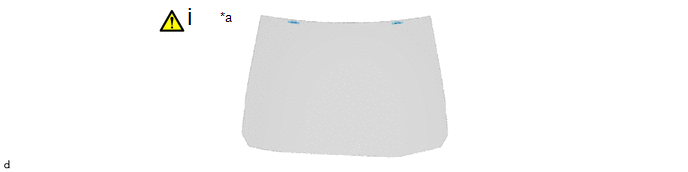

17. REMOVE WINDOW GLASS ADHESIVE DAM

*a

Back Side of Windshield Glass Sub-assembly

-

-

(1) When reusing the windshield glass sub-assembly.

1. Using a scraper, remove the window glass adhesive dam.

NOTICE:

  • Be careful not to damage the windshield glass sub-assembly.
  • Be sure to replace the window glass adhesive dam with a new one.

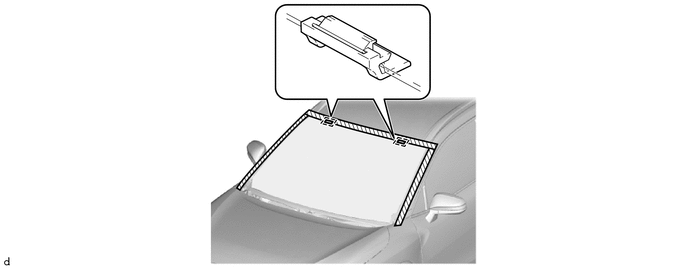

18. REMOVE NO. 1 WINDSHIELD GLASS STOPPER (for 1-piece Type)

*a

Back Side of Windshield Glass Sub-assembly

-

-

(1) When reusing the windshield glass sub-assembly.

1. Using a scraper, remove the 2 No. 1 windshield glass stoppers.

NOTICE:

  • Be careful not to damage the windshield glass sub-assembly.
  • Be sure to replace the 2 No. 1 windshield glass stoppers with new ones.

19. REMOVE NO. 2 WINDSHIELD GLASS STOPPER (for 2-piece Type)

*a

Back Side of Windshield Glass Sub-assembly

-

-

(1) When reusing the windshield glass sub-assembly.

1. Using a scraper, remove the 2 No. 2 windshield glass stoppers.

NOTICE:

  • Be careful not to damage the windshield glass sub-assembly.
  • Be sure to replace the 2 No. 2 windshield glass stoppers with new ones.

20. REMOVE NO. 1 WINDSHIELD GLASS STOPPER (for 2-piece Type)

NOTICE:

Be sure to replace the 2 No. 1 windshield glass stoppers with new ones.
