Toyota Corolla Cross: Utility

UTILITY

DESCRIPTION

(a) Refer to the table below and then perform the necessary operation according to the part to be replaced in order to perform calibration.

UTILITY ITEMS

ACCELERATION SENSOR ZERO POINT CALIBRATION AND SYSTEM INFORMATION MEMORIZATION

NOTICE:

• After replacing the skid control ECU (brake actuator assembly), perform acceleration sensor zero point calibration and system information memorization.
• After replacing or reinstalling the yaw rate and acceleration sensor (airbag ECU assembly), perform acceleration sensor zero point calibration and system information memorization after performing "Reset Memory".
• As the acceleration sensor zero point cannot be stored again until the current zero point is cleared, perform "Reset Memory" and acceleration sensor zero point calibration and system information memorization after replacing or removing and installing the yaw rate and acceleration sensor (airbag ECU assembly).
• While obtaining the zero point, keep the vehicle stationary and do not vibrate, tilt, move, or shake it.
• Be sure to perform this procedure on a level surface (with an inclination of less than 0.45 degrees).
• While obtaining the zero point, make sure the tire pressure is as specified and the vehicle is in full contact with the ground (not lifted up or loaded).

(a) Clear the zero point calibration data and system information.

(1) Turn the ignition switch off.

(2) Apply the parking brake.

(3) Check that the shift lever is in P.

(4) Connect the GTS to the DLC3.

(5) Turn the ignition switch to ON.

(6) Turn the GTS on.

(7) Using the GTS, perform "Reset Memory".

NOTICE:

When performing "Reset Memory", each warning light or indicator light illuminates or flashes, and a DTC indicating that learning is incomplete and/or vehicle control history (RoB) is stored.

(b) Perform acceleration sensor zero point calibration and system information memorization.

HINT:

• Acceleration sensor zero point calibration and system information memorization are automatically performed immediately after Dealer Mode (Calibration) is entered.
• If system information memorization has not yet been performed, the slip indicator light will remain on and DTC C124A00 will be stored.
• If acceleration sensor zero point calibration is not successful, the slip indicator light will remain on and DTC C051D54 will be stored.

(1) Turn the ignition switch off.

(2) Apply the parking brake.

(3) Check that the shift lever is in P.

(4) Connect the GTS to the DLC3.

(5) Turn the ignition switch to ON.

(6) Check that the steering wheel is centered.

(7) Turn the GTS on.

(8) Switch the skid control ECU (brake actuator assembly) to calibration using the GTS.

(9) Using the GTS, perform "Calibration" and enter Dealer Mode (Calibration).

(10) Confirm that the ABS warning light and slip indicator light indicate the Dealer Mode pattern (blinking at 0.25 second intervals).

HINT:

• After "Calibration" has successfully completed, the ABS warning light and slip indicator light indicate the Dealer Mode pattern (blinking at 0.25 second intervals).
• The slip indicator light may illuminate for approximately 7 seconds before learning successfully completes.
• When entering Dealer Mode (Calibration), if the parking brake is engaged, the parking brake indicator light (red) will illuminate, and if the parking brake is not engaged, the parking brake indicator light (red) will blink in the Dealer Mode pattern (blinking at 0.25 second intervals).

(11) Turn the ignition switch off.

(12) Disconnect the GTS.

ALL READINESS

HINT:

• With "All Readiness", you can check whether or not the DTC judgment has been completed by using the GTS.
• You should check "All Readiness" after simulating malfunction symptoms or for validation after finishing repairs.

(a) Turn the ignition switch off.

(b) Connect the GTS to the DLC3.

(c) Turn the ignition switch to ON.

(d) Turn the GTS on.

(e) Clear the DTCs even if no DTCs are stored. Enter the following menus:

Click here

(f) Press the DTC clear button.

(g) Turn the ignition switch off.

(h) Start the engine.

(i) Perform the DTC judgment driving pattern to run the DTC judgment.

(j) Enter the following menus:

(k) Input the DTC to be confirmed.

(l) Check the DTC judgment result.

If the judgment result shows Incomplete or N/A, perform the DTC confirmation driving pattern again.

INSPECTION MODE (WHEN USING GTS)

When testing with a 2-wheel drum tester such as speedometer tester, combination tester for the speedometer and brakes, or chassis dynamometer, or when jacking up the front wheels and turning the wheels, perform the following procedure to enter Inspection Mode and disable the TRAC and VSC systems.

CAUTION:

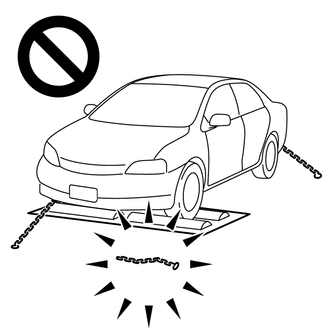

• Do not use the drum tester with any of the lock chains disconnected.
• Using the drum tester with a lock chain disconnected could cause the vehicle to begin moving unexpectedly.

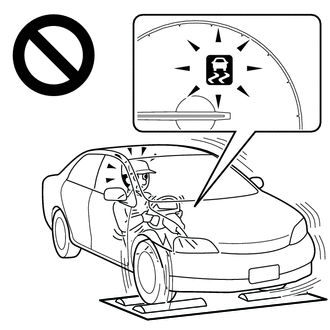

• Do not use the drum tester while the TRAC or VSC is able to operate.
• TRAC or VSC operation could cause the vehicle to begin moving unexpectedly.

HINT:

When the system is in Inspection Mode, TRAC and VSC are disabled.

(a) Activating Inspection Mode

NOTICE:

• Inspection Mode will be canceled when the ignition switch is turned off. Make sure to enter Inspection Mode again if the inspection is continued after the ignition switch is turned off.
• Never drive the vehicle while in Inspection Mode.

(1) Turn the ignition switch off.

(2) Connect the GTS to the DLC3.

(3) Turn the ignition switch to ON.

(4) Turn the GTS on.

(5) Enter the following menus:

(6) Check that the VSC OFF indicator light comes on and "Traction Control Turned Off" is displayed on the multi-information display (Confirm that the system has entered Inspection Mode).

HINT:

When entering Inspection Mode, the parking brake indicator light (red) will blink in the Dealer Mode pattern (blinking at 0.25 second intervals).

(b) End of Inspection Mode.

(1) Turning the ignition switch off ends Inspection Mode.

NOTICE:

If the ignition switch is turned to ON within 60 seconds of being turned off, the system will reenter Inspection Mode.

(2) Confirm that the VSC OFF indicator light turns off and the "Traction Control Turned Off" on the multi-information display is cleared (Confirm that Inspection Mode is canceled).

INSPECTION MODE (WHEN NOT USING GTS)

When testing with a 2-wheel drum tester such as speedometer tester, combination tester for the speedometer and brakes, or chassis dynamometer, or when jacking up the front wheels and turning the wheels, perform the following procedure to enter Inspection Mode and disable the TRAC and VSC systems.

CAUTION:

• Do not use the drum tester with any of the lock chains disconnected.
• Using the drum tester with a lock chain disconnected could cause the vehicle to begin moving unexpectedly.
• Do not use the drum tester while the TRAC or VSC is able to operate.
• TRAC or VSC operation could cause the vehicle to begin moving unexpectedly.

HINT:

When the system is in Inspection Mode, TRAC and VSC are disabled.

(a) Activating Inspection Mode

NOTICE:

• Inspection Mode will be canceled when the ignition switch is turned off. Make sure to enter Inspection Mode again if the inspection is continued after the ignition switch is turned off.
• Never drive the vehicle while in Inspection Mode.

(1) Perform steps "D" to "H" within 30 seconds.

(2) Ensure that the ignition switch is off and the engine is stopped (Step "A").

(3) Apply the parking brake (Step "B").

(4) Make sure that the shift lever is in P (Step "C").

(5) Start the engine (Step "D").

(6) Depress and release the brake pedal twice (Step "E").

(7) While holding the brake pedal down, release and apply the parking brake twice (Step "F").

(8) With the parking brake applied, depress and release the brake pedal twice (Step "G").

(9) Check that the VSC OFF indicator light comes on and "Traction Control Turned Off" is displayed on the multi-information display (Step "H").

HINT:

• If the VSC OFF indicator light does not come on and "Traction Control Turned Off" is not displayed on the multi-information display in step "H", repeat steps "A" to "H".
• When entering Inspection Mode, the parking brake indicator light (red) will blink in the Dealer Mode pattern (blinking at 0.25 second intervals).

(b) End of Inspection Mode.

(1) Turning the ignition switch off ends Inspection Mode.

NOTICE:

If the ignition switch is turned to ON within 60 seconds of being turned off, the system will reenter Inspection Mode.

(2) Confirm that the VSC OFF indicator light turns off and the "Traction Control Turned Off" on the multi-information display is cleared (Confirm that Inspection Mode is canceled).
