Toyota Corolla Cross: Ultrasonic Sensor (Front Left Center) Missing Message (C1AE287)
DESCRIPTION
This DTC is output when an open circuit or short occurs in the communication line between a front center ultrasonic sensor (FLC sensor) and the front corner ultrasonic sensor (FL sensor), or when a malfunction occurs in a front center ultrasonic sensor (FLC sensor) on the front.
|
DTC No. |
Detection Item |
DTC Detection Condition |
Trouble Area |
|---|---|---|---|
|
C1AE287 |
Ultrasonic Sensor (Front Left Center) Missing Message |
Front center ultrasonic sensor (FLC sensor) lost communication |
|

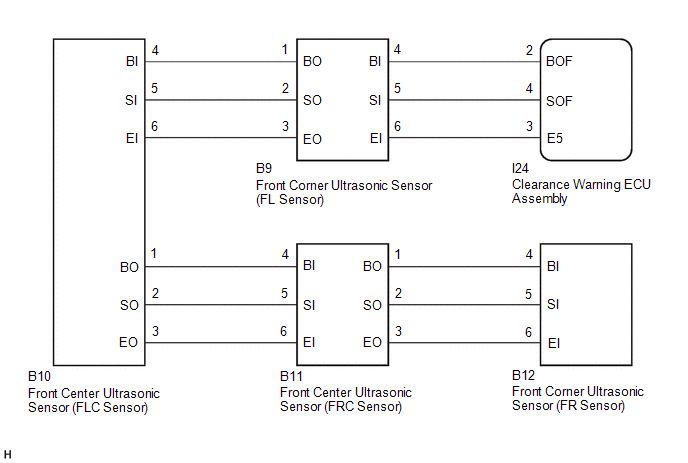

WIRING DIAGRAM
.png)
CAUTION / NOTICE / HINT
NOTICE:
- Perform registration after replacing or removing and installing the
ultrasonic sensor or clearance warning ECU assembly.
Click here
.gif)
- If a DTC is detected again after the repair, turn the ignition switch to ON and turn the intuitive parking assist system on, and then clear the DTC.
PROCEDURE
|
1. |
CHECK DTC |
(a) If DTC C1AE196 is output, perform troubleshooting for DTC C1AE196 first.
Body Electrical > Clearance Warning > Trouble Codes|
Result |
Proceed to |
|---|---|
|
C1AE196 is not output |
A |
|
C1AE196 is output |
B |
| B | .gif)
|
GO TO C1AE196 |
|
.gif)
|
2. |
VEHICLE CONDITION AND WORK DETAILS CHECK |
(a) Check the vehicle condition and work details.
|
Result |
Proceed to |
|---|---|
|
The clearance warning ECU assembly or ultrasonic sensor has not been replaced |
A |
|
The clearance warning ECU assembly or ultrasonic sensor has been replaced |
B |
| B |
|
GO TO CALIBRATION
|
|
|
3. |
CHECK CONNECTOR CONNECTION CONDITION (ULTRASONIC SENSOR) |
(a) Check that the connector is properly connected to the front corner ultrasonic sensor and front center ultrasonic sensor.
|
|
4. |
CLEAR DTC |
(a) Clear the DTCs.
Body Electrical > Clearance Warning > Clear DTCs
|
|
5. |
CHECK FOR DTC |
(a) Check for DTCs.
Body Electrical > Clearance Warning > Trouble Codes|
Result |
Proceed to |
|---|---|
|
DTCs are not output |
A |
|
C1AE287 is output |
B |
|
None of the above conditions are met |
C |
| A |
|
END (CONNECTOR CONNECTION MALFUNCTION) |
| C |
|
GO TO DTC CHART
|
|
|
6. |
CHECK CONNECTOR CONNECTION CONDITION (CLEARANCE WARNING ECU ASSEMBLY) |
(a) Check that the connector is properly connected to the clearance warning ECU assembly.
|
|
7. |
CLEAR DTC |
(a) Clear the DTCs.
Body Electrical > Clearance Warning > Clear DTCs
|
|
8. |
CHECK FOR DTC |
(a) Check for DTCs.
Body Electrical > Clearance Warning > Trouble Codes|
Result |
Proceed to |
|---|---|
|
DTCs are not output |
A |
|
C1AE187, C1AE287, C1AE387 and C1AE487 are output |
B |
|
C1AE287, C1AE387 and C1AE487 are output |
C |
|
C1AE387 and C1AE487 are output |
D |
|
C1AE487 is output |
E |
|
Only C1AE287 is output |
F |
|
None of the above conditions are met |
G |
| A |
|
USE SIMULATION METHOD TO CHECK |
| B |
|
GO TO DTC (C1AE187) |
| D |
|
GO TO DTC (C1AE387) |
| E |
|
GO TO DTC (C1AE487) |
| F |
|
GO TO STEP 10 |
| G |
|
GO TO DTC CHART
|
|
|
9. |
CHECK HARNESS AND CONNECTOR (FRONT CORNER ULTRASONIC SENSOR [FL SENSOR] - FRONT CENTER ULTRASONIC SENSOR [FLC SENSOR]) |
(a) Disconnect the B9 front corner ultrasonic sensor (FL sensor) connector.
(b) Disconnect the B10 front center ultrasonic sensor (FLC sensor) connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
|
Tester Connection |
Condition |
Specified Condition |
|---|---|---|
|
B9-1 (BO) - B10-4 (BI) |
Always |
Below 1 Ω |
|
B9-2 (SO) - B10-5 (SI) |
Always |
Below 1 Ω |
|
B9-3 (EO) - B10-6 (EI) |
Always |
Below 1 Ω |
|
B9-1 (BO) or B10-4 (BI) - Body ground |
Always |
10 kΩ or higher |
|
B9-2 (SO) or B10-5 (SI) - Body ground |
Always |
10 kΩ or higher |
|
B9-3 (EO) or B10-6 (EI) - Body ground |
Always |
10 kΩ or higher |
| NG |
|
REPAIR OR REPLACE HARNESS OR CONNECTOR |
|
|
10. |
REPLACE FRONT CENTER ULTRASONIC SENSOR (FLC SENSOR) |
(a) Replace the front center ultrasonic sensor (FLC sensor) with a known good one.
HINT:
- Click here
- All of the sensors are interchangeable. To confirm whether a sensor is functioning normally, switch it with a known good sensor from the other end of the vehicle.
|
|
11. |
CLEAR DTC |
(a) Clear the DTCs.
Body Electrical > Clearance Warning > Clear DTCs
|
|
12. |
CHECK FOR DTC |
(a) Check for DTCs.
Body Electrical > Clearance Warning > Trouble Codes|
Result |
Proceed to |
|---|---|
|
DTCs are not output |
A |
|
C1AE287 is output |
B |
|
None of the above conditions are met |
C |
| A |
|
END (FRONT CENTER ULTRASONIC SENSOR [FLC SENSOR] WAS DEFECTIVE) |
| B |
|
REPLACE CLEARANCE WARNING ECU ASSEMBLY
|
| C |
|
GO TO DTC CHART
|
