SYSTEM DIAGRAM

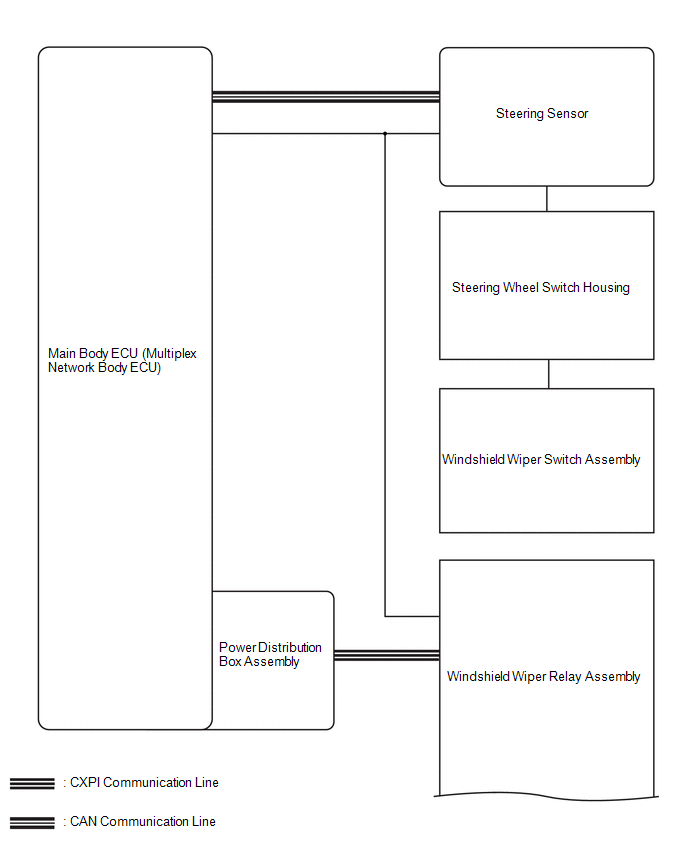

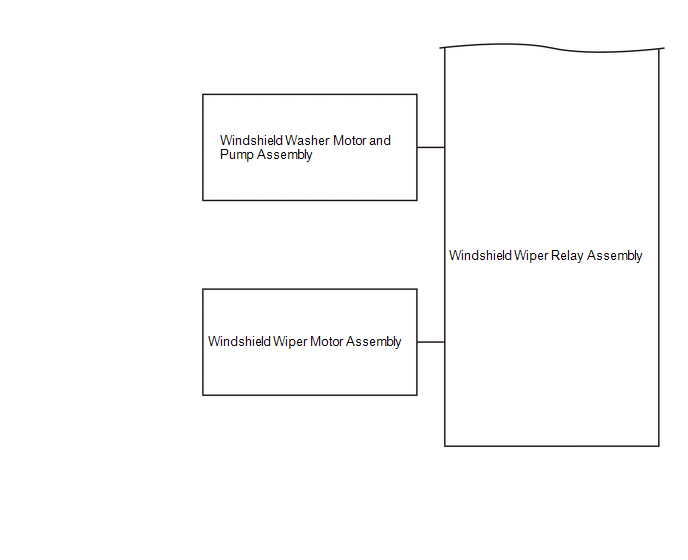

FRONT WIPER AND WASHER SYSTEM

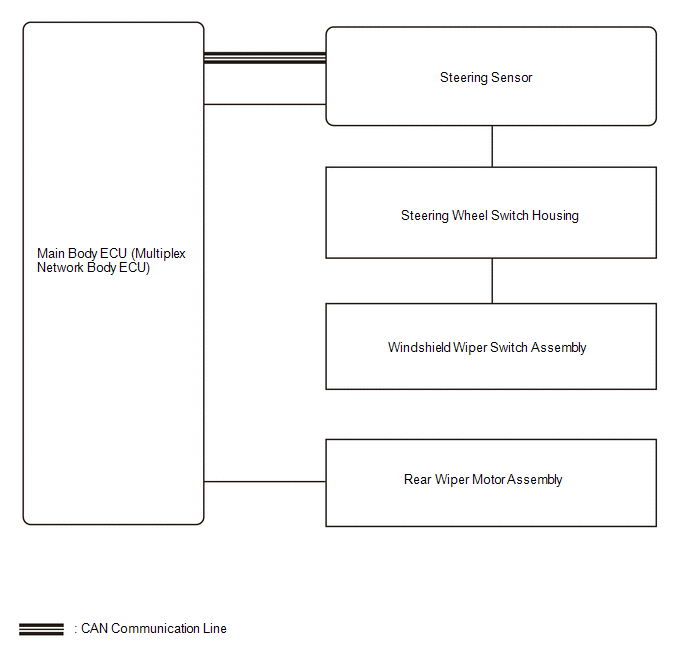

REAR WIPER SYSTEM (w/ Rear Wiper System)

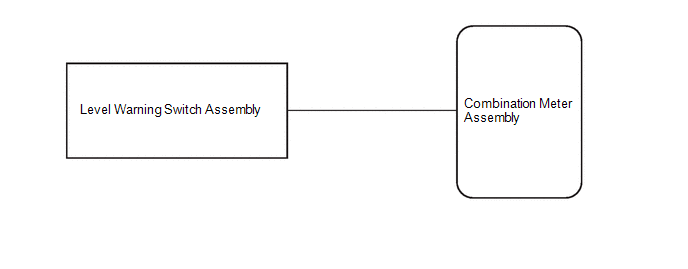

WASHER FLUID LEVEL WARNING SYSTEM (w/ Level Warning Switch)
READ NEXT:
System Description
SYSTEM DESCRIPTION FRONT WIPER CONTROL FUNCTION
Control/Function Description
INT function*1 Operates the wipers intermittently at LO speed when the front wiper switch is in the INT po
How To Proceed With Troubleshooting
CAUTION / NOTICE / HINT
HINT:
Use the following procedure to troubleshoot the wiper and washer system.
*: Use the GTS.
PROCEDURE
1. VEHICLE BROUGHT TO WORKSHOP
NEXT
Operation Check
OPERATION CHECK CHECK INTERMITTENT CONTROL FUNCTION
(a) Turn the ignition switch to ON. (b) Move the front wiper switch to the INT position.
(c) Check that the intermittent operation interval can be
